Installing the C2RPS-POE on a Flat Surface
2-4 Installation
Guidelines for Installation
Locate the C2RPS‐POE within 152 cm (5 ft) of its power source and on a surface as shown
in
Figure 2‐2 .
If the switch is being installed as a standalone switch, proceed to “ Connecting
C2RPS‐POE Cable and AC Power Cord ” on page 2‐7 for power connection instructions.

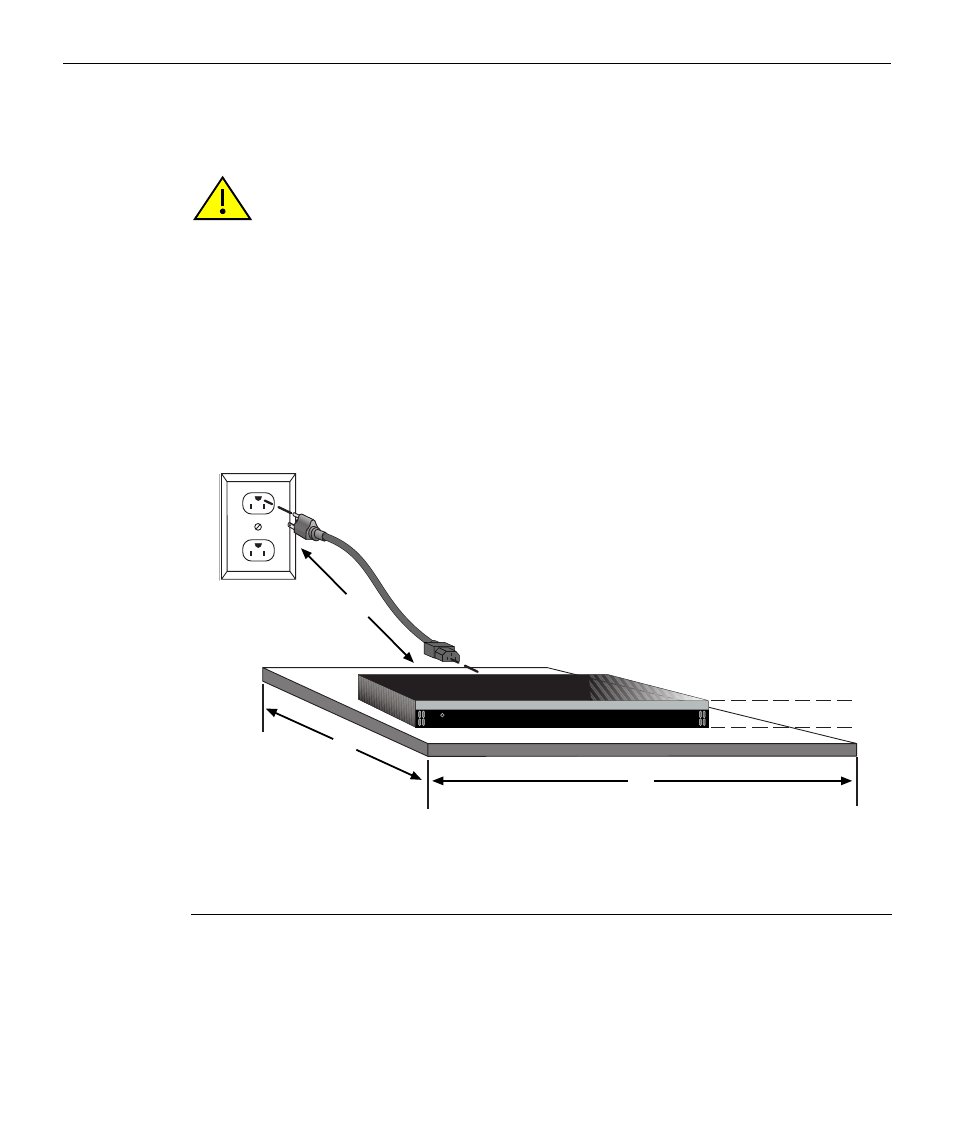

Figure 2-2 Area Guidelines for C2RPS-POE Installation on Flat Surface
Caution: To ensure proper ventilation and prevent overheating, leave a minimum
clearance space of 5.1 cm (2.0 in.) at the left, right, and rear of the switch.
Do not connect the switch to the AC power source until instructed to do so later in the
installation process
Precaución: Para asegurar una buena ventilación y evitar que el sistema se
sobrecaliente, deje un espacio mínimo de 5.1 cm (2 pulgadas) con respecto a los lados y
a la parte posterior del aparato..
No conecte la fuente del poder a la fuente primaria hasta que no se le indique.
1 Approximately 152 cm (5 ft) from power source 3 49.5 cm (19.5 in.) for proper ventilation
2 4.45 cm (1.75 in.) per C2RPS-POE (Vertical
clearance depends on number of devices
stacked.)
4 21.5 cm (8.5 in.) for proper ventilation
C2RPS-POE
