Rack Mounting the C2RPS-POE
2-6 Installation
Attaching Brackets and Installing in Rack
Proceed as follows to install the switch into a 19‐inch rack:
1. Attach the rackmount brackets to the switch, as shown in Figure 2‐3 , using the eight
M3 x 6 mm flathead screws shipped with the switch.

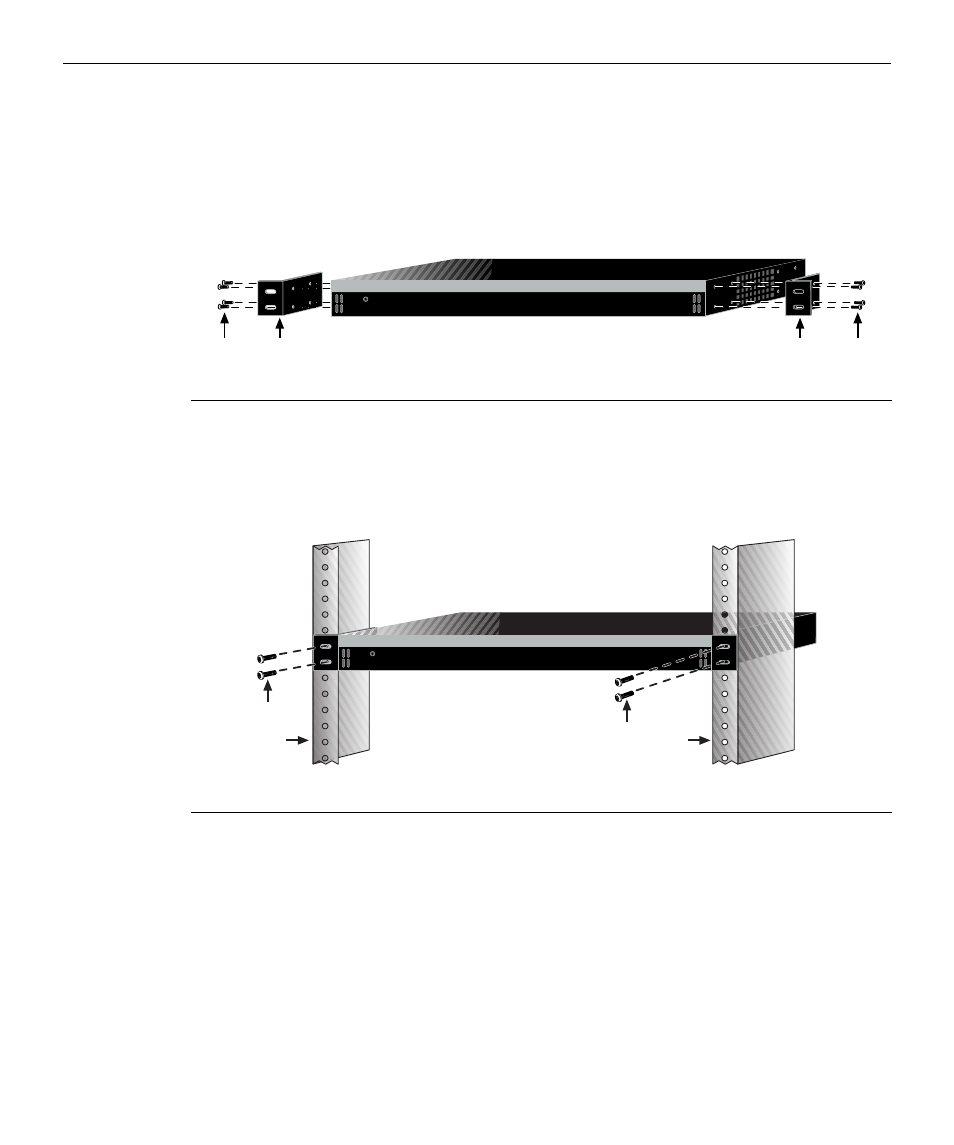

Figure 2-3 Attaching the Rackmount Brackets
2. With the mounting brackets attached, position the switch between the vertical frame
members of the 19‐inch rack as shown in
Figure 2‐4 . Then fasten the C2RPS‐POE
securely to the frame using four mounting screws (user supplied).
Figure 2-4 Fastening the C2RPS-POE to the Rack
3. If you are installing the C2RPS‐POE in a stacked configuration, repeat this procedure
for each C2RPS‐POE, then proceed to “
Connecting C2RPS‐POE Cable and AC Power
Cord ” on page 2‐7.
1 Rackmount brackets (2) 2 M3 x 6 mm flathead screws (8)
1 Rails of 19-inch rack 2 Mounting screws (supplied by user)
Б А Б А
C2RPS-POE
POWER
C2RPS-POE
POWER
А
Б
Б
А
