If your image colors appear incorrect, you may need to change the Input Signal setting in the projector's
Signal menu.
Parent topic:
Related references
Input Signal Settings - Signal Menu

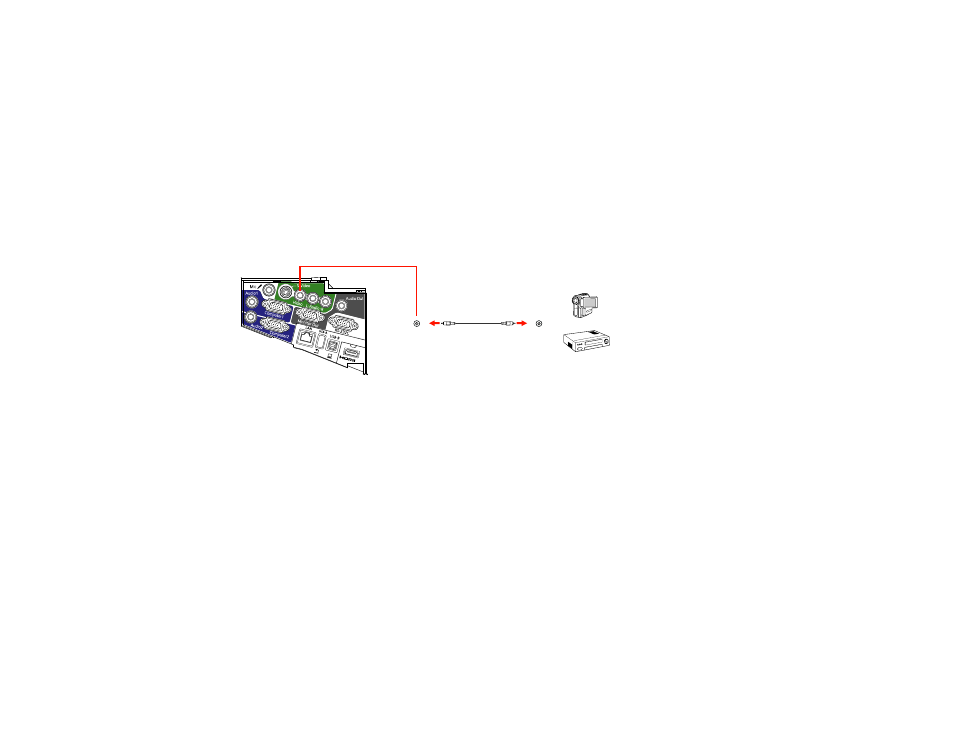

Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the projector using an optional
RCA-style video or A/V cable.
1.
Connect the cable with the yellow connector to your video source's yellow video output port.
2.
Connect the other end to the projector's Video port.
Parent topic:
Connecting to an S-Video Video Source
If your video source has an S-Video port, you can connect it to the projector using an optional S-Video
cable.
1.
Connect the S-Video cable to your video source's S-Video output port.
