PS 123 12 VDC, 3 Amp Power Supply • User's Guide

PS 23, cont’d

PS 123 12 VDC, 3 Amp Power Supply • User's Guide

W

Installation and service must be performed by a

qualified electrician only.

C

A UL listed electrical distribution box is

recommended for the termination of the conduit

opposite the PS 123 power supply. See "UL

requirements," below.

UL requirements

The Underwriters Laboratories (UL) requirements listed below

pertain to the installation of the flexible conduit onto a PS 123

power supply.
• This unit is not to be used beyond its rated voltage range.
• This unit must be wired to a UL listed distribution box.

N

The UL approved electrical distribution box is not

included with either the PS 123 power supply or the

Flexible Conduit Adapter Kit; the installer is responsible

for obtaining and installing the box.

• This unit must be installed in accordance with the National

Electrical Code and with all local codes.

Installing the flexible conduit cable

Install the flexible conduit cable assembly to the PS 123 as

follows:
1

.

Unplug the IEC power cord.

2

.

Remove and retain the two Phillips head screws that

secure the EMT plate (figure 3, below) to the PS 123 rear

panel.

OUTPUTS

RED-
OVERLOAD

12 VDC TOTAL OUTPUT 3A

100-240 50/60Hz 1A MAX.

Remove two screws.

EMT Plate

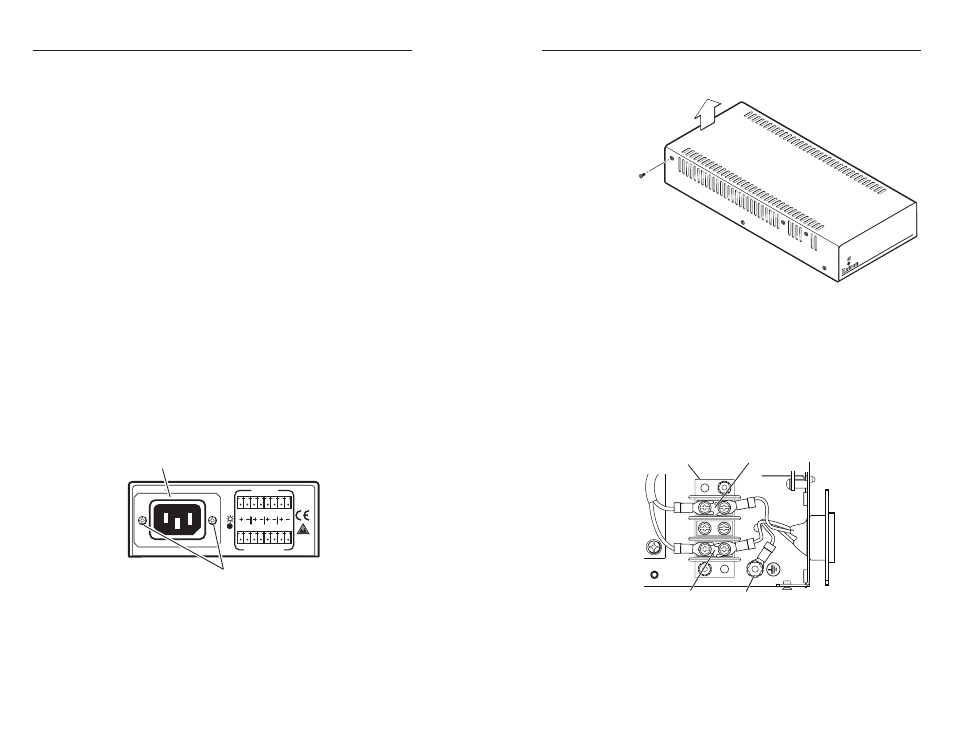

Figure 3 — Removing the EMT plate

3

.

Remove and retain the six screws that connect the top

cover of the PS 123 to its bottom board (figure 4, on the

next page).

RE

D-O

VE

RL

OA

D

P/S

123

12 V

DC

3A

PO

WE

R S

UPP

LY

Remove three
screws on
each side.

Lift the cover
straight up.

Figure 4 — Removing the top cover

4

.

Carefully

lift the top cover up, taking care not to remove it

completely.

C

Rough handling of the top cover can tear the wiring
that connects the front panel LED.

5

.

Use the Phillips head end of an Extron Tweeker or a small

standard screwdriver to loosen the screws holding the hot

and neutral wires on the side of the terminal block nearest

the EMT plate opening (figure 5).

Hot Terminal

Neutral Terminal

Ground Wire Nut

Terminal Block

Figure 5 — Terminal block and IEC wiring

6

.

Unscrew the EMT plate ground wire from the ground wire

nut

on the bare metal bottom of the PS 123 enclosure.
