DHG1166X - DHG1167X Models

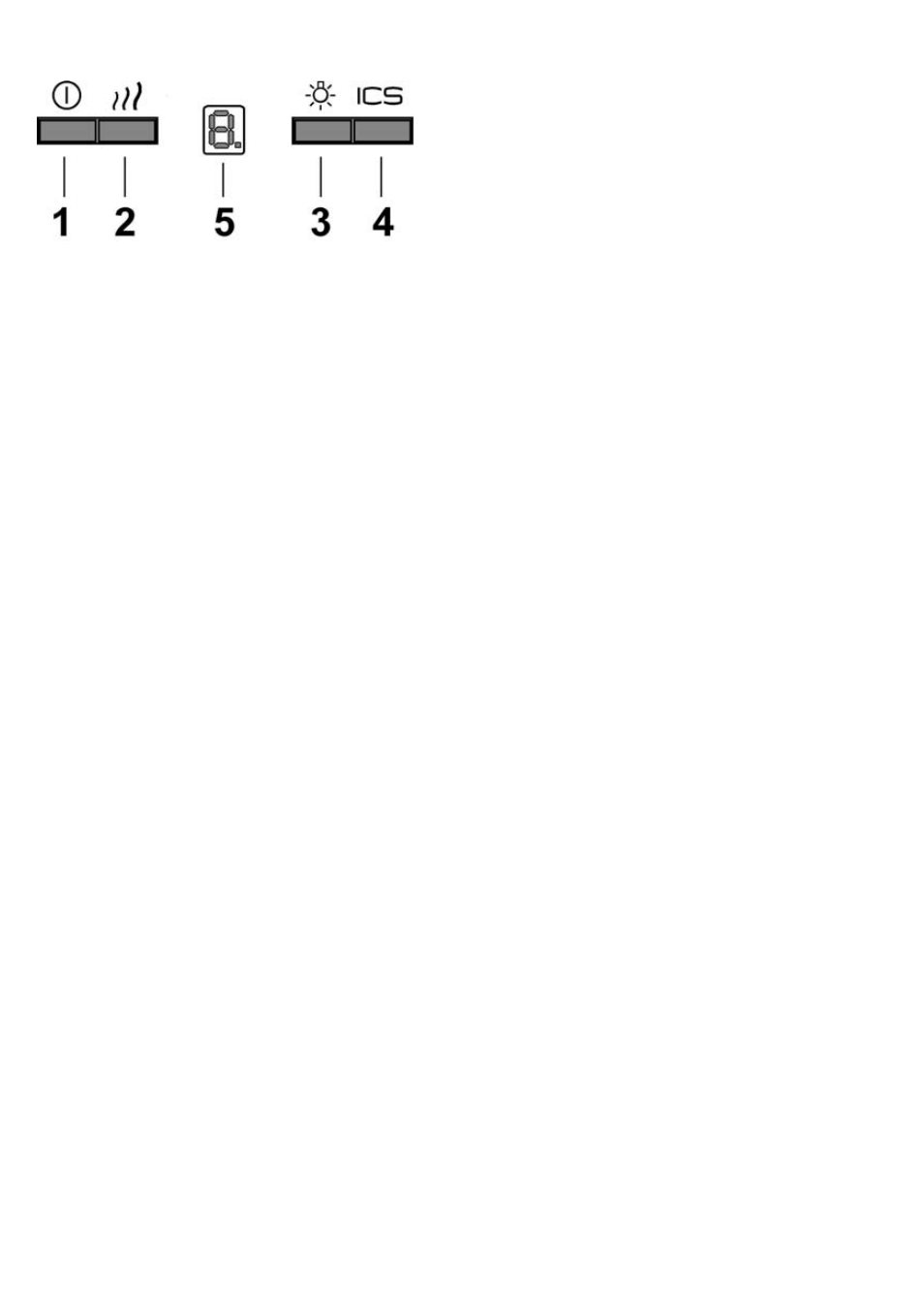

1 ON/OFF Motor
By pressing the push-button the cooker hood is started at
speed 1.
By pressing the push-button during working the cooker
hood turns OFF.
2 Speed increase / Speed timing
By pressing the push-button the cooker hood turns ON to
speed 1.
By pressing the push-button (while ON) the speed
changes as follows:
Speed 1: "1" appears on display
Speed 2: "2" appears on display
Speed 3: "3" appears on display
Intensive speed: "3" flashes on display
The intensive speed is timed. The standard timing is 5’
and at the end of it the cooker hood passes to speed 2.
To deactivate the function before the cycle is finished,
press the push-button 2, the cooker hood will pass to
speed 1, by pressing the push-button 1 the cooker hood
will turn OFF.
3 ON/OFF lights
4 ON/OFF sensor
5 Display
6 Sensor
Speed timing
The speed timing is activated by pressing the push-button 2
for 2”, when the timing cycle is finished the cooker hood will
turn off.
The timing is subdivided as follows:
Speed 1, 20 minutes ("1" + a flashing dot appears on display)
Speed 2, 15 minutes ("2" + a flashing dot appears on display)
Speed 3 ,10 minutes ("3" + a flashing dot appears on display)
Intensive speed, 5 minutes ("4" + a flashing dot appears on
display)
During the timed working, by pressing the push-button 1, the
cooker hood turns OFF; if you press the push-button 2 the
cooker hood will return to the set speed, if you press the push-
button 4 the cooker hood will pass to COOKING Mode.
Grease filter signalling
After a total of 80 working hours number "1" starts to flash on
display.
When this signal appears, the installed grease filter needs
washing.
To reset the signal keep the push-button 1 pressed for 3” until
number "1" disappear from diplay.
Carefull read and follow the Maintenance instruction of the
filter.
Charcoal filter signalling
After a total of 320 working hours number "2" starts to flash
on display.
When this signal appears, the installed charcoal filter needs to
be cleaned or replaced (according the model you own).
To reset the signal keep the push-button 1 pressed for 3” until
number "1" disappear from diplay.
Carefull read and follow the Maintenance instruction of the
filter.
In case of contemporaneous signalling of both filters, numbers
"1" and "2" will flash on display alternatively.
To reset, carry out the above described procedure twice.
The first time it resets the grease filter signalling, the second
time it resets the charcoal filter signalling.
In the standard mode the carbon filter signalling is not active.
In case the filter version cooker hood is used, it is necessary
to activate the carbon filter signalling.
Carbon filter signalling activation:
Turn OFF the hood and keep the push-buttons 2 and 3
pressed contemporaneously for 3”.
Numbers "1" and "2" will flash alternatively on display for 2”.
Carbon filter signalling deactivation:
Turn OFF the hood and keep the push-buttons 2 and 3
pressed contemporaneously for 3”.
Number "1" will flashes on display for 2”.
Automatic function
The system is set by default in manual mode, to activate
automatic mode press pudh-button 4.
The system envisages the automatic function in two modes:
- COOKING Mode that guarantees the correct suction of
fumes during cooking.
- AIR QUALITY CONTROL Mode that is a monitoring system
that guarantees a high level of air quality.
The 2 modes are activated cyclically pressing pudh-button 4.
COOKING Mode: letter "C" appears on display.
During cooking the system reacts promptly to increases in
Steam/Fumes and remains in the speed established for at
least a minute before returning to the lower speed/switches
off.
When cooking is finished and the environmental parameters
have returned to the levels preceding cooking, the system
turns itself off.
The system turns the hood off after 30 minutes if the
parameters are close to the stand-by condition.
AIR QUALITY CONTROL Mode: letter "A" appears on
display.
The system reacts promptly to increases in Steam/Fumes and
remains in the speed established for at least a minute before
returning to the lower speed/switches off.
When the effect of the Steam/Fumes ends and the
environmental parameters have returned to the levels
