Whelen G1PA - Manual (Page 3)

Page 3
WIRE EXIT HOLE HERE
FRONT OF
LIGHTBAR
4”
CENTER
MOUNT
OPTIONAL
MOUNTING
MOUNTING
HOLES
9¾”
12¾”
BLACK (NEGATIVE) GROUND (-)
RED (POSITIVE) POWER (+)
15 AMP FUSE
(CUSTOMER
SUPPLIED)
SP/ST SWITCH
(CUSTOMER
SUPPLIED)
BLACK
#8 SHEET
METAL
SCREW
HOLE FITS ONTO
MOUNTING BOSS
ON BASE
INTERNAL WIRING / 2 ROTATORS with DIAMOND MIRRORS
WHITE
RED
BLACK
WHITE
RED
#8 SHEET
METAL
SCREW
BLACK
BLACK
HOLE FITS ONTO
MOUNTING BOSS
ON BASE
(+)
Battery
(-)
All customer supplied wires that connect to the positive
terminal of the battery must be sized to supply at least
125% of the maximum operating current and FUSED at the
battery to carry that load. DO NOT USE CIRCUIT
BREAKERS WITH THIS PRODUCT!
Changing a Rotator Bulb:
1. Remove the 2 dome screws at each end of the lightbar and remove the dome.
2. After the bulb has completely cooled off, remove the old bulb by removing the
retaining clip then pulling the bulb straight up and unplugging it from its wire. If the
rotators reflector is in the way you may move it by turning the worm gear on the
motor.
WARNING! Turn the reflector by the motor or worm gear only or you will
damage the reflector.
WARNING! Do not touch the glass on the new bulb.
3. Plug the new bulb into the white wire and insert it into the lamp socket as shown
then replace the retaining clip. Reassemble the lightbar and confirm proper
operation of the rotator.

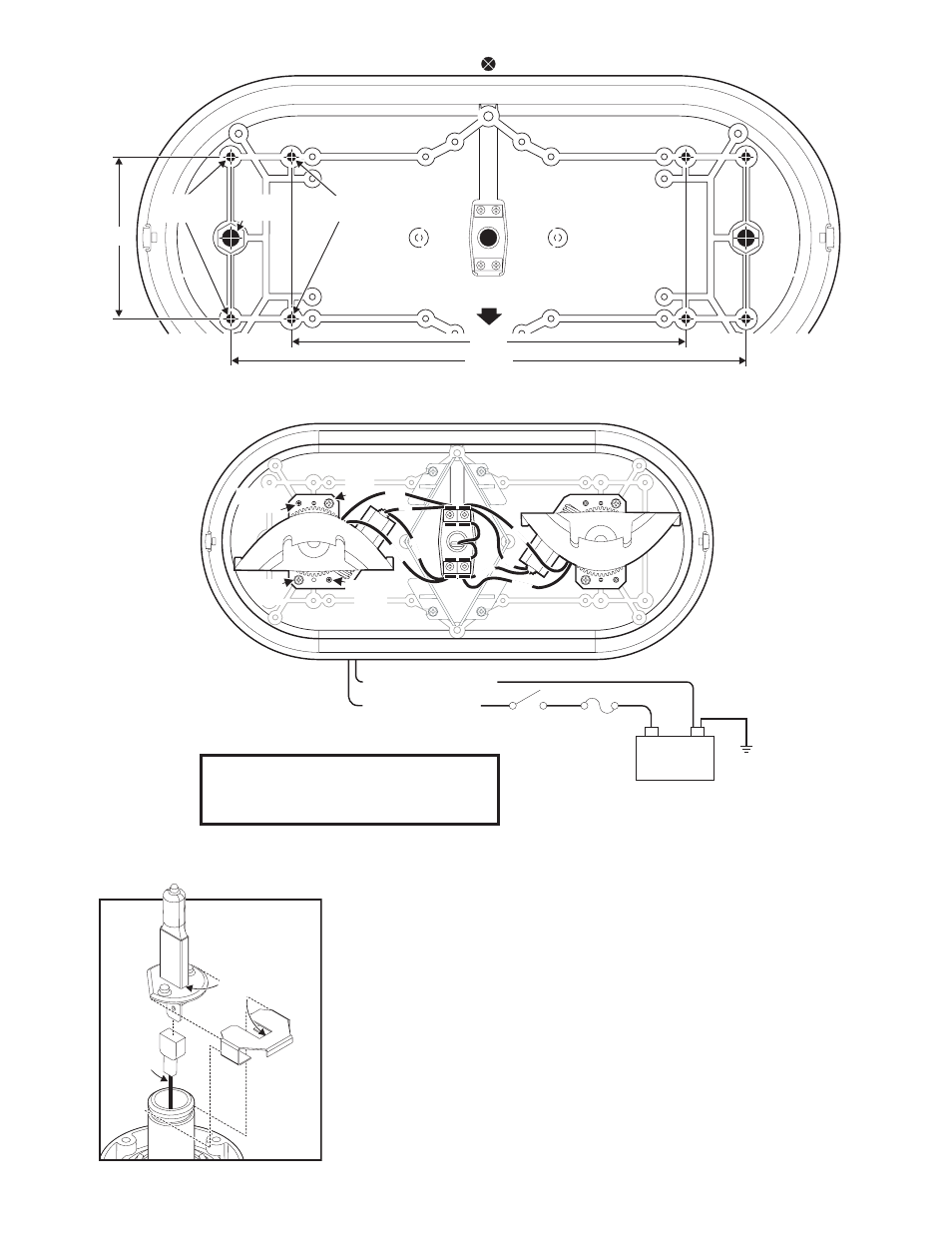

Fig. 3:
Wiring
Fig. 2:
Mounting Holes
WHITE
W I R E
Retainer Clip must be
fully seated against
lamp body.
Fig. 4:
Lamp Installation
