Vibration:
(non-operating 1 hour on each of three axes,
Power Supply is fixed on its bottom side)
5-10 Hz., 10mm amplitude, 10-200 Hz., 64.3ft./s
2
( 19.6M/s
2
)
1) 2 mV typ,4mV maximum for the 3.3 volt Model
2) 10mV typ,15mV maximum for the 3.3 volt Model
Shock:
(non-operating, 1/2 sine pulse, three shocks
on each axis, Power Supply is fixed
on its bottom side)
964.6ft./s
2
(294M/s
2
), 11ms ± 5 msec pulse duration
Input Transient:
The RCW Power Supply (with a 50 ohm termination) should operate trouble free
when a 1us, 2K Volt, 50–60 Hz input is applied between the input and ground ter-
minals.
EMI Conducted:
FCC Class A
Safety:
UL 1950 Recognized, CSA Electrical Bulletin 22.2, No. 234, Level 5 Certified and
EN 60 950 (TUV) Approved, CE marked per Low Voltage Directive (LVD)
Remote Error Sensing:
The RCW 1500W Power Supply will compensate up to 0.15 Volts max per load
wire for the RCW 3.3-300K, and up to 0.25 Volts per load wire for the RCW
5-300K, and up to 0.4 Volts per load wire for all other RCW Models (see Figure 5).
Remote Control ON/OFF:
"High", 2.4V to 24V (or open), unit ON
"Low", 0.0V to 0.4V (or closed), unit OFF- Fan Off
Source current is 1.6mA maximum
The (±)RC terminals are isolated from the AC input terminal and the DC output
terminals. Under normal conditions the (±)RC terminals are high, so when the
function is not used the terminals should be left open.
Power Factor
0.99 typical, satifies EN61000-3-2 Requirements
Dimensions:
4.33 in. (110 mm) x 7.99in. (203 mm) x 8.66 in. (220 mm)
Mounting:
No. M4x8 tapped holes
Maximum Screw Penetration:
0.24 in. (6 mm)
Cooling:
Forced air flow - two fans
Frame Material/Cover Material:
Aluminum
Weight:
16.53lbs. (7.5 Kg)

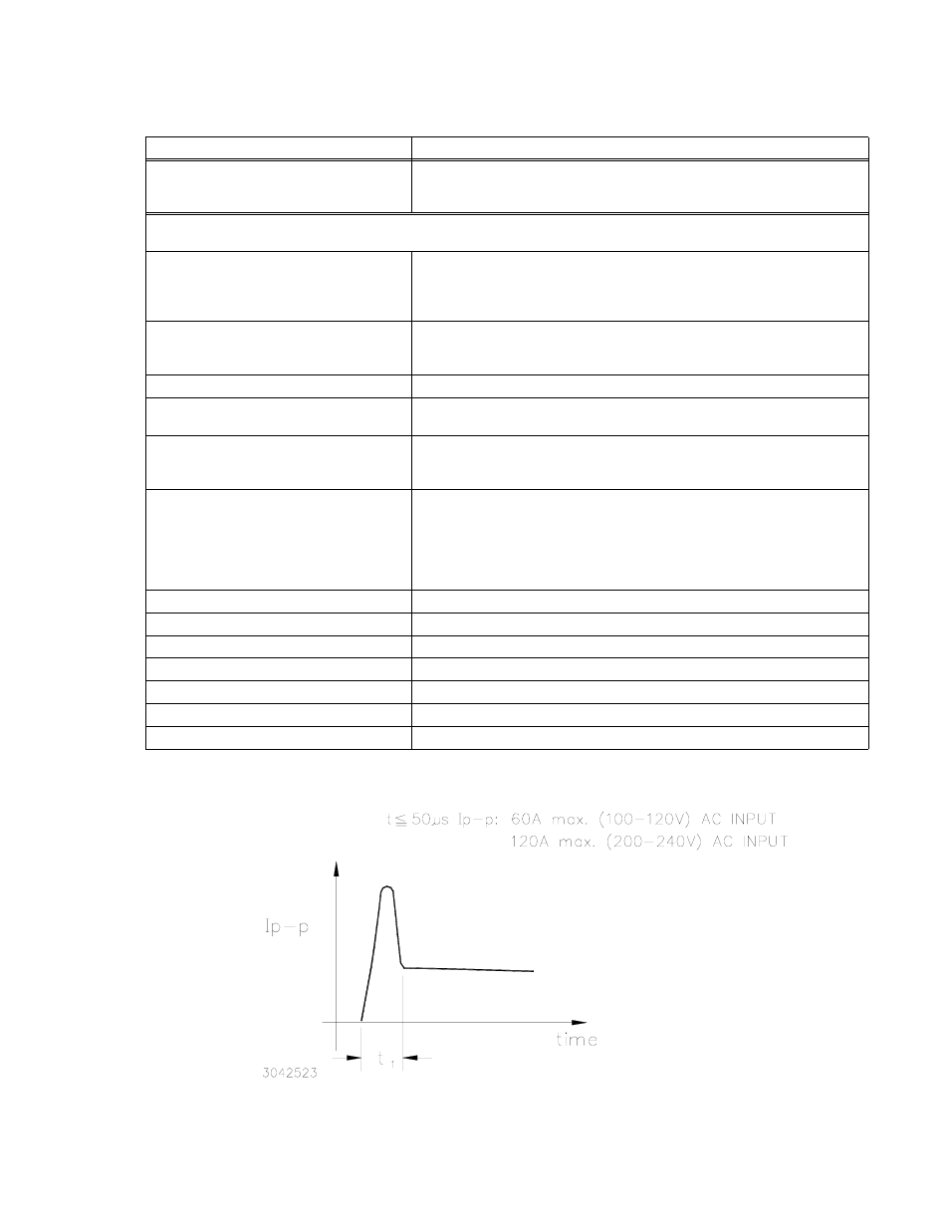

TABLE 2. POWER SUPPLY RATINGS AND SPECIFICATIONS (CONTINUED)
SPECIFICATION
DESCRIPTION
