Connecting to a PC
Follow these steps to connect the camera to a PC:
1. Make sure the camera and your computer are turned
off. Also make sure the LCD monitor is turned off.
2. Locate a serial port on the back of your computer. You
may have two serial ports labelled COM1 and
COM2, or with icons. If you have two serial ports
available, use port 1 to connect your camera.
3. Line up the serial connector on the cable with one
of the serial ports on your computer, and insert the
connector. Then tighten the screws.
4. Open the connector cover on the side of the camera.
5. Depending on the type of cable you have, line up
either the arrow or the flat surface of the cable
connector with the mark on the camera’s serial port.
Then insert the connector.

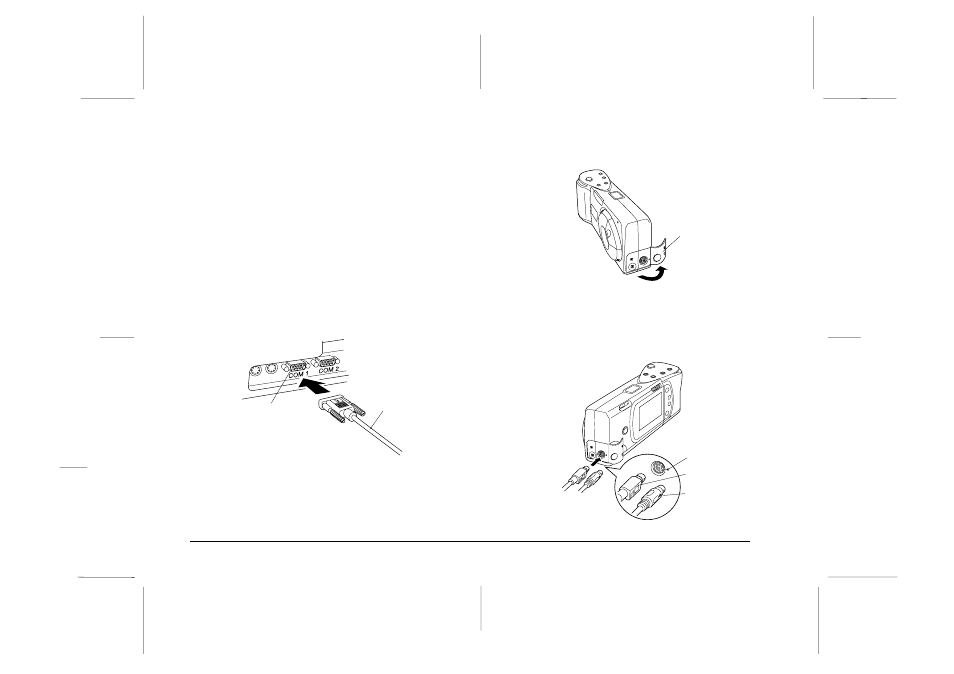

serial cable
(long cable)
serial port on computer
connector cover
mark
flat surface
arrow surface
or
