Quick Guide for DG4000 18
User Interface

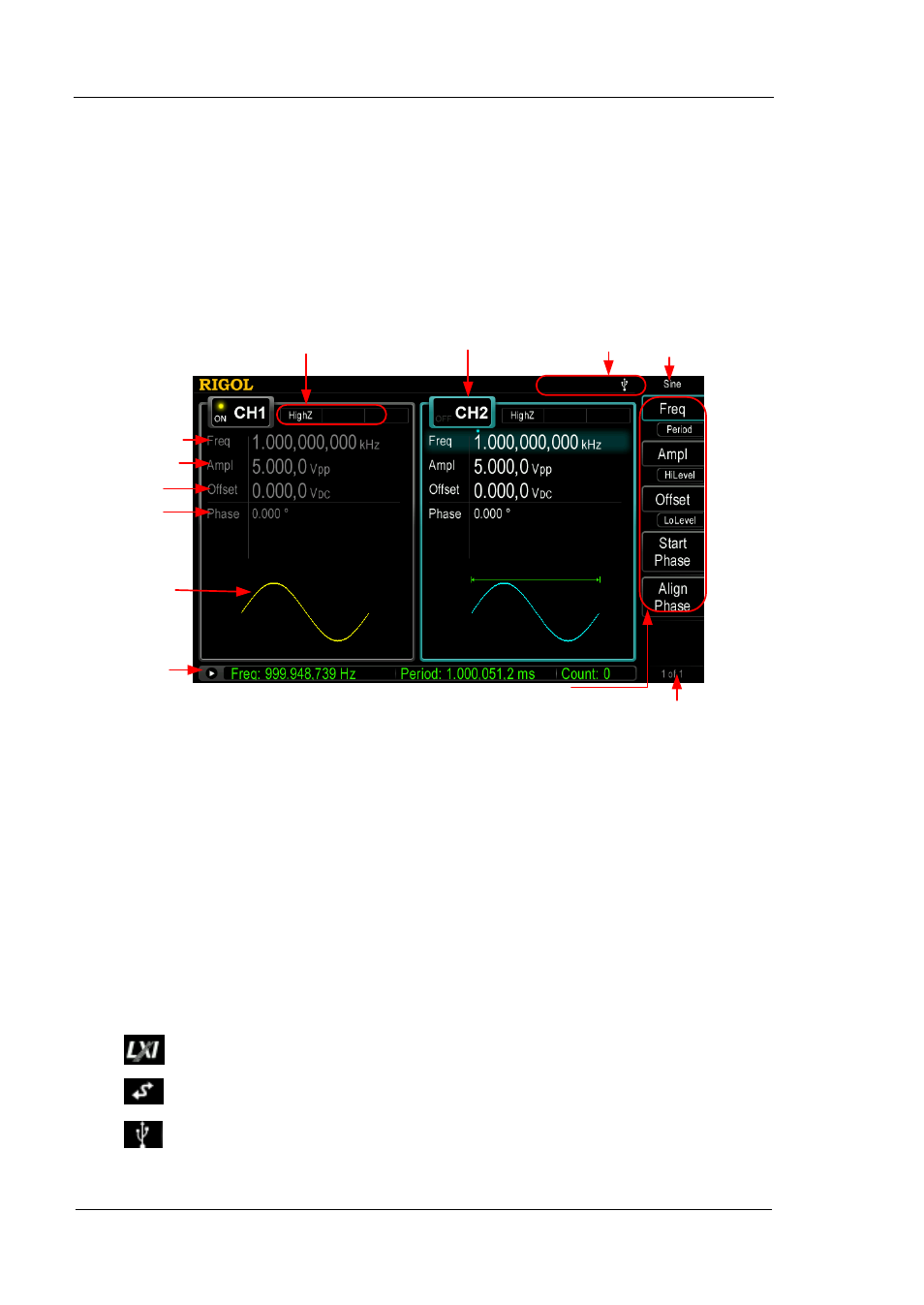

DG4000 user interface displays the parameters and waveforms of the two channels
at the same time. The figure below is the interface when both CH1 and CH2 select
Sine. Different contents will be displayed when different functions are enabled.
2. Status Bar 1. Current
Function
12. Menu Page Number
3. Channel State 4. Channel Configuration
5. Frequency
6. Amplitude
7. Offset
8. Phase
9. Waveform
10. Counter
11. Menu
Figure 9 User Interface
1. Current Function
Display the name of the function currently selected. For example, “Sine”
indicates that “Sine” waveform function is currently selected and “ArbEdit”
indicates that “Arbitrary Waveform Edit” function is currently selected.
2. Status Bar
The following indicators would be displayed according to the current
configuration.
When the instrument is connected into LAN successfully, this indicator
will light.
When the generator works in remote mode, this indicator will light.
When the generator detects connected USB storage device, this
indicator will light.
