MTP U R Series • Installation 15

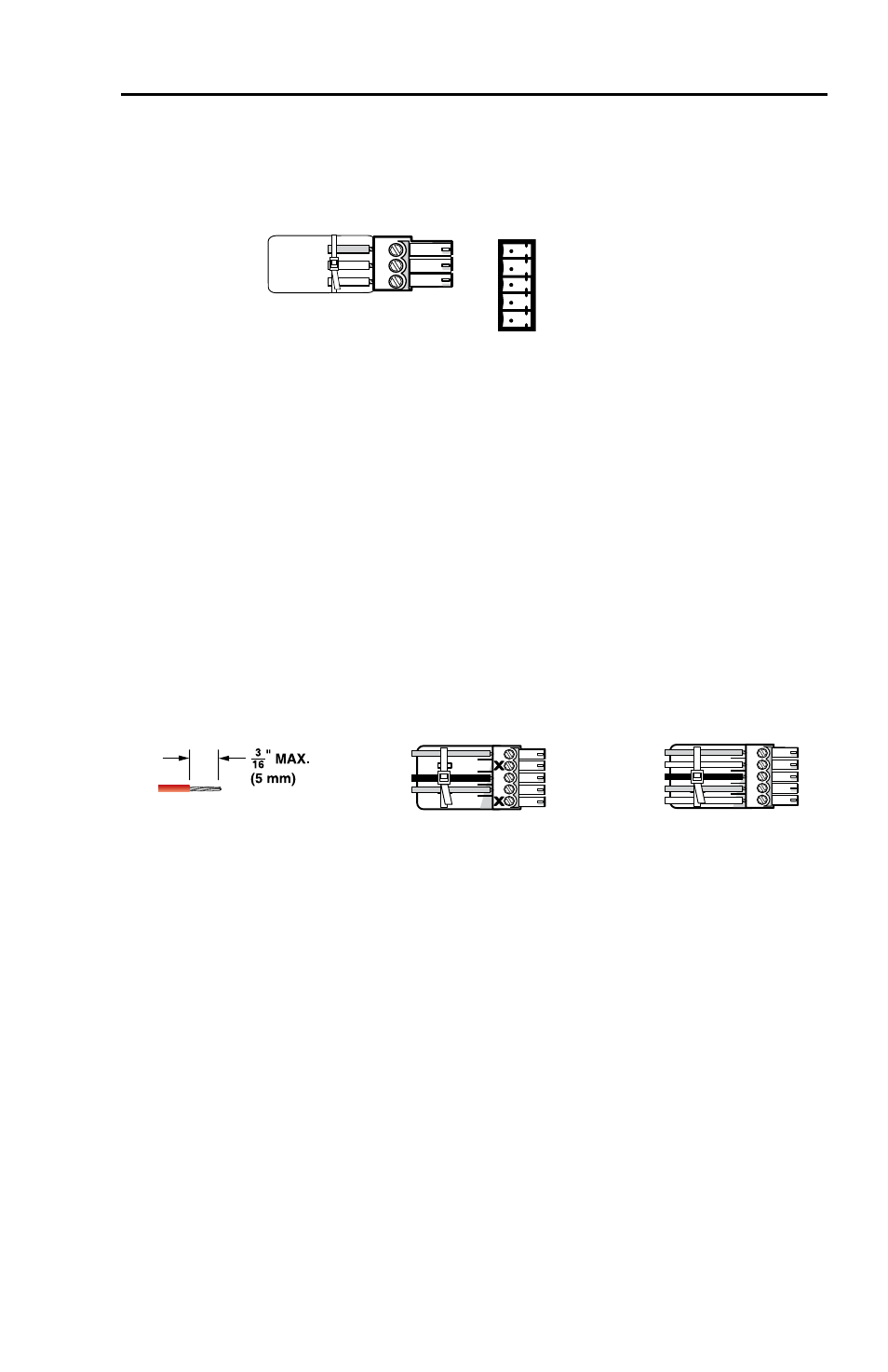

g RS-232 connector — Connect a serial communications port to
this 3.5 mm, 5-pole captive screw connector for bidirectional
RS-232 communication. Wire the connector as shown below.
Ground
Tx
Rx
Gnd
Receive
Transmit
Connected RS-232
Device Pins
MTP
Pins
Spare
Spare
Figure 14 — Pin assignments for RS-232 wiring
N
To set the connector for unidirectional communication,
see “Setting JMP1 for RS-232 communication”.
Set up the receiver for unidirectional communication
when it is to be used with an MTP DA to avoid any
RS-232/Audio detection issues.
When with an MTPX Matrix Switcher, set up the
receiver for unidirectional for transmitter to receiver
communication; otherwise it should be set to
bidirectional when using the RS-232 output insert
connections on the matrix.
h Audio connector (MTP U R RSA SEQ and MTP U R A models
only) — Connect a suitable audio device to this 5-pole captive
screw connector for mono audio output.
L
MONO A
UDIO
R
L
MONO A
UDIO
R
Unbalanced Output Balanced Output
Do not tin the wires!
Mono output 1-
Sleeve(s)
Mono output 1+
Mono output 2+
Mono output 2-
Sleeve(s)
Mono output 1
Mono output 2
NO GROUND.
NO GROUND.
Figure 15 — Audio connector wiring
