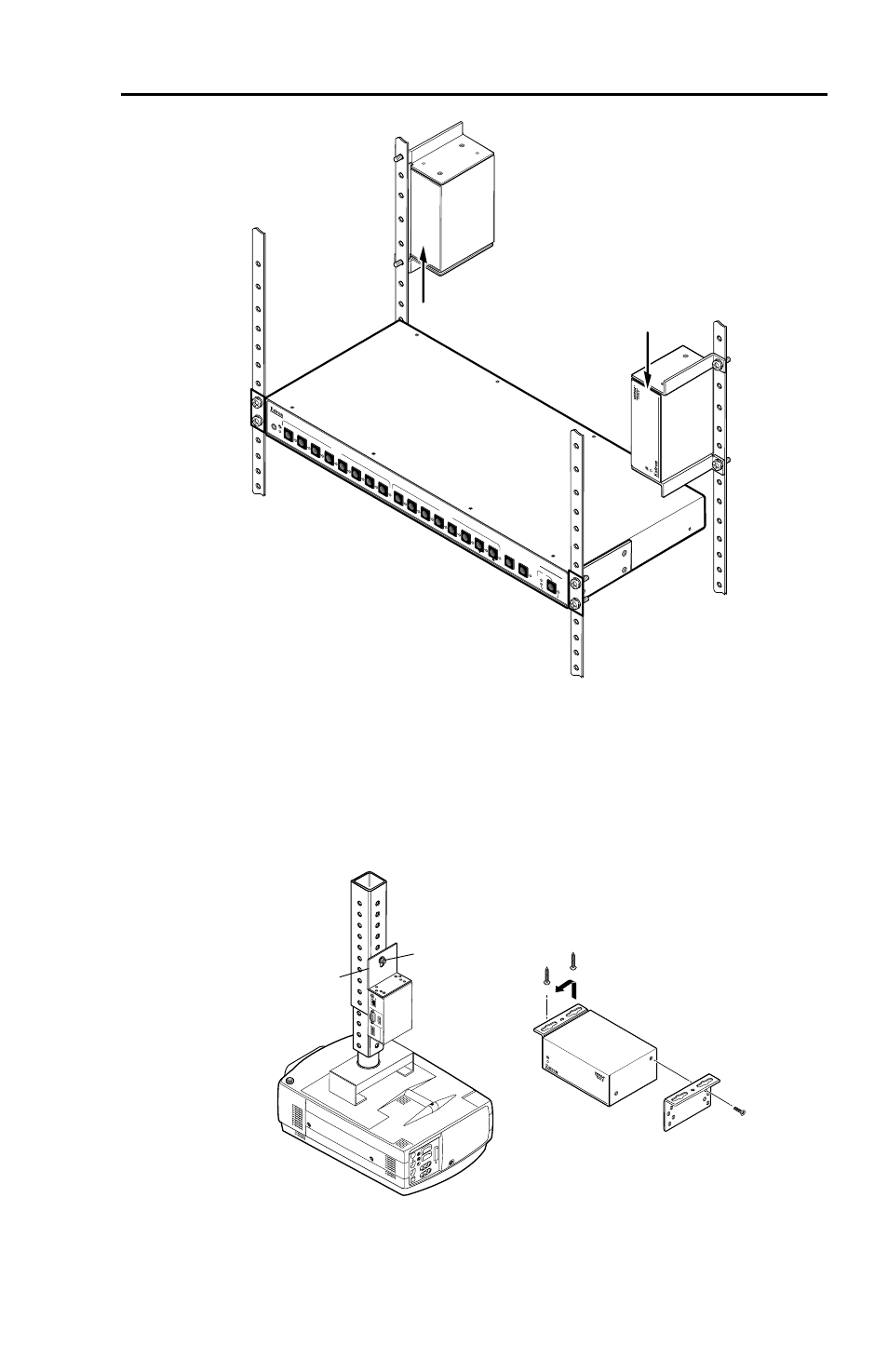

Figure 11 — Typical back of the rack installations
Furniture or projector mounting
Use the optional mounting kit (MBU 123, furniture,
part #70-212-01, or PMK 100, projector, part #70-217-01) to mount
the MTP as follows:
MT P S ER IE S
IN P U T
O U T P U T
P O W E R
12 V .5 A M A X
M T P R 1 5 H D A
ON 1 2 3 4 5 6 H SY NC + V SY NC + C SY NC SOG VID EO SPA RE
1 MO N O A U D IO 2
Projector
Projector
Mounting
Bracket
Mounting
Bolt
Figure 12 — Desk and projector mounting the MTPs
