Each

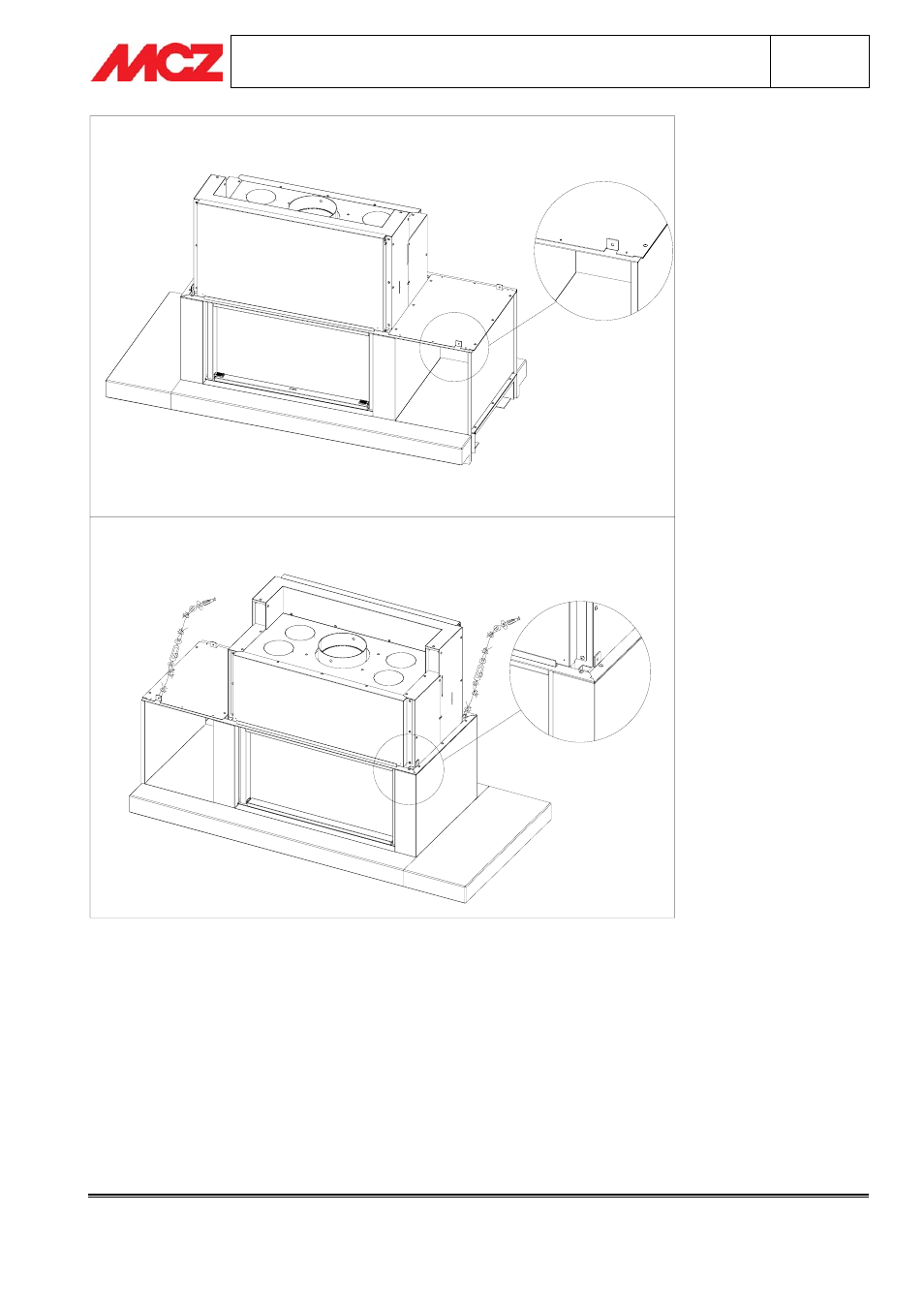

front profile must be flush with the compartment side and insert in the side profile (specially shaped).
Installation of the Gaudi’ cladding is completed by anchoring the
front profiles and the side profile to the top and
then all of the structure upon which the hood will rest.
Fasten the profiles with the 4 steel ties provided. Anchor the ties to the ceiling as vertically as possible (pay
attention to the hold, considering the weight of the hood) and adjust the level of tension using the tensioner.
