13 - MENU INFORMATION
Technical Dept. - All rights reserved - Reproduction is prohibited
STOVE STATE-INFORMATION
This menu is particularly useful if one wants to verify the stove work condition (State).
From the OFF screen, press the "E" Menu button, scroll with the "D" arrow key, up to the Information item, press the ok "E" key, scroll again
with the "D" arrow key up to stove state, press OK with the "E" key and one enters the stove State-information menu.
The items available within STOVE-STATE INFORMATION can be viewed using the "C" and "D" arrow keys and are:
state
water temp.
set
aux sensor set
active+ set
fumes fan set
feed screw set
fumes temp. req
air vent. (not
available)
pump
relay aux spark plug
modbus com add.
• The main stove states that can be read on the display are:
STATE 1-9 various ignition phases
STATE 20-40 work state (power supply)
STATE 60-79 alarm state
STATE 80-84 shut off/cooling/autoeco state
STATE 85-93 auxiliary functions
STATE 94-95 cleaning state
• WATER TEMP.: Water temperature detected by the probe inside the stove and related SET
• AUX: PROBE: detects the value measured by the aux sensor (external/boiler/puffer)
• ACTIVE+.: Value read by the Active Plus system and related SET
• FAN FUMES: Number of fumes fan revolutions and related SET
• FEED SCREW: number of feed screw revolutions and related SET
• FUMES TEMP.: temperature value read by the probe inside the stove
• REQ: (Heating/Sanitary) signals if system requires heat
• AIR FAN: Room fan operation level (not available)
• PUMP: signals if the stove's internal pump is turned on (ON) or turned off (OFF)
• AUX: RELAY: signals activation (ON) or the OFF state of Aux relay
• SPARK PLUG: Signals if spark plug is turned on or off
• MODBUS COM. External interface communication state
• ADD.: Address for communicating with modbus
EXIT

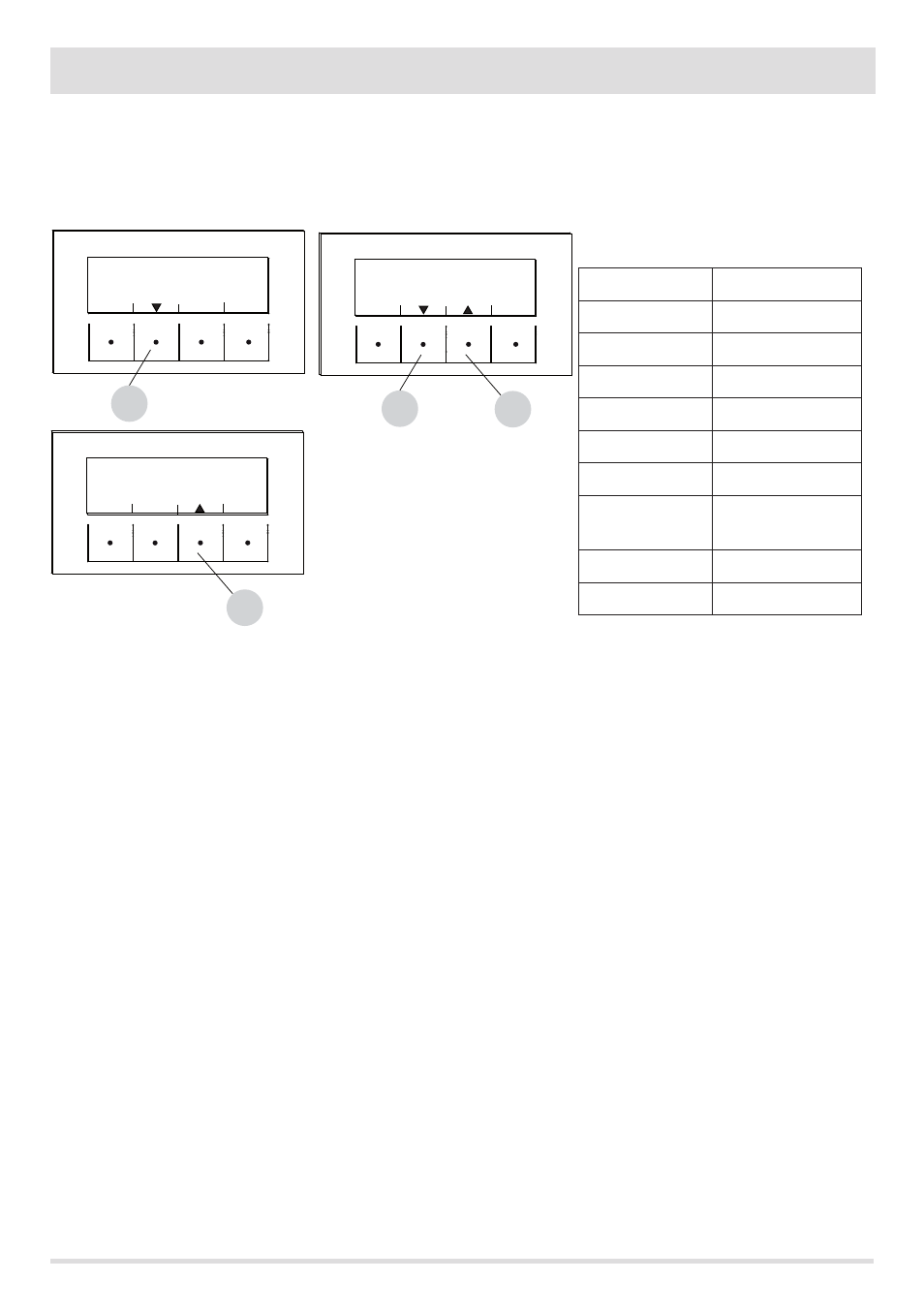

INFORMATIONS-STOVE STATE
STATE = 0-OFF
WATER TEMP = -43°C SET = 70°C
ACTIVE+ = 471 SET = 400
SMOKE FAN = 0 SET = 0
D
C
EXIT
INFORMATIONS-STOVE STATE
FEED SCREW = 0 SET = 0
SMOKE TEMP = 30°C REQ = BOLL
AIR FAN = 0% POMP. = OFF
3 WAY VALVE = NO HY. CAND. =OFF
C
D
EXIT
INFORMATIONS-STOVE STATE
MODBUS COM. = OFF IND.=4
