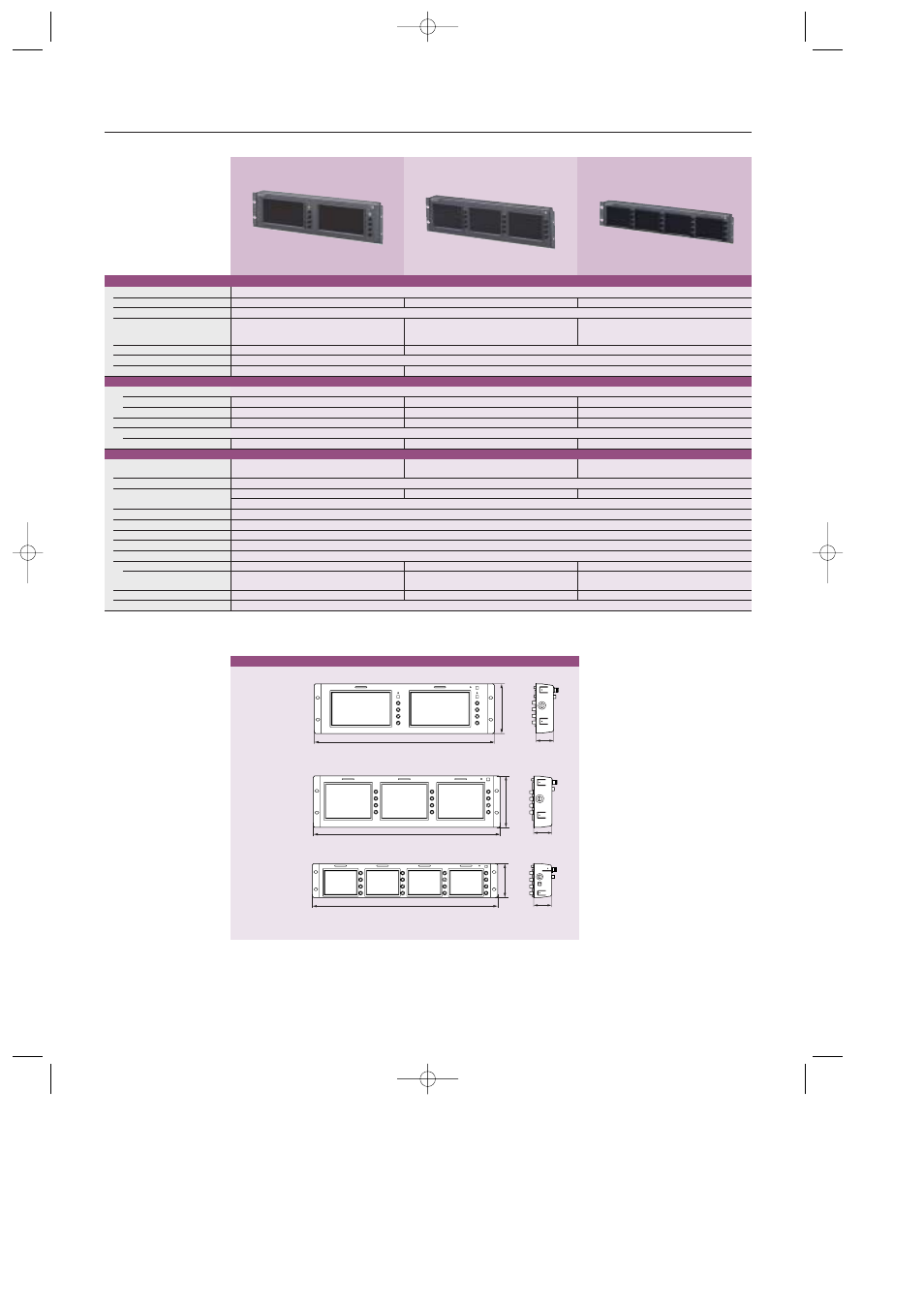

Specifications
18
LMD-7220W
LMD-5320
LMD-4420
Multi-display
Type
Picture Performance
Type
a-Si TFT Active Matrix
Resolution
480 x 234 dots
320 x 234 dots
480 x 234 dots
Pixel efficiency
99.99%
Picture Size (H x W)
Approx. 154.1 x 86.6 mm
Approx. 113.3 x 84.7 mm
Approx. 82.1 x 61.8 mm
(Viewable area)
(Approx. 6 1/8 x 3 1/2 inches)
(Approx. 4 1/2 x 3 3/8 inches)
(Approx. 3 1/4 x 2 1/2 inches)
(Diagonal)
7 inches (176.7 mm)
5 5/8 inches (141.5 mm)
4 1/8 ihches (102.8mm)s
Aspect
16:9
4:3
Colors
Full color
Viewing Angle
40°/65°/65°/65° (typical) (up/down/left/right contrast>10:1)
50°/30°/50°/50° (typical) (up/down/left/right contrast>10:1)
Input/Output
Composite
Input
BNC (x 2), 1.0 Vp-p ±2 dB, sync negative
BNC (x 3), 1.0 Vp-p ±2 dB, sync negative
BNC (x 4), 1.0 Vp-p ±2 dB, sync negative
Output
BNC (x2), Loop through, Automatic 75 Ω termination
BNC (x 3), Loop through, Automatic 75 Ω termination
BNC (x 4), Loop through, Automatic 75 Ω termination
OPTION IN
D-sub 9pin (x2)
D-sub 9pin (x3)
D-sub 9pin (x4)
Remote
Parallel
Modular 8 pin (x2)
Modular 8 pin (x3)
Modular 8 pin (x4)
General
Power Consumption
Maximum: Approx. 26 W (with 2 x BKM-320D)
Maximum: Approx. 28 W (with 3 x BKM-320D)
Maximum: Approx. 26 W (with 4 x BKM-320D)
Standard: Approx. 23 W (without optional input adaptor)
Standard: Approx. 22 W (without optional input adaptor)
Standard: Approx. 18 W (without optional input adaptor)
Power requirement
12V DC (with the supplied AC power adaptor), AC power adaptor:AC 100 to 240 V, 50/60 Hz
Peak inrush current
(1) Power on, current probe method:57A (230V)
(1) Power on, current probe method:55A (230V)
(1) Power on, current probe method:53A (230V)
(2) Hot switching inrush current, measured in accordance with European standard EN55103-1:8A (230V)
Operating Temperature
0 to 35°C (32 to 95°F)
Operating Humidity
30 to 85 % (no condensation)
Storage & Transport Temperature
-10 to 40°C (14 to 104°F)
Storage & Transport Humidity
0 to 90 %
Operating / Storage / Trans. Pressure
700 hPa to 1060 hPa
Dimensions (W x H x D)
482 x 133 x 47 mm (19 x 5
1
/
4
x 1
7
/
8
inches)*
482 x 133 x 47 mm (19 x 5
1
/
4
x 1
7
/
8
inches)*
482 x 88.1 x 47 mm (19 x 3
1
/
2
x 1
7
/
8
inches)*
Dimension including AC adaptor and
482 x 133 x 116 mm (19 x 5
1
/
4
x 4
5
/
8
inches)
482 x 133 x 116 mm (19 x 5
1
/
4
x 4
5
/
8
inches)
482 x 88.1 x 116 mm (19 x 3
1
/
2
x 4
5
/
8
inches)
BKM-320D
Mass
Approx. 2.3Kg (Approx. 5 lb 1 oz)**
Approx. 2.3Kg (Approx. 5 lb 1 oz)**
Approx. 1.9Kg (Approx. 4 lb 3 oz)**
Supplied Accessories
AC power adaptor (1), AC Power Cord (1), AC plug holder (1), Screws for AC adaptor holder (2), Operating Instructions (1), Warranty Card (1)
* without the projection parts ** Excluding supplied accessories.
Multi-display Type
Unit: mm (inches)
482 (19)
47 (1
7
/
8
)
133 (5
1
/
4
)
482 (19)
133 (5
1
/
4
)
47 (1
7
/
8
)
482 (19)
88.1 (3
1
/
2
)
47 (1
7
/
8
)
LMD-7220W
LMD-5320
LMD-4420
