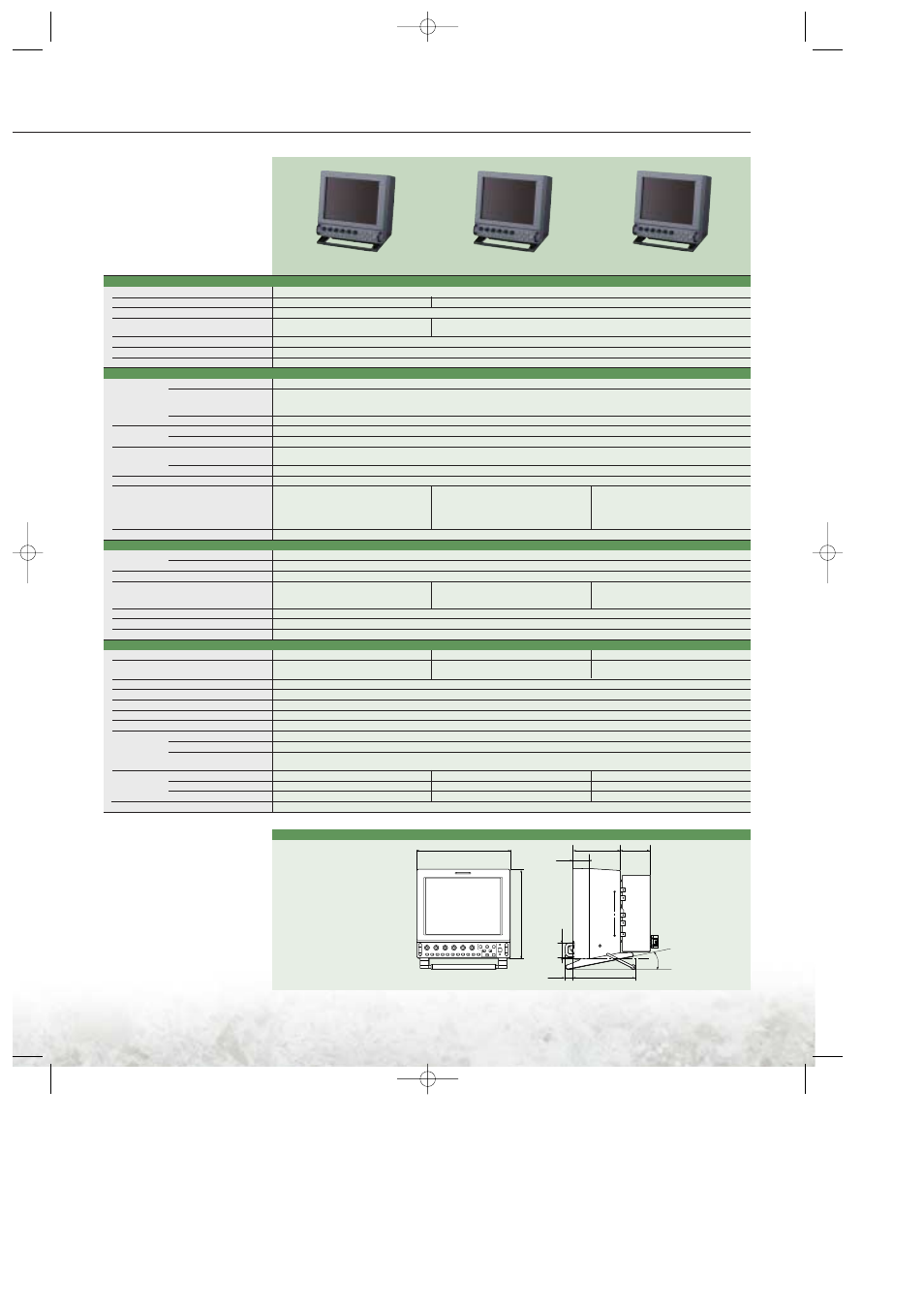

Handheld type – Ergotron LUMA User Manual
Page 17

17
LMD-9050
LMD-9030
LMD-9020
Handheld Type
142 (5
5
/
8
)
11.5∞
107.5 (4
1
/
4
)
216 (8
5
/
8
)
37 (1
1
/
2
)
66.5 (2
5
/
8
)
31 (1
1
/
4
)
206 (8
1
/
8
)
17.5 (
23
/
32
)
Handheld Type
LMD-9050
LMD-9030
LMD-9020
Unit: mm (inches)
Picture Performance
Type
a-Si TFT Active Matrix LCD with a multi-layer AR-coated protection panel
Resolution
1024 x 768 dots
640 x 680 dots
Pixel efficiency
99.99%
Picture Size (H x W), (Viewable area)
Approx. 170.5 x 127.9 mm, (Approx. 6
3
/
4
x 5
1
/
8
inches)
Approx. 170.9 x 128.2 mm, (Approx. 6
3
/
4
x 5
1
/
8
inches)
(Diagonal)
213 mm (8.4-inch)
213.6 mm (8.4-inch)
Aspect
4:3
Colors
16,770,000 colors
Viewing Angle
85°/85°/85°/85° (typical) (up/down/left/right contrast>10:1)
Input
Line A
Composite
BNC x 1, 1.0 Vp-p +3dB, -6 dB sync negative
4-pin mini-DIN x 1
Y/C
Y : 1.0 Vp-p + 3dB, -6 dB sync negative
C : 0.286 Vp-p ±3 dB (NTSC), 0.3 Vp-p ±3 dB (PAL)
Audio
Mini jack x 1, -5 dBu 47 kΩ or higher
Line B
Composite
BNC x 1, 1.0 Vp-p +3 dB, -6 dB sync negative
Audio
Mini jack x 1, -5 dBu 47 kΩ or higher
RGB/Component
RGB/Component
BNC x 3, RGB input : 0.7 Vp-p +3 dB, -6 dB (Sync On Green, 0.3 Vp-p sync negative)
Component input : 0.7 Vp-p +3 dB, -6 dB (75% chrominance standard color bar signal)
Audio
Mini jack x 1, -5 dBu 47 kΩ or higher
Ext.sync
BNC x 1, 0.3 to 4 Vp-p ± bipolarity ternary or negative polarity binary
SDI
HD-SDI/D1-SDI:
D1-SDI:
BNC x 2 (HD and D1 are automatically detected)
BNC x 2,
Sampling frequency D1-SDI:Y/R-Y/B-Y 13.5 MHz,
Sampling frequency :Y/R-Y/B-Y 13.5 MHz,
—
HD-SDI:Y/PB/PR 74.25 MHz
Quantization 10 bits/sample
Quantization 10 bits/sample
Remote
Parallel remote
Modular connector 8-pin x 1(Assignable)
Output
Line A
Composite
BNC x 1, Loop-through, with 75 Ω automatic termination
Y/C
4-pin mini-DIN x 1, Loop-through, with 75 Ω automatic termination
Line B
Composite
BNC x 1, Loop-through, with 75 Ω automatic termination
Monitor output
HD-SDI/D1-SDI:
D1-SDI:
BNC x 1, Output signal : amplitude 800 mVp-p ±10%, BNC x 1, Output signal amplitude : 800 mVp-p ±10%,
—
Output impedance : 75 Ω umbalanced
Output impedance : 75 Ω umbalanced
Audio output
Mini jack x 1, Loop-through
Headphones output
Mini jack x 1(Monaural), Loop-through
Speaker output
0.5 W (Monaural)
General
Power Consumption
Monitor : Approx. 24 W, With AC Adaptor : Approx. 28 W
Approx. 16 W, With AC Adaptor : Approx. 22 W
Approx. 15 W, With AC Adaptor : Approx. 20 W
Power requirement
AC 100 to 240 V, 50/60 Hz, 0.82 A, DC 12 V 2.2 A,
AC 100 to 240 V, 50/60 Hz, 0.82 to 0.42 A, DC 12 V 1.6 A, AC 100 to 240 V, 50/60 Hz, 0.82 to 0.42 A, DC 12 V 1.5 A,
Rechargeable Battery Pack
Rechargeable Battery Pack
Rechargeable Battery Pack
Operating Temparature
0 to 40 °C
Operating Humidity
30 to 85 % (No condensation)
Operating/Storage/Trans. Pressure
700 to 1060 hPa
Storage & Transport Temperature
-20 to 60 °C
Storage & Transport Humidity
0 to 90 %
Dimensions (W x H x D)
Approx. 216 x 206 x 136.1 mm (8
5
/
8
x 8
1
/
8
x 5
3
/
8
inches)
Dimension with the supplied stand
Approx. 216 x 230 x 159.5 mm (8
5
/
8
x 9
1
/
8
x 6
3
/
8
inches)
Dimension with the supplied stand
Approx. 216 x 230 x 210 mm (8
5
/
8
x 9
1
/
8
x 8
3
/
8
inches)
and AC adaptor
Mass
Approx. 3.0 Kg (6 lb 10 oz)
Approx. 2.9 Kg (6 lb 6 oz)
Approx. 2.8 Kg (6 lb 3 oz)
With the supplied stand
Approx. 3.2 Kg ( 7 lb 1 oz)
Approx. 3.1 Kg (6 lb 13 oz)
Approx. 3.0 Kg (6 lb 10 oz)
With the supplied stand and AC adaptor
Approx. 3.9 Kg (8 lb 10 oz)
Approx. 3.8 Kg (8 lb 6 oz)
Approx. 3.7 Kg (8 lb 3 oz)
Supplied Accessories
AC adaptor (1), AC Cord (1), AC plug holder (1), Operating instructions (1), CD-ROM (1), Warranty card (1), Using the CD-ROM Manual (1)
