Input Versatility
To keep their units simple and clean, the handheld type LUMA monitors
provide all inputs built-in as standard, instead of using optional input
modules. For typical SD video monitoring, all three monitors offer interfaces
for analog composite (NTSC/PAL), analog component/RGB (525/60i and
625/50i) and analog Y/C (S-Video). The LMD-9030 additionally offers SD-
SDI input capability. The top-of-the-line LMD-9050 further provides a
variety of digital progressive SD and HD formats through its HD-SDI
interface*. These include 480/60P and 576/50P, and high-definition
1080/60i, 1080/50i, 720/50P, 720/60P as well as 1080/24PsF.
* The SD-SDI and HD-SDI inputs share the same BNC connectors, which offer automatic signal-type
detection.

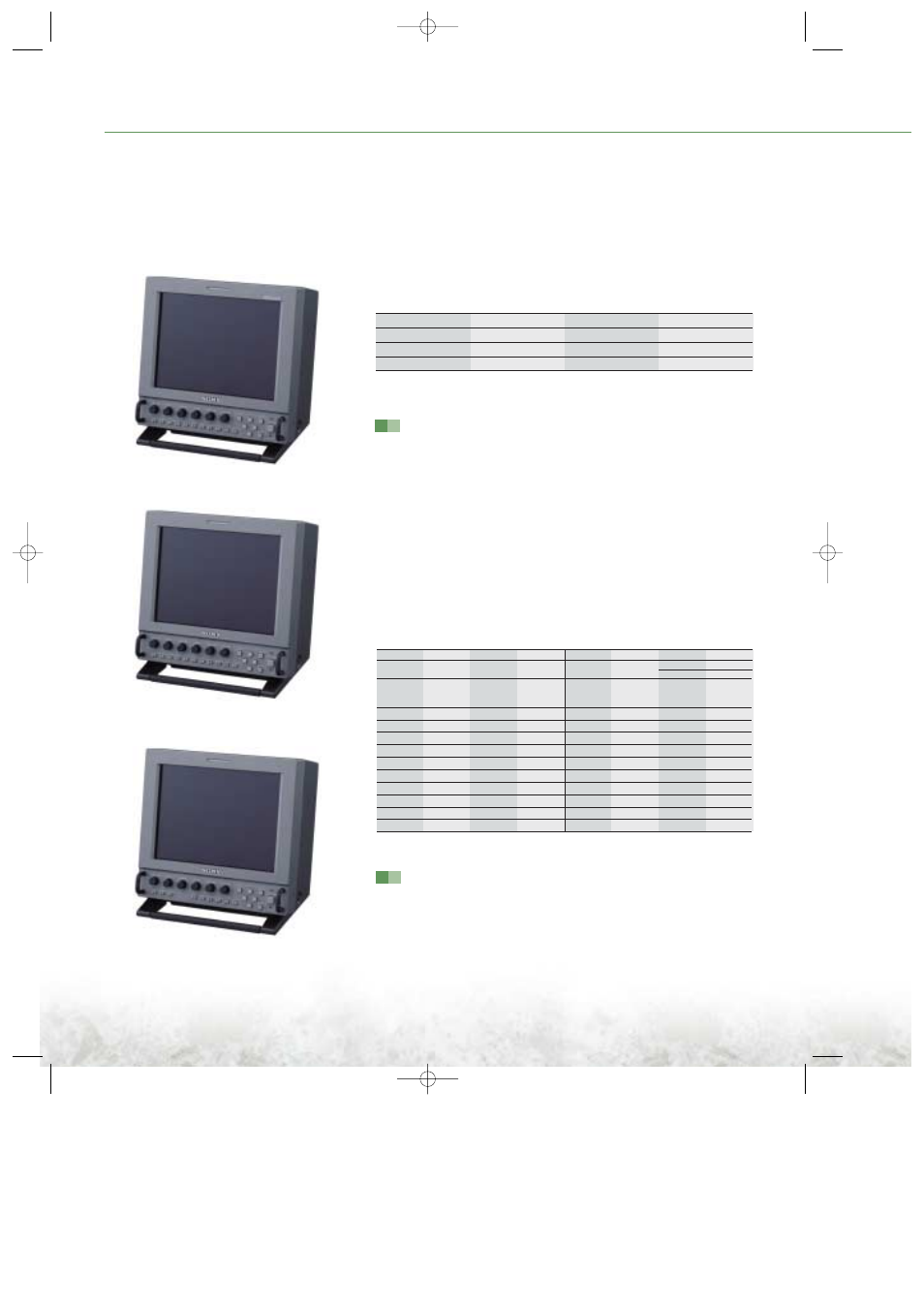

Handheld Type
10
LMD-9050
LMD-9030
LMD-9020
The handheld type LUMA monitors bring a new level of monitoring convenience into the field and the
studio. Three models are available – the LMD-9050 offering digital HD/SD multi-format capabilities, the
LMD-9030 focused on SD-SDI video monitoring, and the LMD-9020 exclusively for analog video monitoring.
Using a common chassis, all models can be AC, DC, or battery driven so that they can be hand-held, situated
on a desk, or mounted in standard racks. Together with their high-grade LCD panels, this series of monitors
offers a range of rear panel interfaces from analog SD input to digital HD-SDI.
Panel Aspect Ratio
Panel Size
*
Acceptable Format
LMD-9050
4:3
8.4-inch
Analog, HD-SDI/SD-SDI
LMD-9030
4:3
8.4-inch
Analog, SD-SDI
LMD-9020
4:3
8.4-inch
Analog
* Viewable area measured diagonally.
System
Total Lines
Active Line Aspect Ratio
Composite
RGB SDI
(x2)
Y/C (x 1)
Component (x 1)
SD-SDI
HD-SDI
Model
LMD-9050
LMD-9050
LMD-9050
LMD-9050
LMD-9030
LMD-9030
LMD-9030
LMD-9020
LMD-9020
575/50i
625
575
16:9/4:3
O
O
O
—
480/60i*
525
483
16:9/4:3
O
O
O
—
480/60P
525
483
16:9/4:3
—
O
—
—
576/50P
625
576
16:9/4:3
—
O
—
—
1080/24PsF
1125
1080
16:9
—
O
—
O
1080/50i
1125
1080
16:9
—
O
—
O
1035/60i*
1125
1035
16:9
—
O
—
O
1080/60i*
1125
1080
16:9
—
O
—
O
720/50P
750
1080
16:9
—
O
—
O
720/60P
750
720
16:9
—
O
—
O
Input Signal
Standard Interface
Input Signals
Panel Type
High Picture Quality
Excellent Brightness and Contrast
The handheld type LUMA monitors provide high-brightness and high-
contrast images by using wide aperture LCD panels. In addition, the use of
precisely manufactured RGB color filters allows these monitors to reproduce
colors with stunning depth and saturation – creating highly natural images.
* Also accepts 59.94 Hz field rate.
