C2RPS-PSM Specifications

A-2 Specifications

C2RPS-PSM

Specifications

Refer to

Table A‐2

for the input/output port specifications.

C2RPS-PSM Redundant Power Supply Output Connector

For pin location and function, refer to

Figure A‐1

and

Table A‐3

, respectively.

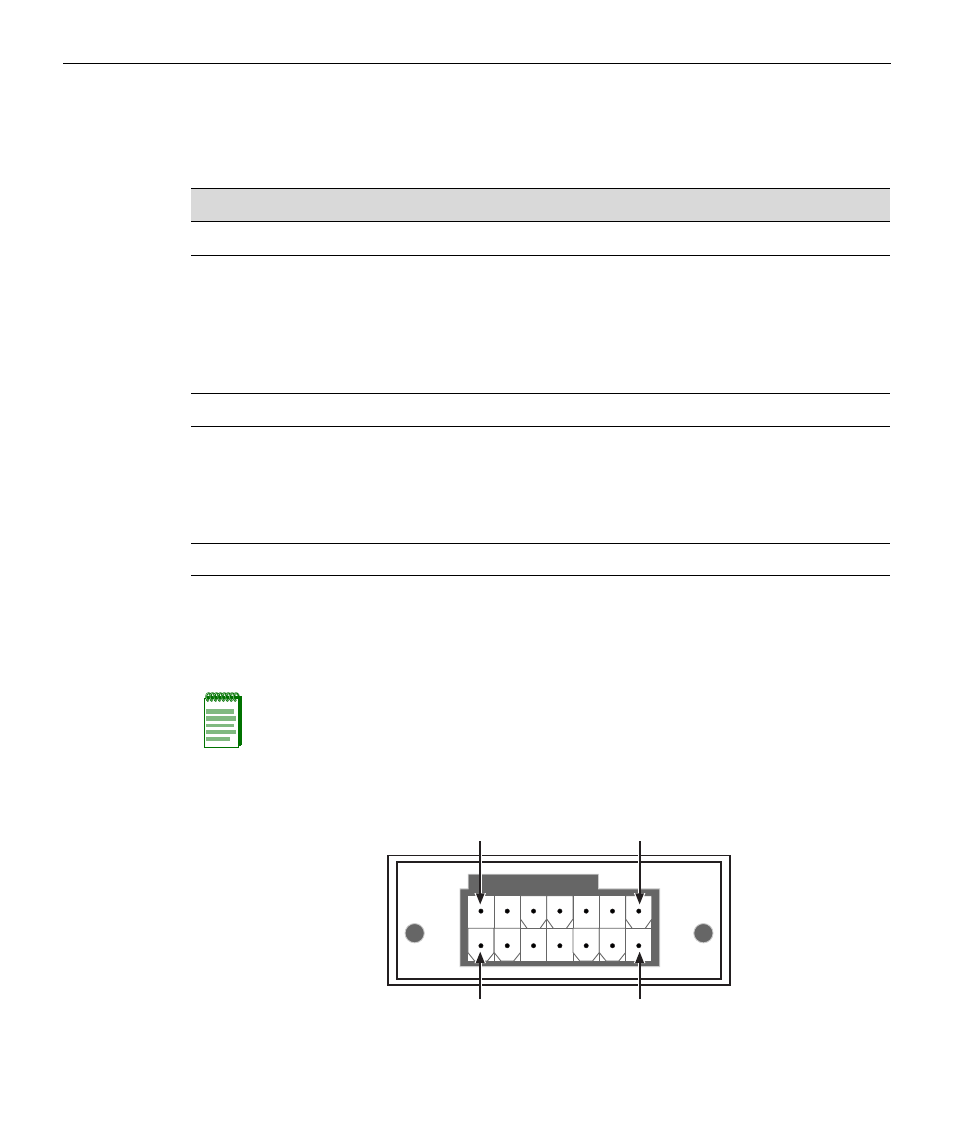

Figure A-1 C2RPS-PSM Redundant Power Supply Connector Pin Locations

Table A-2 C2RPS-PSM

Specifications

Item

Specification

Electrical

AC Input Frequency Range
AC Input Voltage Range
Output Voltage
Output Current
Maximum Output Power

47–63 Hz
85–264 Vac
12 Vdc
1.0 A min., 8.5 A or 13.0 A max.
102 W or 156 W continuous

Physical

Dimensions

19.6 H x 5.2 W x 25.7 D (cm)
7.7 H x 2.04 W x 10.1 D (in.)

Net Weight (Unit Only)
Gross Weight (Packaged Unit)

1.75 kg (3.85 lb)
3.20 kg (7.04 lb)

MTBF

300,000 Hours

Note: The following information is for troubleshooting purposes only. For proper operation,
do not use any other cable except the C2RPS-PSM Cable. This cable is specially
designed for this application and meets all necessary regulatory and safety standards. The
use of non-approved cables will void your warranty.
