C2RPS-PSM Power Supply Module
SecureStack C2 Installation Guide 1-3
C2RPS-PSM Power Supply Module
The C2RPS‐PSM provides the following:
•
Hot swap capability.
•
One 12 Vdc, 150 Watts of maximum‐continuous power output to a connected
SecureStack C2 switch device.
•
Front panel Status LED that indicates if the PSM is operating correctly.
Figures
and
show the front and rear view of the C2RPS‐PSM.

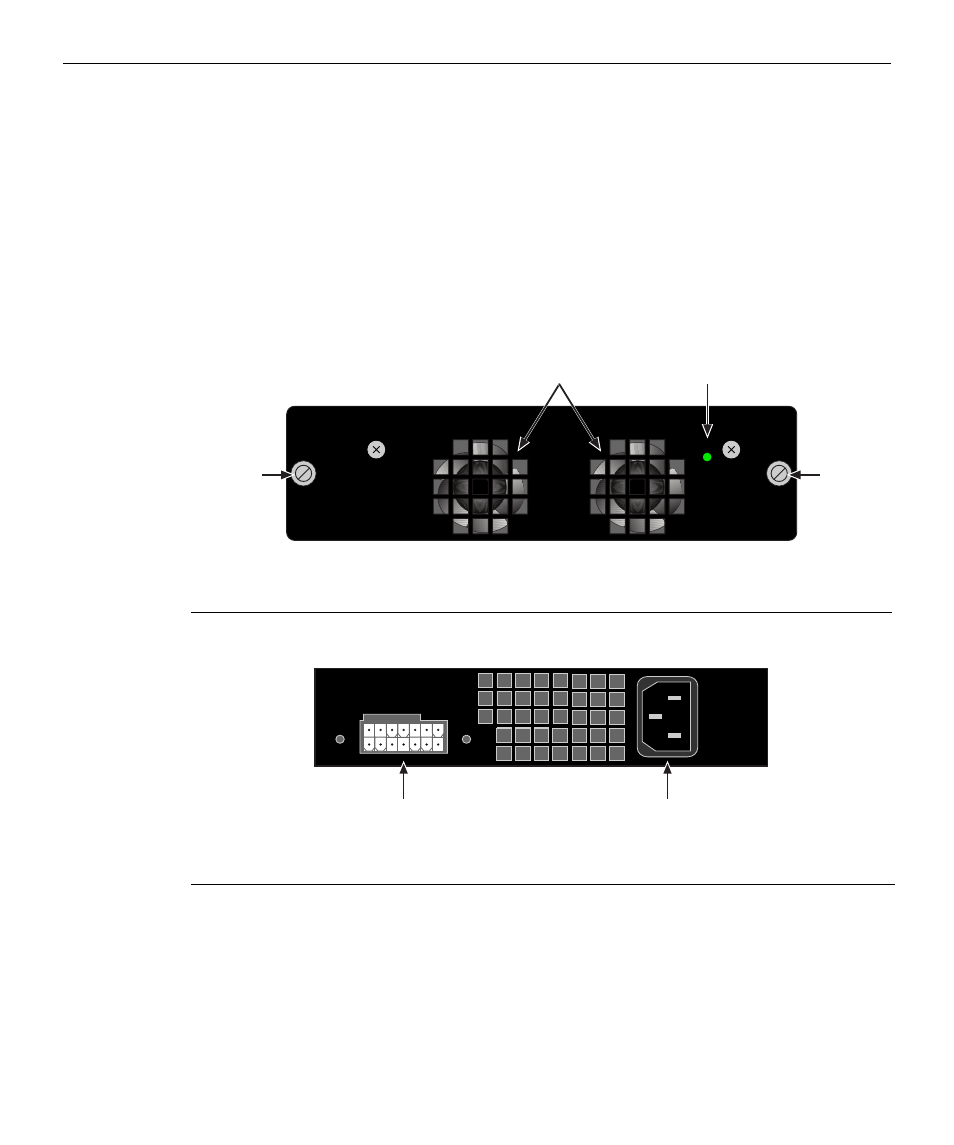

Figure 1-4 C2RPS-PSM (front view)
Figure 1-5 C2RPS-PSM (rear view)
1 Intake cooling fans
3 Captive screws (2)
2 AC power LED
1 Redundant Power Supply connector
(12 Vdc inputs and PSM status outputs)
2 AC input connector
À
C2RPS-PSM
Power
В
В
Б
AC LINE
100-240 VAC
50-60 Hz
2A MAX
Redundant Power Supply
А
Б
