80-063-000
Small CPU Holder
80-058-000
Medium CPU Holder
80-059-000
Large CPU Holder
80-060-000
Medium CPU
Shelf
80-061-000 Large
CPU Shelf
Bracket is required when
mounting holder to Command
Post or Wall Track

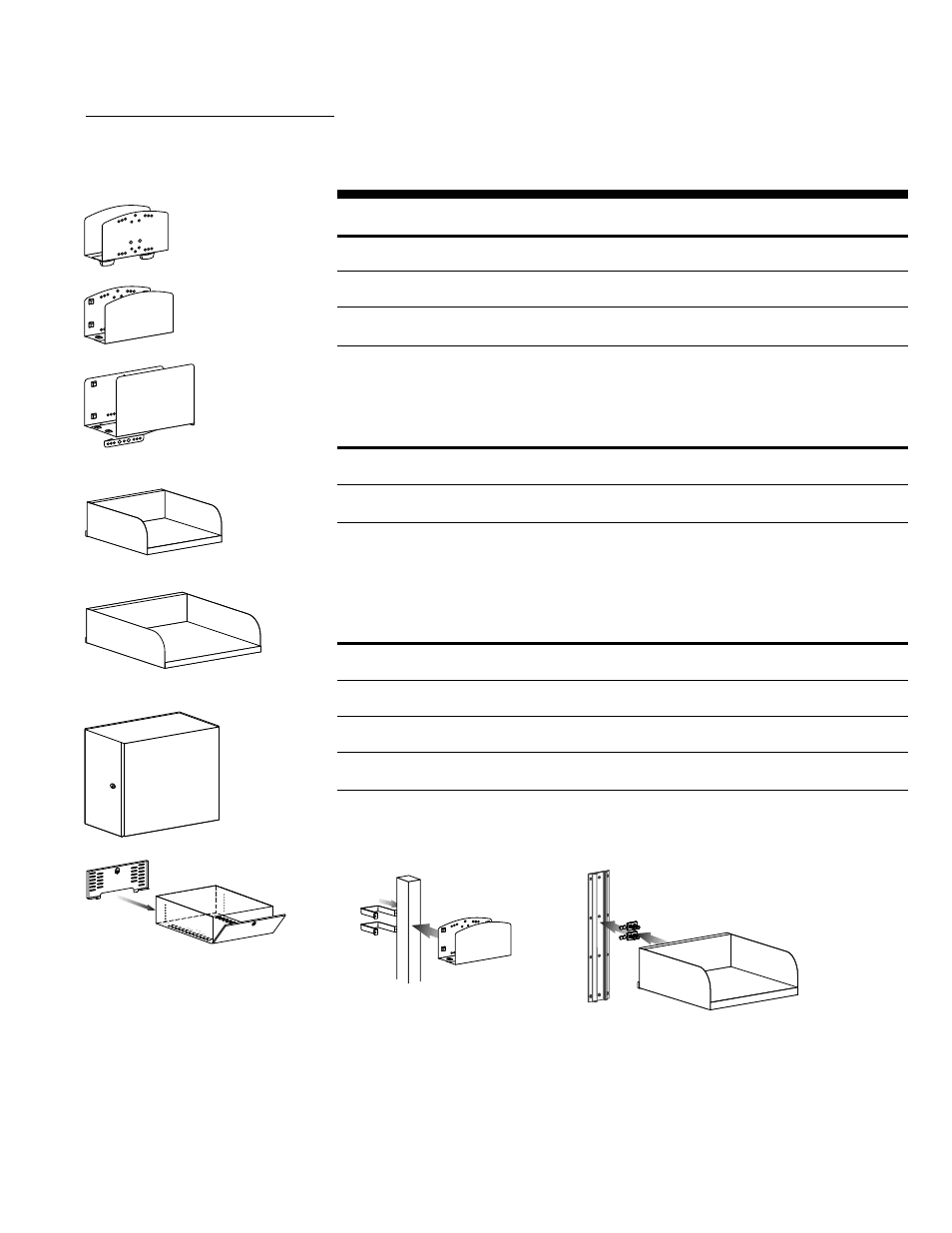

CPU Cabinet in horizontal position
with back cover removed
Peripherals and Accessories
CPU Holders: Mount CPUs in a vertical, tower position. Each holder’s width is adjustable. Three sizes
are available to accommodate equipment 1-3/8" to 10-3/4" wide. Mount to Command Post, Wall Track,
or directly to a vertical surface.
Part Description Dimensions Weight
Number H x W x D (D = Adjustment Range) Capacity
80-063-000 CPU Holder, 6" x 10" x 1-3/8–3-3/4" 50 lbs
Small (152 x 254 x 35–95 mm) (22.7 kg)
80-058-000 CPU Holder, 6-1/2" x 10" x 3-3/8–7-5/8" 100 lbs
Medium (165 x 254 x 86–194 mm) (45.4 kg)
80-059-000 CPU Holder, 14-5/8" x 12" x 5–10-3/4" 150 lbs
Large (371 x 305 x 127–273 mm) (68.1 kg)
Note: When mounting to a Command Post or Wall Track, bracket is required. See pages 15–16.
Note: When mounting directly to surface, fasteners are supplied by user.
CPU Shelves: CPU Shelves are available in two sizes. They provide greater surface area to place
equipment. Mount to Command Post, Wall Track, or directly to a vertical surface. Cables are routed
through a back opening.
80-060-000 CPU Shelf, 17" x 17" x 5" 100 lbs
Medium (432 x 432 x 127 mm) (45.4 kg)
80-061-000* CPU Shelf, 22" x 20" x 7-1/2" 150 lbs
Large (559 x 508 x 191 mm) (68.1 kg)
* Do not use CPU Shelf, Large (80-061-000) with the 2" x 2" Command Post (20-143-000).
Note: When mounting to a Command Post or Wall Track, bracket is required. See pages 15–16.
Note: When mounting directly to surface, fasteners are supplied by user.
CPU Cabinet: Ergotron’s CPU Cabinet provides a secure enclosure to mount and protect equipment
up to 18-3/8" wide. It secures with a lockable, hinged front panel and lockable, removable back panel.
The bottom and back are vented. Cables pass through routing holes in the bottom.
80-062-000 CPU Cabinet 18-3/8" x 21" x 8" 125 lbs
(467 x 533 x 203 mm) (56.7 kg)
65-029-000 Fixed Underbracing for horizontal mounting to
3" x 3" Command Post
65-088-000 Fixed Underbracing for horizontal mounting to
4" x 4" Command Post
65-059-000 Fixed Underbracing for horizontal mounting to
Wall Track
Note: To mount CPU Cabinet vertically on Command Post or Wall Track, bracket is required. See pages 15–16.
Note: To mount CPU Cabinet horizontally on Command Post or Wall Track, order appropriate Fixed Underbracing
above. No extra bracket is required.
80-062-000 CPU
Cabinet
CPU Holders, Shelves
and Cabinets
