870-03-018 rev. 05/13/04 • CRT Monitor Mounting Solutions Orderguide • 13
Post P/N H x W x D Base / Mounting Kit (page 14) Floor / Ceiling Mount Machine / Bench Mount
20-143-000 74" x 2" x 2" 97-012-000 Not recommended* Arm w/out Ext
20-075-000 48" x 3" x 3" 60-360-000 or 97-011-000 Arm w/out Ext Arm w/out Ext
20-076-000 80" x 3" x 3" 60-360-000 or 97-011-000 Arm w/out Ext Arm w/out Ext
20-077-000 96" x 3" x 3" 60-360-000 or 97-011-000 Arm w/out Ext Arm w/out Ext
20-078-000** 96" x 4" x 4" 60-138-000** Arm(s) with Ext(s) Arm(s) with Ext(s)***
Arm = Suspension, Lift or Fixed Arm for CRT monitor (pages 8–11)
Ext = Extender Arm
(page 11)
* The 2" x 2" Post should not be mounted to floor or ceiling in applications using CRT Monitor Arms.
** When mounting 4" x 4" Post to machine or bench, fasteners to be supplied by customer.
*** 4" x 4" Post should be employed in applications using Extender Arms, multiple arms, and/or with heavy loads.

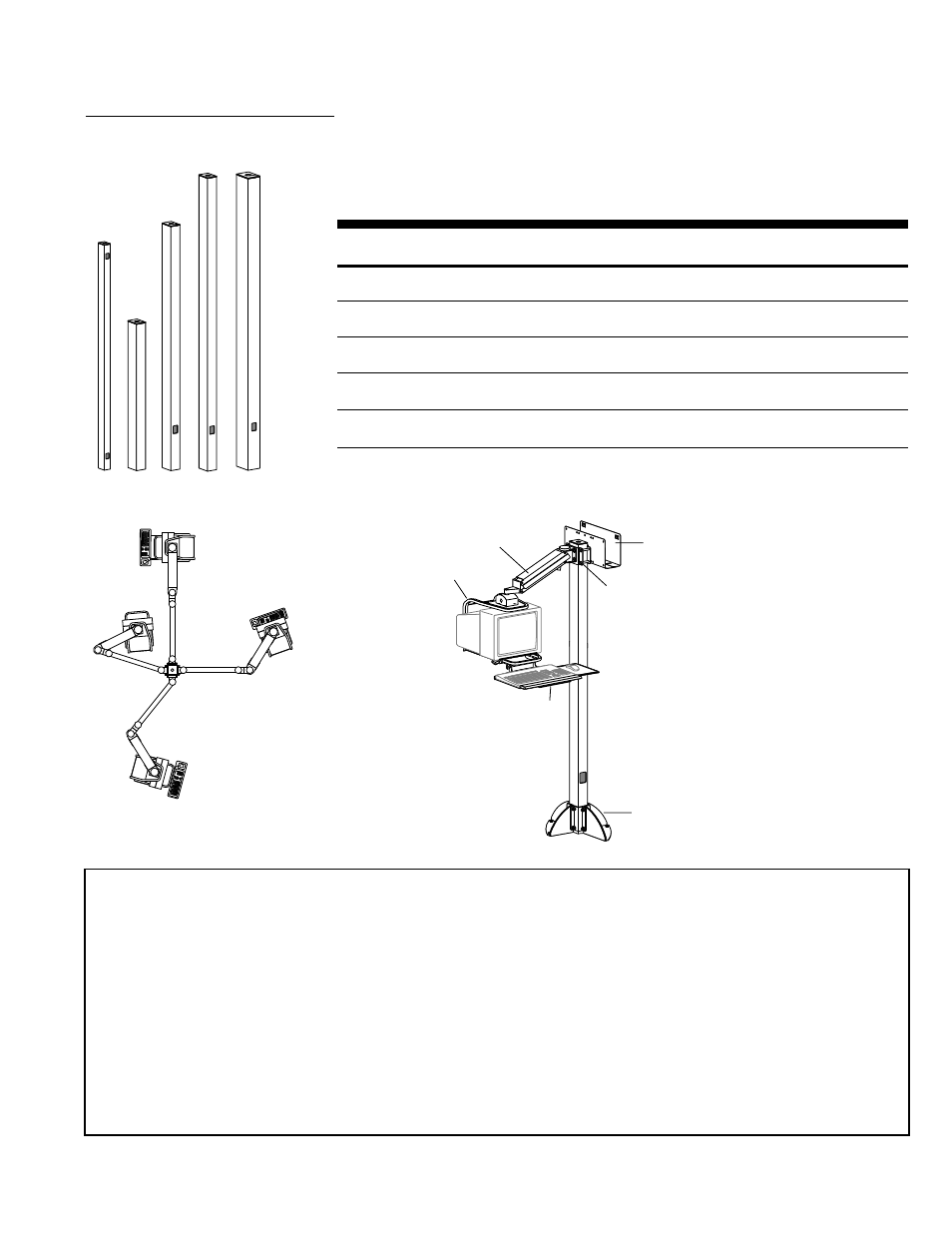

Monitor Caddy
Suspension Arm
Bracket for mounting
arm and peripheral
to post
Top View
Multiple arms and
extenders can be mounted
to Command Post***
Keyboard Holder
and Tray
CPU Holder
Base
Command Post
configuration example
Mounting Systems
The Command Post uses little or no floor space. Attach to the floor, suspend from the ceiling, or
clamp to a machine or workbench (choose appropriate mounting hardware from the table below).
It provides one standard interface that will mount multiple components. Choose a length of post that
accommodates your monitor requirements and the size/number of components you wish to mount.
Brackets are required to mount arms and peripherals to post unless noted otherwise (pgs. 14 & 15).
Part Description Dimensions
Number H x W x D
20-143-000* Post, 2" x 2" x 74" 74" x 2" x 2"
11-gauge steel wall (1880 x 51 x 51 mm)
20-075-000 Post, 3" x 3" x 48" 48" x 3" x 3"
11-gauge steel wall (1219 x 76 x 76 mm)
20-076-000 Post, 3" x 3" x 80" 80" x 3" x 3"
11-gauge steel wall (2032 x 76 x 76 mm)
20-077-000 Post, 3" x 3" x 96" 96" x 3" x 3"
11-gauge steel wall (2438 x 76 x 76 mm)
20-078-000** Post, 4" x 4" x 96" 96" x 4" x 4"
3/16-gauge steel wall (2438 x 102 x 102 mm)
Note: Posts have cable routing access holes to allow cables to pass through them.
Note: Other post lengths can be ordered on a custom basis. Contact your sales representative for more information.
Note: See Mounting Options and Uses Table below to determine which post, base/mounting kit and arm(s) to choose.
Command Posts
Command Post Mounting Options Table
