Extender Arm
Fasteners that attach
bracket to wall not
included
Wall Bracket
Desk Clamp Grommet Mount
Mounting Systems

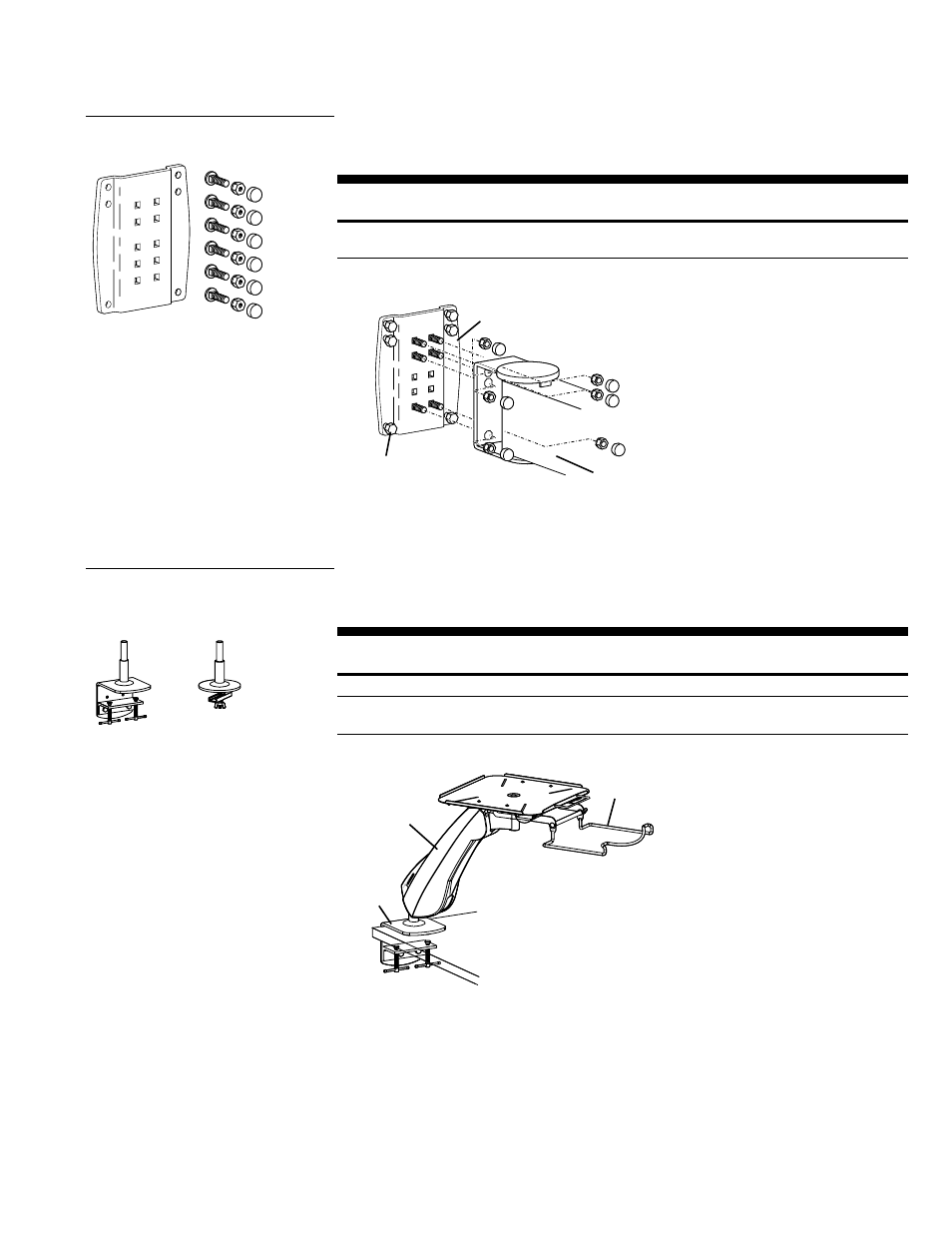

The Wall Bracket allows mounting of any monitor arm directly to a wall or solid structure, like a
machine or pillar. This economical solution adds the extra support you need.
Part Description Dimensions Arm Fasteners
Number W x H
60-152-000 Wall Mounting Bracket 6-5/8" x 8" (6) 3/8"-16 x 3/4"
with arm fasteners (168 x 203 mm) carriage bolt
Note: Fasteners that attach Wall Bracket to wall are not supplied by Ergotron.
Wall Bracket
Caution: Surface construction varies and the
ultimate mounting method you use to attach an
Ergotron mounting system is out of Ergotron’s
control. It is important to consult with the
appropriate local engineering, architectural, or
construction personnel to ensure that an Ergotron
mounting system is mounted properly to handle
applied loads.
Desk Mounts allow direct attachment of a monitor arm to a horizontal surface, like a tabletop or desk.
They are compatible only with the 10" Lift Arm.
Part Description Attaches to…
Number
60-257-100 Desk Clamp Horizontal surface at edge ≤ 3" (76 mm) thick
33-269-000 Grommet Mount Horizontal surface through hole 3/8" to 3"
(10 to 76 mm) wide, up to 4" (102 mm) thick
Desk Mounts
Desk Mount
configuration
example Desk Clamp
10" Lift Arm
Keyboard Holder
