14 • CRT Monitor Mounting Solutions Orderguide • rev. 05/13/04 870-03-018

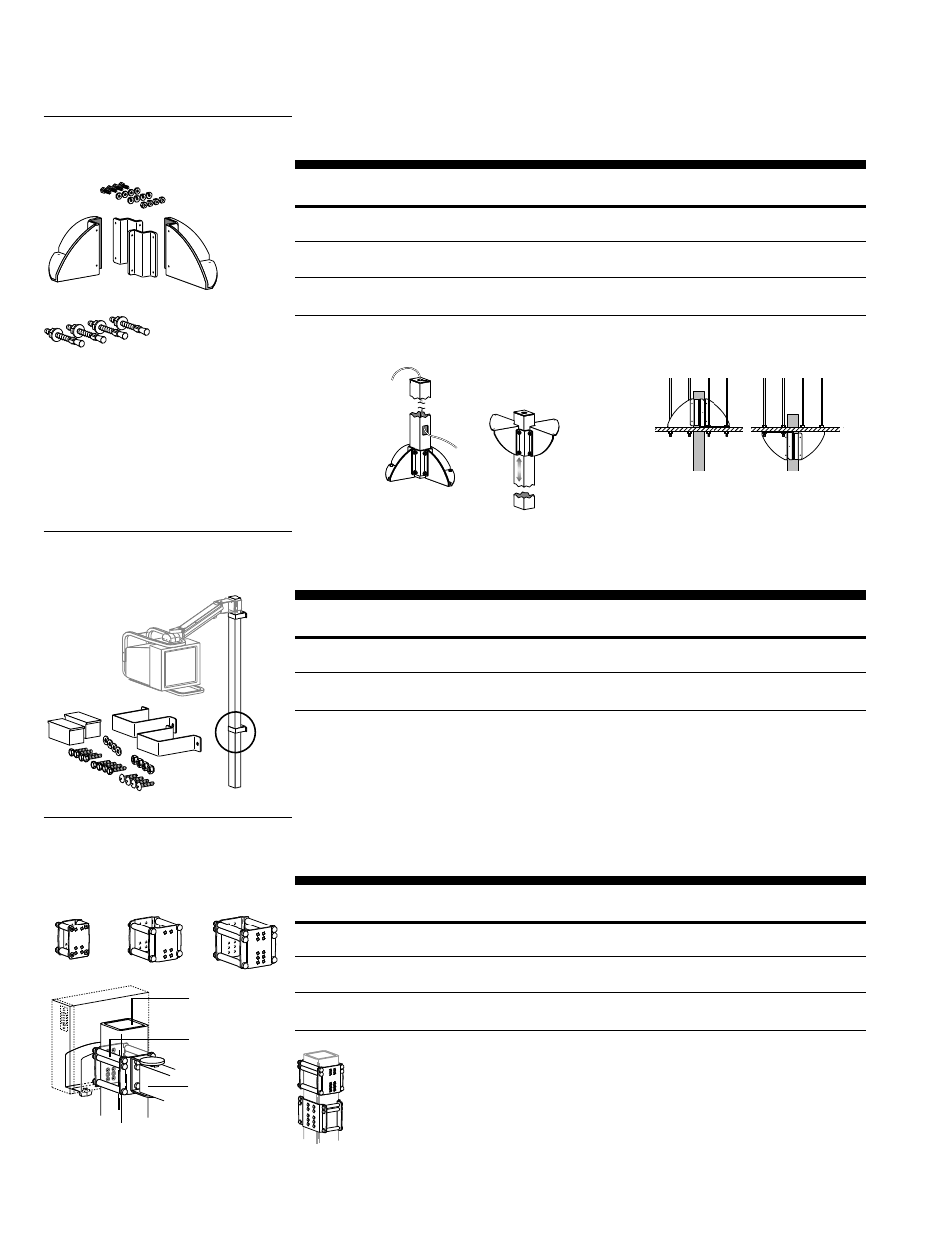

Base for
Command Post
90-018, Hardware Kit for Base for
attaching base to concrete surface
Mounting Kit for attaching
post to vertical surface
Base upside down for
ceiling application
Base shown in floor
mount application
Customer provided threaded rod used to
anchor Base above or below a false ceiling
Base can be
mounted at any
height on Post
4" x 4" Post
Extender Arm
60-155-000
Caution: Surface construction varies and the
ultimate mounting method you use to attach an
Ergotron mounting system is out of Ergotron’s
control. It is important to consult with the
appropriate local engineering, architectural, or
construction personnel to ensure that an Ergotron
mounting system is mounted properly to handle
applied loads.
Mounting Systems
Select the appropriate Base for your post when mounting to floor or ceiling.
Part Description Dimensions Compatible with
Number H x W x D Post(s)…
60-360-000 Base, for 7" x 17" x 17" 20-075-000, 20-076-000
3" x 3" Post (178 x 432 x 432 mm) 20-077-000
60-138-000 Base, for 8" x 18" x 18" 20-078-000
4" x 4" Post (203 x 457 x 457 mm)
90-018 Hardware Kit for Base 3/8" dia. x 3-3/4" long
(4) concrete stud anchors (9.5 x 95 mm)
Note: Mounting 2" x 2" Post to floor or ceiling is not recommended in applications using CRT Monitor Arms.
Note: Order the Hardware Kit for Base when attaching to a concrete surface.
Bases for
Command Posts
Select the appropriate Mounting Kit when mounting your post to a vertical surface, like a machine
or workbench.
Part Description Compatible with
Number Post(s)…
97-012-000 Mounting Kit, for 20-143-000
2" x 2" Post
97-011-000 Mounting Kit, for 20-075-000, 20-076-000
3" x 3" Post 20-077-000
Note: If mounting 4" x 4" Post to a vertical surface, fasteners to be supplied by customer.
Mounting Kits for
Command Posts
Brackets are required for mounting monitor arms to posts. All vertical-mount arms are compatible with
these brackets. Order brackets according to post size.
Part Description Dimensions Arm Mounting
Number W x H Hardware included…
60-153-000 Bracket for Arm, 4-5/8" x 6-1/2" (4) 3/8"–16 x 3/4"
2" x 2" Post (117 x 165 mm) flat socket head
60-154-000 Bracket for Arm, 5-3/4" x 5-3/8" (4) 3/8"–16 x 3/4"
3" x 3" Post (146 x 137 mm) flat socket head
60-155-000 Bracket for Arm, 6-7/8" x 6-3/8" (6) 3/8"–16 x 3/4"
4" x 4" Post (175 x 162 mm) flat socket head
Brackets for Mounting
Monitor Arms to
Command Posts
Multiple arms, extenders or
components can be mounted to
Command Post by stacking and
offsetting brackets
