12 • CRT Monitor Mounting Solutions Orderguide • rev. 05/13/04 870-03-018
97-053-002

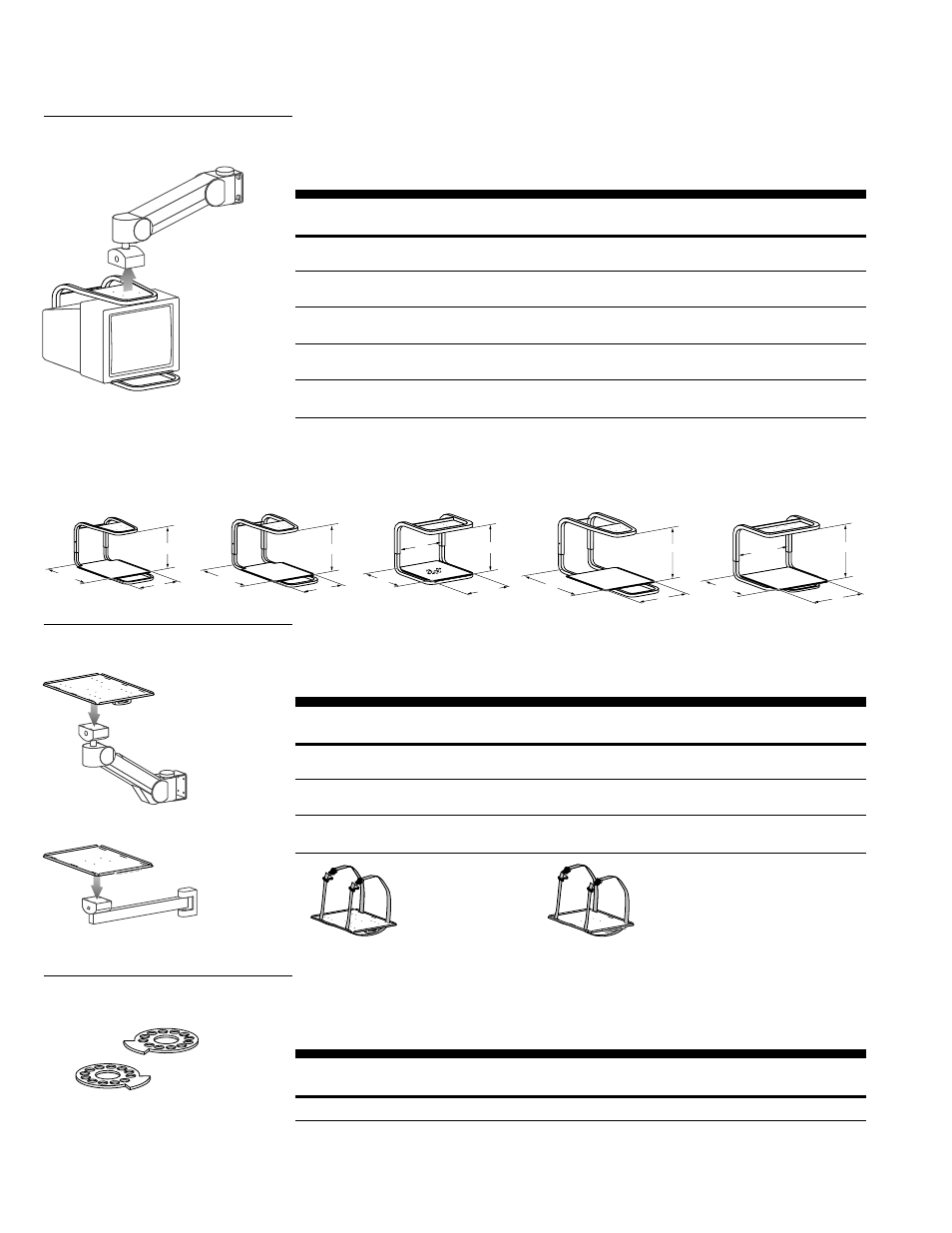

Arm Components
Monitor Caddies are used in conjunction with Suspension and Fixed Arms. A monitor is securely
cradled within the Caddy. Choose a Caddy appropriate to your monitor’s size. The Caddy’s telescoping
frame further adjusts to an individual monitor’s height.
Part Description Height Monitor Monitor Weight
Number Adjustment Depth* Width* Capacity*
40-002-000 Type 2 12"–15-1/2" 16-1/2" — 40 lbs
Monitor Caddy (305–394 mm) (419 mm) (18.2 kg)
40-004-000 Type 3 13-1/2"–18-1/2" 19" — 65 lbs
Monitor Caddy (343–470 mm) (483 mm) (29.5 kg)
40-043-000 Type 3T 13"–18-1/2" — 13-7/8"** 70 lbs
Monitor Caddy (330–470 mm) (352 mm) (31.8 kg)
40-008-000 Type 4 16-1/2"–22" 22" — 70 lbs
Monitor Caddy (419–559 mm) (559 mm) (31.8 kg)
40-013-000 Type 5 16-1/2"–22" — 16-1/4"*** 120 lbs
Monitor Caddy (419–559 mm) (413 mm) (54.5 kg)
* Monitor depth, width and weight specifications are listed as maximum measurements.
** For wide-backed monitors; maximum rear monitor width is 13-7/8" (352 mm), measured 13" (330 mm) from front
of monitor.
*** For wide-backed monitors; maximum rear monitor width is 16-1/4" (413 mm), measured 15" (381 mm) from front
of monitor.
Monitor Caddies
Monitor Platforms are used with 16" Lift and Fixed Arms. Straps are included to secure the monitor in
place—order polyurethane for easy cleaning. Part number 33-004-000 features a bottom-mounted
handle that is specially suited to the 16" Lift Arm.
Part Description Dimensions
Number
33-004-000 Platform w/ polyurethane 14" x 14"
straps for 16" Lift Arm (356 x 356 mm)
33-056-000 Platform w/ polyurethane 14" x 14"
straps for Fixed Arms (356 x 356 mm)
33-059-000 Platform w/ nylon straps 14" x 14"
for Fixed Arms (356 x 356 mm)
Monitor Platforms
33-004-000 Platform for Lift Arm
(includes bottom handle) 33-056-000 Platform for Fixed Arms
(includes front handle)
The optional Rotation Control Kit limits the rotation of a monitor arm. This allows the setting of a
specific rotation range according to your application. Rotation in both directions is set in 7.5°
increments using a standard 5/32" Allen wrench.
Part Description Adjustment
Number Increments
97-053-002 Arm Rotation Control Kit 7.5° increments
Rotation Control Kit
Type 2 Type 5 Type 3T
16"
16.375"
14"
13.75"
12"
16.50"–22" 13"–18.5" 12"–15.5"
Type 4
16"
16.50"–22"
19"
14.75"
Type 3
12"
13.5"–18.5"
17.5" 13"
13.75"
