Subwoofers
SW6100 DVC / SW6100 Series
44
SW6123DVC SW6123.4 SW6103DVC SW6103.4
Size 12” 12” 10” 10”
Fs 29Hz 29Hz 34Hz 34Hz
Qts 0.78 0.78 0.83 0.78
DCR 3.6 Ω + 3.6 Ω 3.6 Ω 3.6 Ω + 3.6 Ω 3.6 Ω
Vas 2.52 Cuft 2.4 Cuft 1.14 Cuft 1.31 Cuft
Xmax (one way) 0.78˝ 0.81˝ 0.78˝ 0.81˝
Continuous Power Handling 250W 250W 200W 200W
Maximum Power Handling 500W 500W 400W 400W
12˝
SW6123DVC
12˝ Dual Voice Coil Subwoofer (4
Ω +
4
Ω
)
SW6123.4
12˝ Subwoofer (4 Ω )
10˝
SW6103DVC
10˝ Dual Voice Coil Subwoofer (4
Ω +
4
Ω
)
SW6103.4
10˝ Subwoofer (4 Ω )

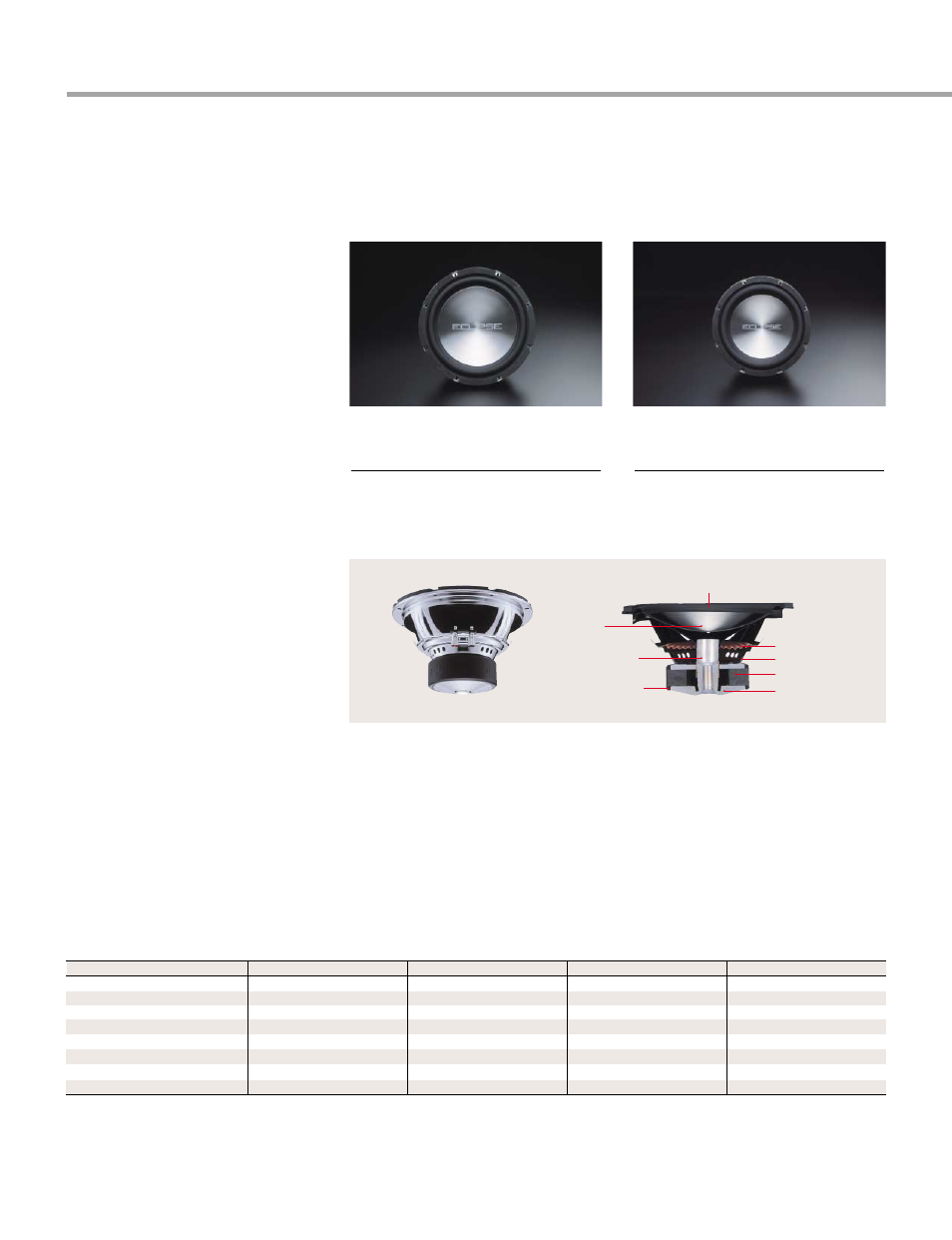

Side view of SW6100 DVC series.
Both SW6100 DVC & SW6100 Series employ CONEX ® spider santoprene surrounds,
double-stacked magnet and long-throw bottomless motor structure.
CNC Machined Vented
pole piece Magnet Boot (Rubber)
Double Stacked Magnets
Chrome Airovent Basket
Powermax Aluminum
voice coil former
CONEX ® spider
Spider woven tinsel leads
Composite
Alloy cone
Santoprene surround
•Composite Alloy Cone
•3/4-inch wide santoprene surround
•Chrome Airovent Basket
•Long-throw bottomless motor structure
•Rubber Magnet Boot
•CONEX
® spider
•Spider woven tinsel leads
•Small sealed box enclosures
•Concave inverted dust cap
•Double-stacked magnets
•Chrome push speaker terminals (accepts
10 AWG cable)
The SW6100 Series combines the most
demanded features in a subwoofer. The hybrid
aluminum cone uses a proprietary combination
of laminate materials for extraordinary
dimensional stability. Offering double the cone
excursion at 1.17˝ of any other speaker in its
class, the SW6100 delivers a healthy output of
250W. In addition, a stamped chrome speaker
basket sets off the speaker in any installation.
• Continuous power handling: 250W
• Maximum power handling: 500W • Continuous power handling: 200W
• Maximum power handling: 400W
