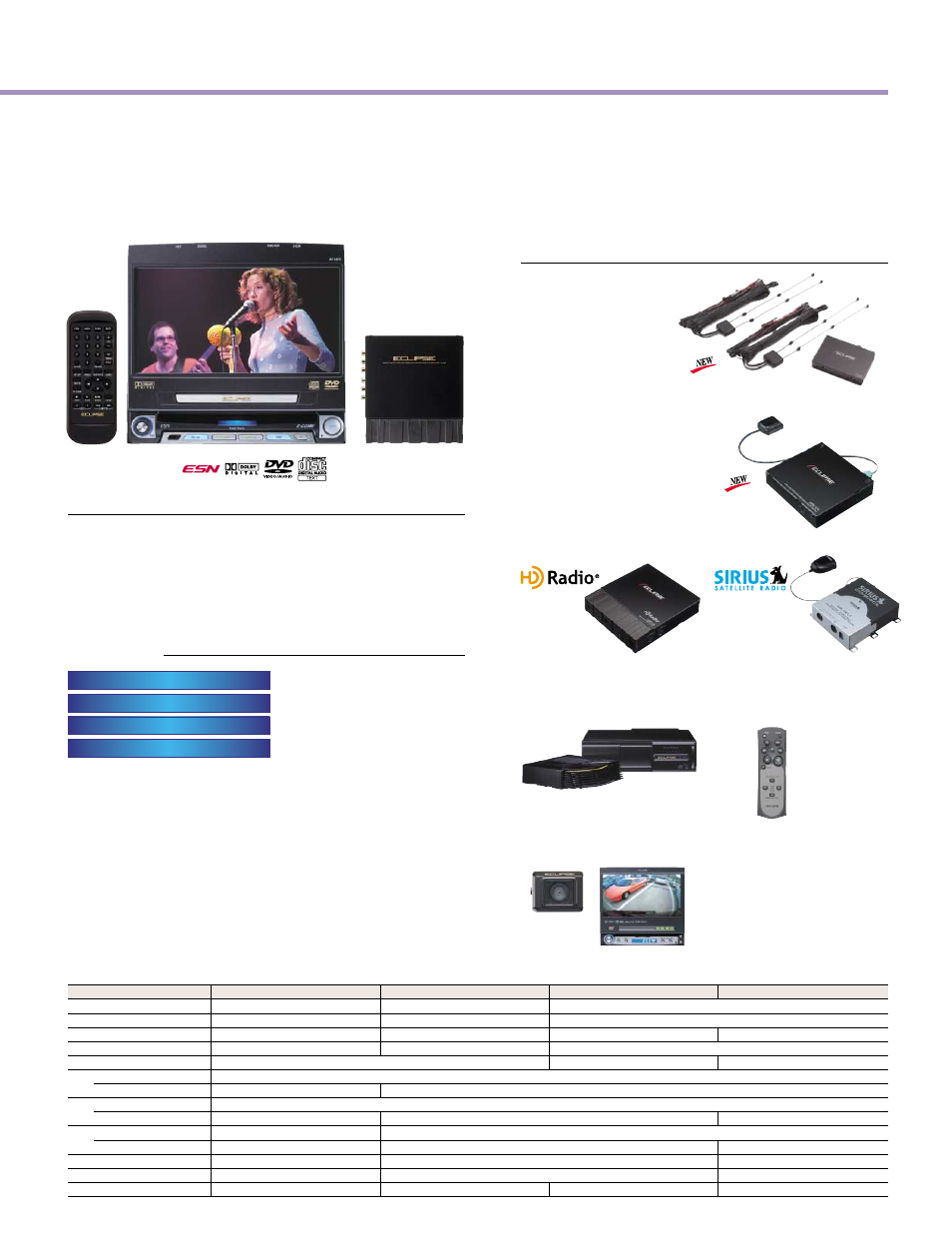

AV3424
ESN E3 7˝ Wide TFT “Touch Panel” Display
DVD Multi-Source Receiver with MP3 Decoder
AEX403
Extension code (4 meter)
Optional for: AV3423/AV3424/AV8533
The full-featured AVX3424 offers more value and versatility than most
conventional entertainment-focused head units. In particular, its DVD-
Audio playback capability allows these high-resolution audio discs with
their outstanding sound quality to be enjoyed.
For use when an extra-long cable
is required for installations.
Options
Audio/Visual
CD/CD-R/RW, MP3
DVD-Video, DVD-Audio
7˝ TFT display with touch control
2.7V preamp output
• FM/AM tuner
• CD Changer-ready
• Rear view camera-ready
• E-LAN data link system
• ESN security
Specifications
14.4V Power Supply AVX5000 AVX2494 AVX2404 AV3424
Max. Power Output 50W × 4 40W × 4 50W × 4
RMS Power Output* 15W × 4 (1kHz, 1% THD, 4 Ω ) 12W × 4 (1kHz, 1% THD, 4 Ω ) 14W × 4 (1kHz, 1% THD, 4 Ω )
Display 7˝ wide (16:9), low-glare panel 6.5˝ wide (16:9), low-glare panel 5.8˝ wide (16:9), low-glare panel 7˝ wide (16:9), low-glare panel
Display Resolution 336,960 dots (480 Ч 234 Ч 3) 1,152,000 dots (800 Ч 480 Ч 3) 280,800 dots (400 Ч 234 Ч 3)
Screen Aspect Ratio 4 types 3 types 4 types
FM Frequency Range 87.75 — 107.9MHz (200kHz step)
Usable Sensitivity 15dBf 13dBf
AM Frequency Range 530 — 1710kHz (10kHz step)
Usable Sensitivity 24 µ V 22 µ V 28 µ V
CD Frequency Response 20 — 20,000Hz, -2 ± 2dB — 0 ± 2dB 20 — 20,000Hz, 1dB
Total Harmonic Distortion 0.03% (0dB, 1kHz) 0.03% (0dB, 1kHz) 0.02% (0dB, 1kHz)
Equalizer Parametric: 63Hz — 16kHz ± 10dB, (25points) Graphic: 63Hz — 12kHz, ± 10dB —
Dimensions (W × H × D) 7˝ Ч 2˝ Ч 6-1/2˝ (180 Ч 50 Ч 165mm) 7˝ Ч 4˝ Ч 6-1/2˝ (180 Ч 100 Ч 165mm) 7˝ Ч 2˝ Ч 6-1/2˝ (180 Ч 50 Ч 165mm)
Weight 2.2kg 3.1kg 2.8kg 2.4kg
* Meets CEA2006 guidelines
BEC104
Rear View Camera
CH3083
8-Disc CD Changer
with Magazine Unit
GPS105
GPS Unit
GPS unit-ready
Connects to compatible AVX unit
for use with Area Shot to enhance
its features.
Optional for: AVX5000
Optional for: AVX5000
Optional for: AVX5000
Rear view camera-ready
CD Changer-ready Remote control-ready
TVR105
TV Tuner Unit
Simply add the TVR105 to be
able to watch all terrestrial TV
broadcasts.
Optional for: AVX5000
RMC105
Wireless Remote
SIR-ECL1
ECLIPSE COMPATIBLE
SIRIUS SATELLITE RADIO TUNER
HDR105
HD Radio Tuner Unit
TV Tuner unit-ready
