62

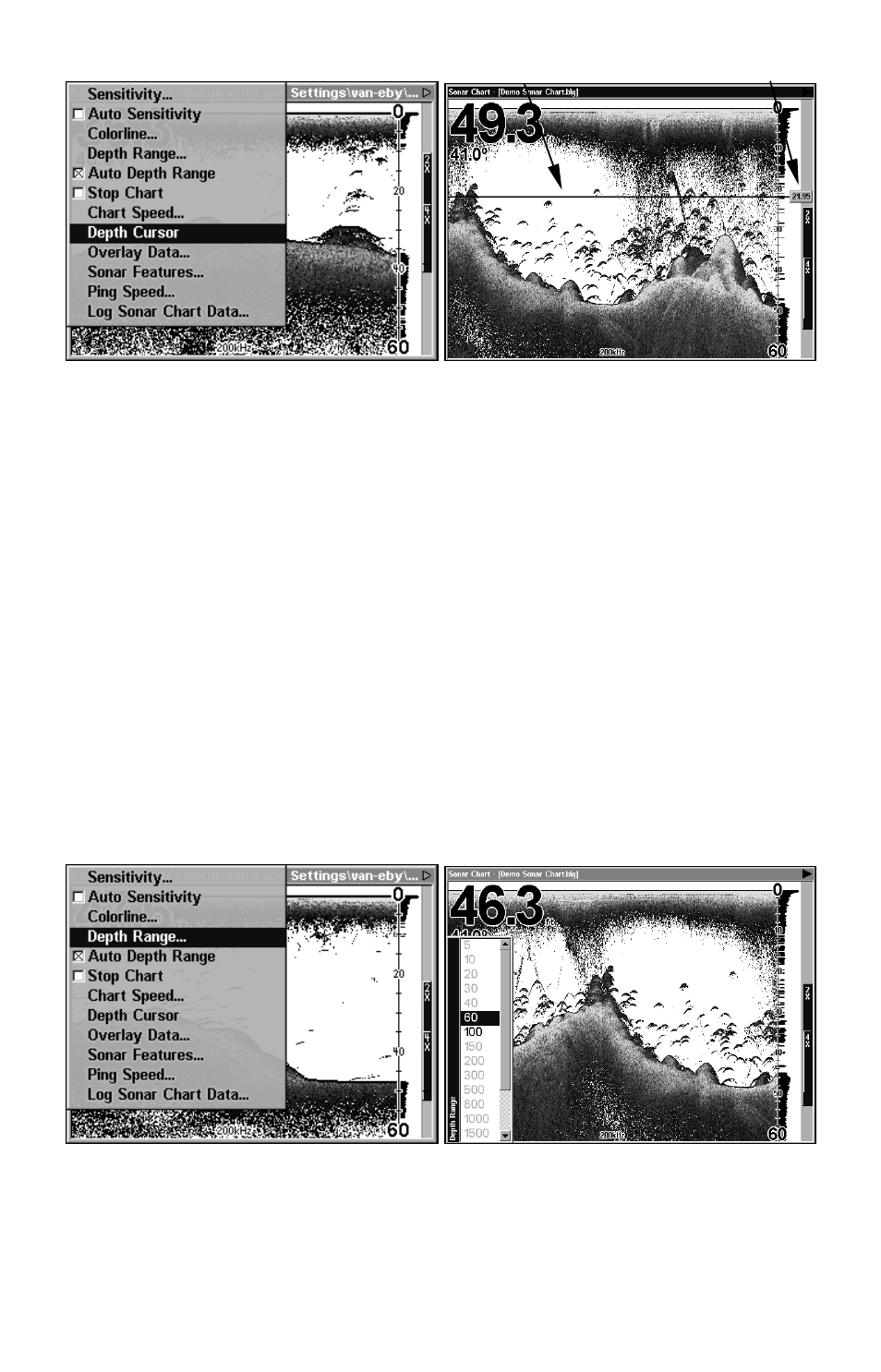

Sonar Page menu with Depth Cursor command selected (left). Sonar
chart with the depth cursor active (right). The line indicates the large
fish is 21.95 feet deep.
The cursor can be moved to any location on the screen, letting you
pinpoint the depth of a target.
1. From the Sonar Page, press MENU |
↓ to
D
EPTH
C
URSOR
| ENT .
2. The depth cursor appears. Press
↓ to lower the cursor line; press ↑ to
raise the cursor line.
3. To clear the depth cursor, press EXIT .
Depth Range - Automatic
When turned on for the first time, the bottom signal is automatically
placed in the lower half of the screen. This is called Auto Ranging and
is part of the automatic function. You can change the range to a
different depth, depending upon the bottom depth and the current
range. To do this:
1. From the Sonar Page, press MENU |
↓ to
D
EPTH
R
ANGE
| ENT .
Sonar Page menu with Depth Range command selected (left); The
Depth Range Control Scale (right).
Cursor line Depth box
