36

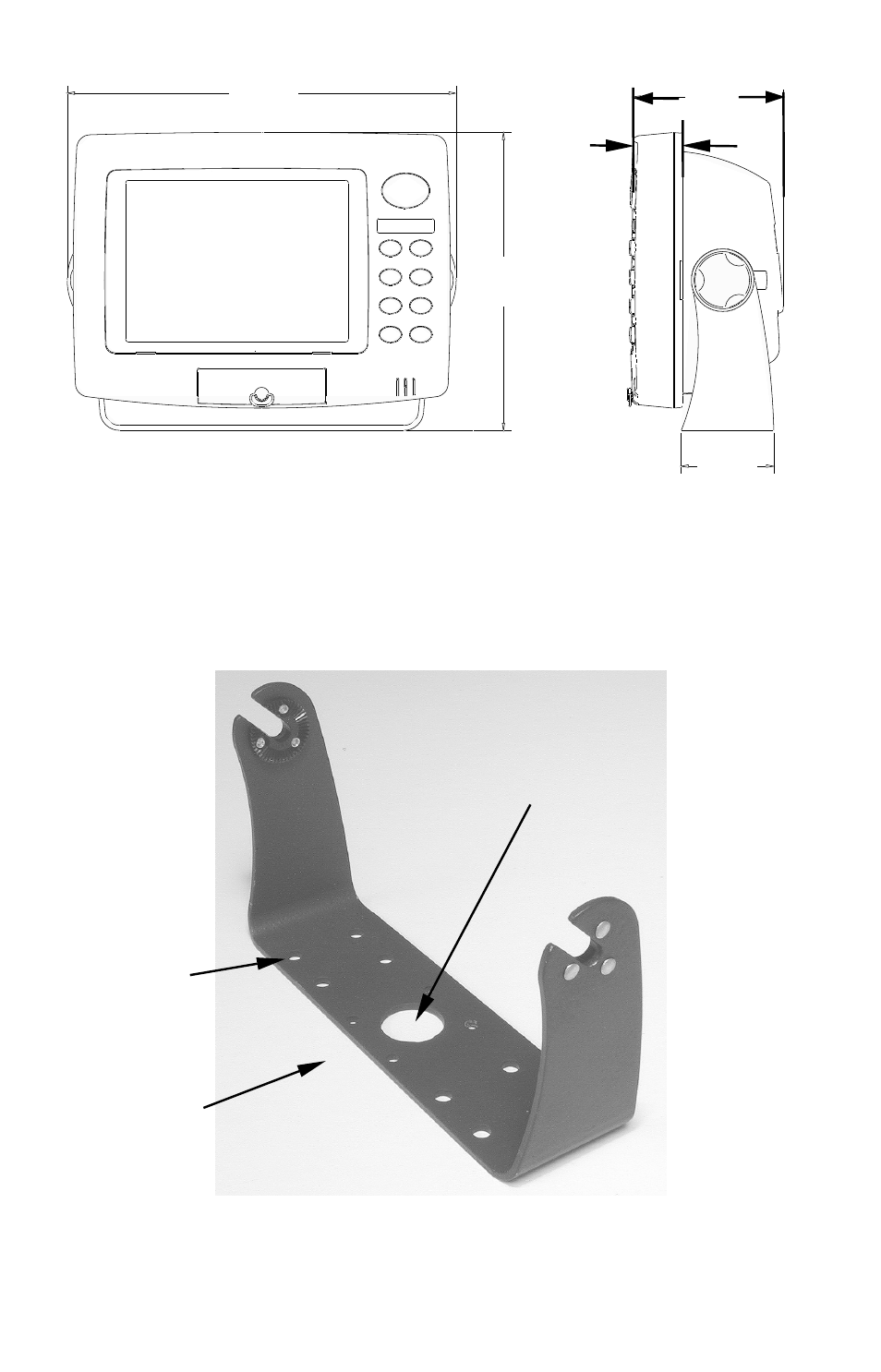

Front view (left) and side view (right) showing dimensions of the
sonar/GPS unit when mounted on gimbal bracket.
Holes in the bracket's base allow wood screw or through-bolt mounting.
You may need to place a piece of plywood on the back side of thin
fiberglass panels to reinforce the panel and secure the mounting
hardware.
Install the gimbal bracket. Place the bracket so the arms slope toward
the front of your unit.
Front
Screw
mounting
hole
Cable hole
Millimeter
[Inch]
244
[9.58]
94
[3.61]
56.9
[2.24]
185
[7.34]
37.1
[1.37]
