Cold Drink Center (327/328) Operator’s Guide
August, 2003
Page 12
3280020
Adjustments and Minor Maintenance
1.

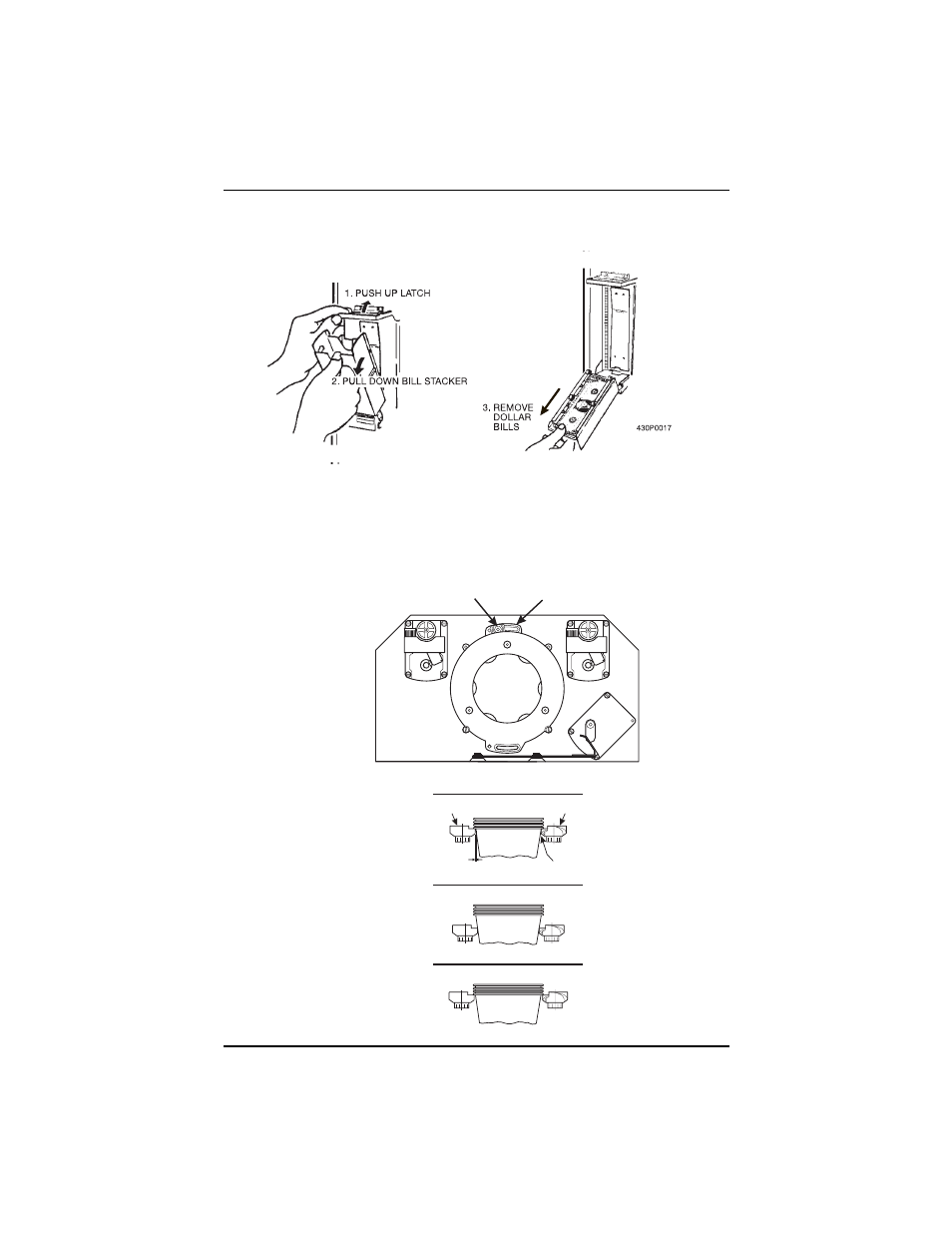

Emptying the bill stacker:
2.
Cup mechanism adjustment.
a. Place seven cups in the cup ring.
b. Observe the clearance as shown in view B.
c. If necessary adjust by first loosening the adjustment arm screw (view A).
d. Move adjustment arm until correct clearance is achieved.
e. Hold adjustment arm in place and tighten adjustment arm screw.
ADJUSTED
TOO LOOSE
ADJUSTED
TOO TIGHT
ADJUSTMENT
ARM
VIEW FROM BENEATH
LOOSEN SCREW
MOVE ARM
CORRECT
ADJUSTMENT
CUP
CAM
CUP
CAM
This clearance is just
large enough to allow
cup ejection
This side is snug
against cam
327p0015
View A
View B
