NEW EPSON ActionPC 5000, ActionTower 5000

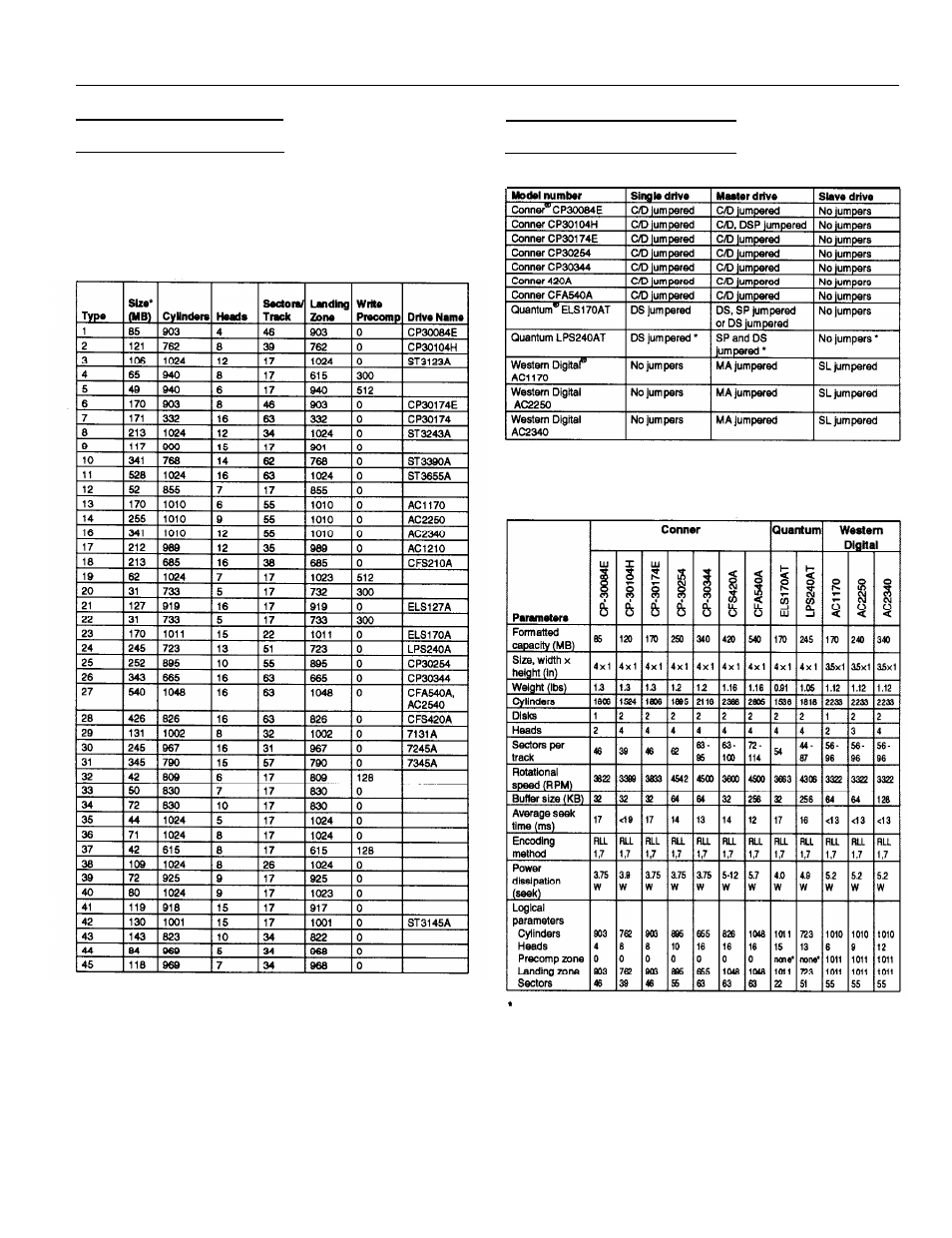

Hard Disk Drive Types Drive Option Information
Your computer comes with a hard disk auto-sensing feature.
When you select the Autotype Fixed Disk option, the
system detects the type of hard disk drive you have installed
and fills in the drive information using values in the
following table.
IDE hard disk drive jumper settings
Hard disk drive types
l
Actual formatted size may be slightly different than size on drive label; you
cannot change this value.
l
CS (cable selection) can also be jumpered for any configuration. When CS is
used,
the drive is a master if pin 28 is grounded or a slave if pin 28 is not
grounded.
Hard disk drive options for high-capacity, 1-inch IDE drives
Select 1 or none for the precomp value. If neither of these options are
available, select the maximum available precomp value.
8/94 NEW EPSON ActionPC 5000, ActionTower 5000 - 7
