Introduction
3
Temperature:
Operating: 32~131°F (0~55°C)
Storage: -4~158°F(-20~70°C)
Humidity: 0-90% (Noncondensing)
Certification: FCC, CE
1.4 Physical Description

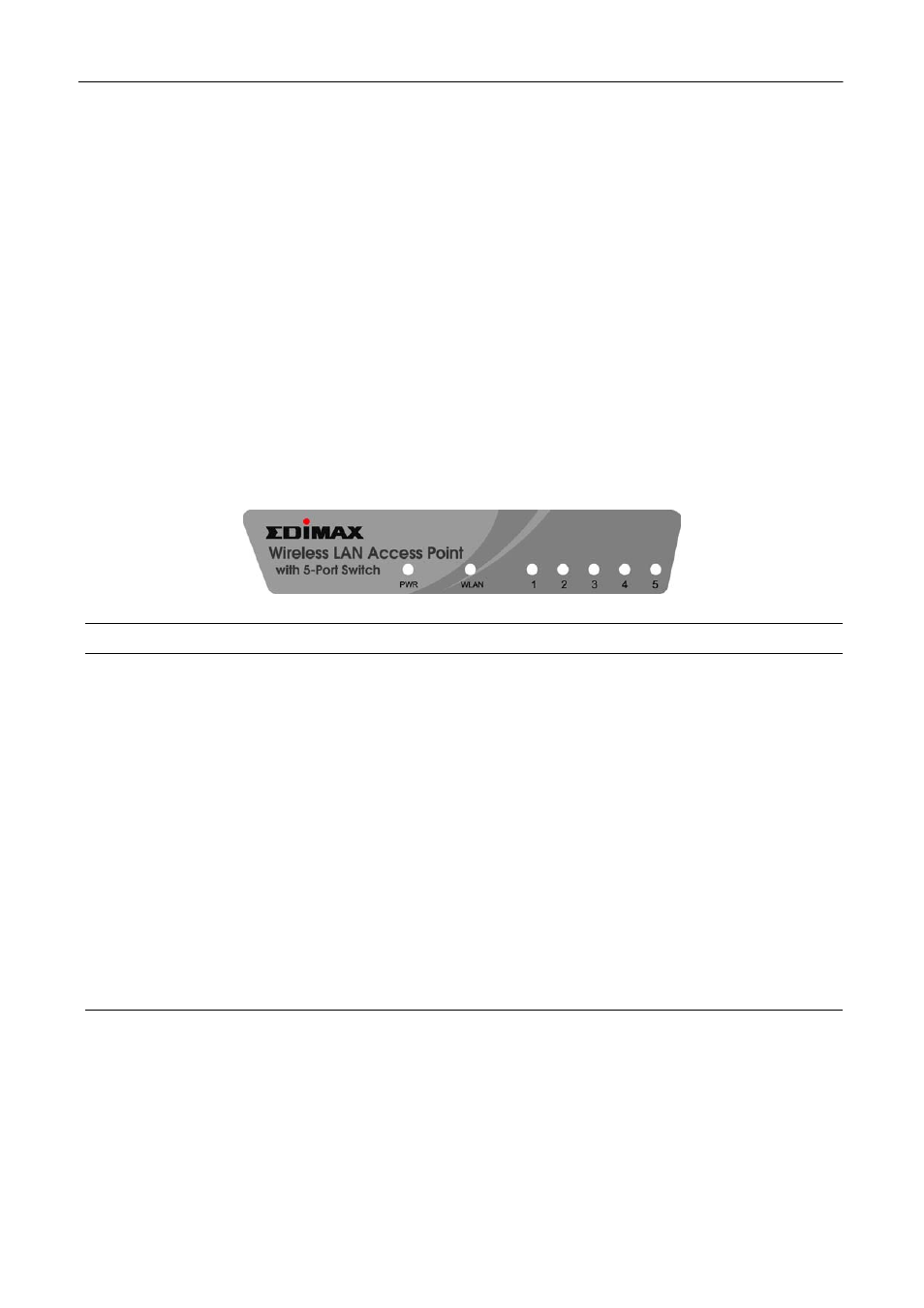

Front Panel
On the Access Point’s front panel there are LED lights that inform you of the Access
Point’s current status. Below is an explanation of each LED.
LED Color Status Description
Lit Power is supplied.
Power Green
Off No Power.
Flash Antenna is transmitting or receiving data. Wireless
TX/RX
Green
Off Antenna is not transmitting or receiving data.
Lit A valid link is established.
Flash Data packets are received.
Amber
(100Mbps)
Off No link is established.
Lit A valid link is established.
Flash Data packets are received.
LAN
Link/Activity
Green
(10Mbps)
Off No link is established.
Back Panel
Access Point’s connection ports are located on the back panel. Below is the
description of each connection port.
