Kichler 300008 - Manual (Page 9)

8
Kimberley
TM

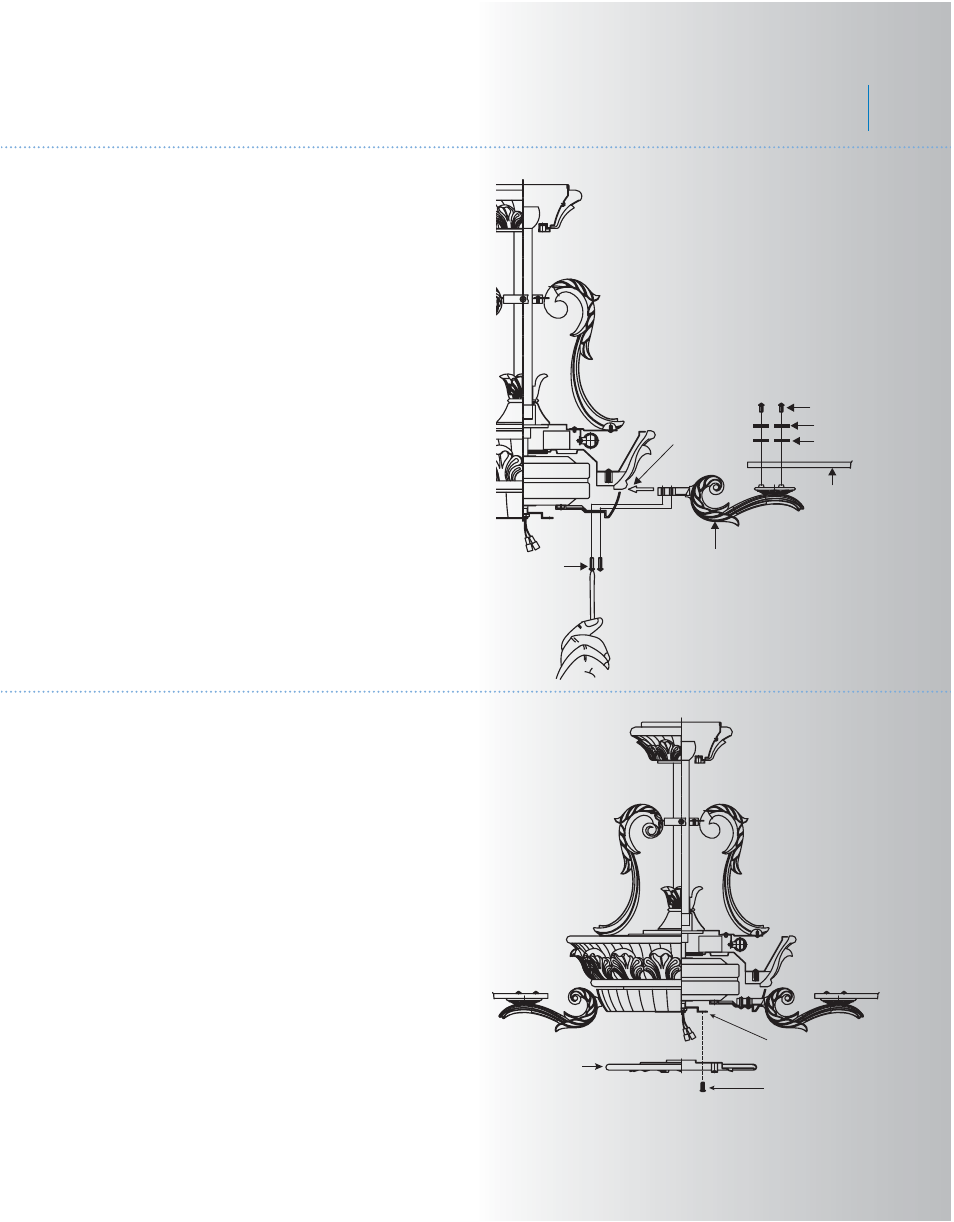

9. ATTACHING THE FAN BLADES
Fig. 18
Fig. 19
10. INSTALLING THE MOUNTING PLATE
Step 1 Attach the blade to the blade bracket
using the screws, washers and fiber washers
as shown in Figure 18. Start screw into
bracket. Repeat for the two remaining screws.
Step 2 Make sure the blade is straight and
tighten each screw.
Step 3 Fasten blade assembly to motor using
"Pre-Installed" mounting screws in the blade
bracket
1. Remove 1 of the 3 screws from the
mounting ring and loosen the other 2 screws
(do not remove). (Fig. 19)
2. Place the key holes on the mounting plate
over the 2 screws previously loosened from
the mounting ring, turn mounting plate until it
locks in place at the narrow section of the key
holes. Secure by tightening the 2 screws
previously loosened and the one previously
removed. (Fig. 19)
Mounting
plate
Mounting ring
Screws
Screws
Blade
Blades bracket
Screws
Slot
Washers
Fiber
washers
