33

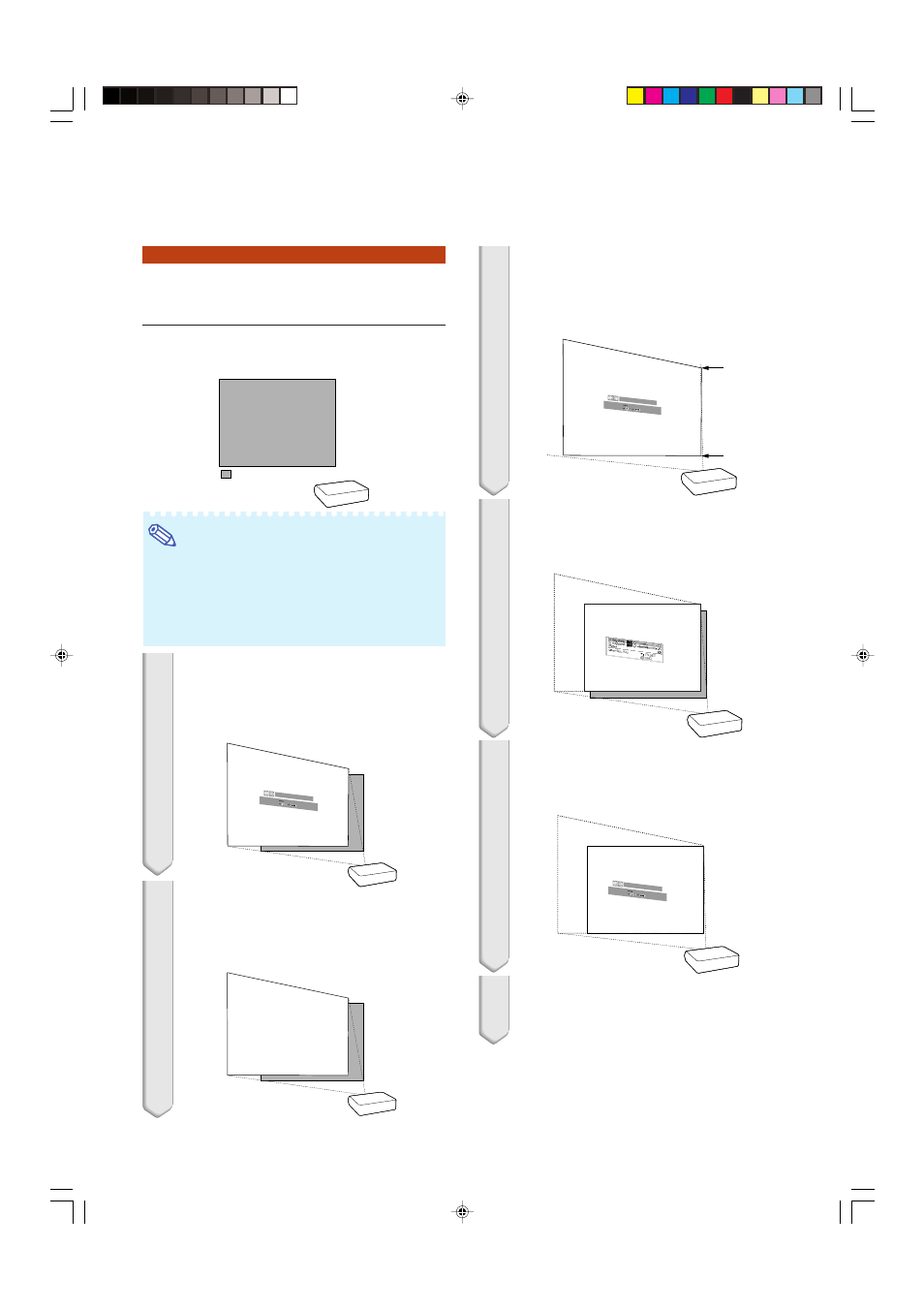

Placement of the Projected Image
Using the Keystone Correction
Place the projector at a distance from the screen that
allows images to be projected onto the screen by referring
to “Screen Size and Projection Distance” on page 17.
: Screen area
Note
• The aspect ratio of the projected image also shifts
slightly when the “H Keystone” and “V Keystone”
functions are adjusted simultaneously.
• If you cannot correct trapezoidal distortion with
Keystone correction, change the placement
position of the projector.
1
Project an image onto the screen.
Adjust the focus until the image on
the screen comes into focus. (See
page 30.)
ZOOM/FOCUS
END
ZOOM FOCUS
2
Change the projection angle moving
the projector or using the adjuster to
properly project images onto the
screen. (See page 31).
3
Align the edge of the screen clos-
est to the projector with the image
by adjusting the zoom and the
adjuster. (See pages 30 and 31.)
ZOOM/FOCUS
END
ZOOM FOCUS
Align
Align
4
Adjust the Keystone function so that the
size of the projected image matches the
screen size. (See page 32.)
5
Align the image on the screen by
adjusting the zoom function and
the adjuster.
ZOOM/FOCUS
END
ZOOM FOCUS
6
Adjust the focus so that the projected
image is in focus at the center of the
screen. (See page 30.)
