20
Terminal on the
projector
INPUT 1, 2
INPUT 1, 2
INPUT 5/DIGITAL
INPUT 5/DIGITAL
INPUT 4
INPUT 4
INPUT 3
INPUT 3
RS-232C
Equipment
Audio-visual
equipment
Computer
Computer
Terminal on
connected equipment
Component
video output
terminal
Terminal
for using
the
dedicated
cable
DVI output
terminal
RGB output
terminal
Video
output
terminal
Terminal
for using
the
dedicated
cable
S-video
output
terminal
Terminal
for using
the
dedicated
cable
RS-232C
terminal
Cable
Component cable (commercially available)
Dedicated cable attached to the connected equipment
DVI cable (commercially available)
Video cable (supplied)
Dedicated cable attached to the connected equipment
S-video cable (commercially available)
Dedicated cable attached to the connected equipment
RS-232C cable (commercially available)

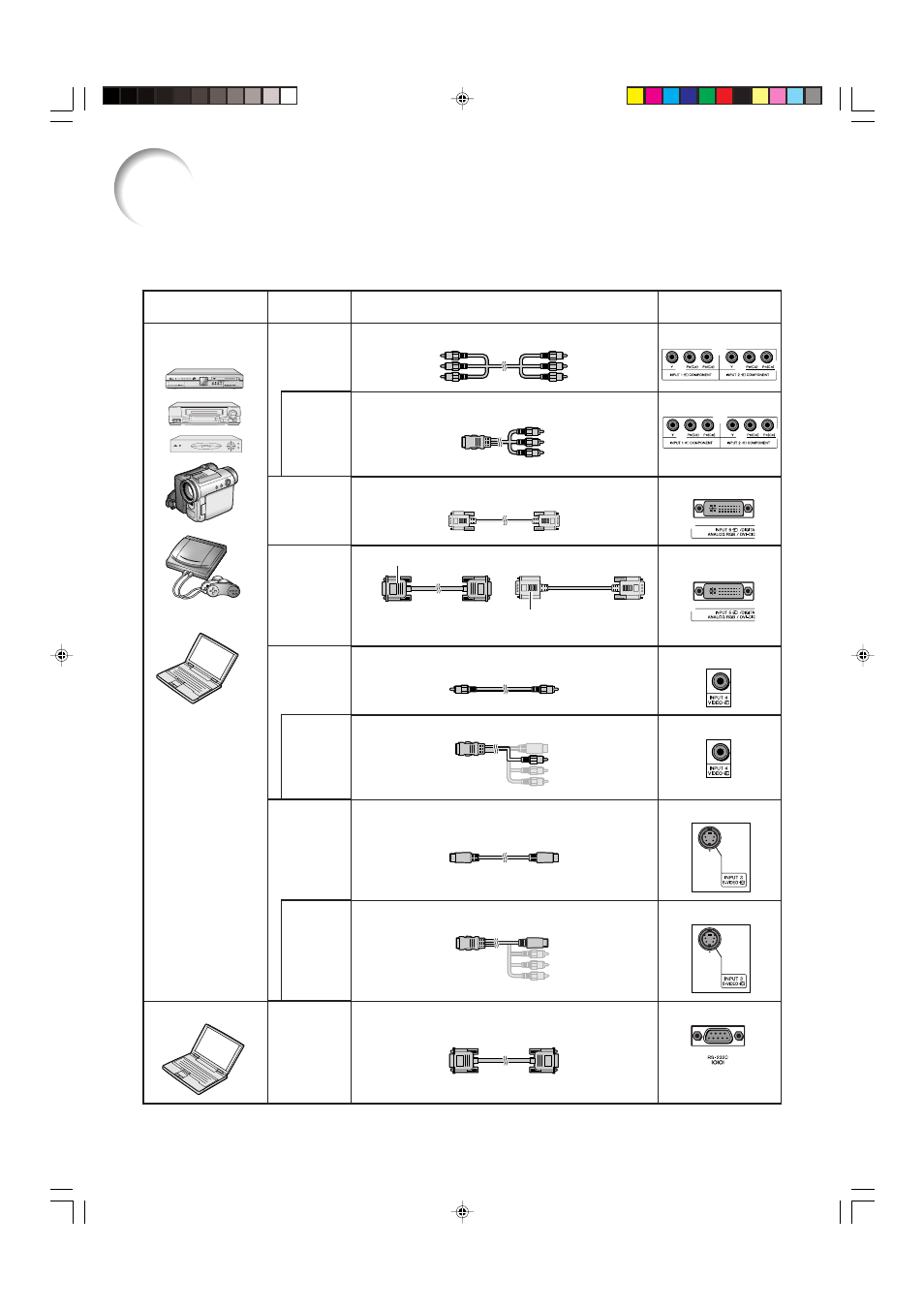

Samples of Cables for Connection
• For more details of connection and cables, refer to the owner’s manual of the connecting equipment.
• You may need other cables or connectors not listed below.
DVI to 15-pin D-sub adaptor
(commercially available)
RGB cable (commercially available)
