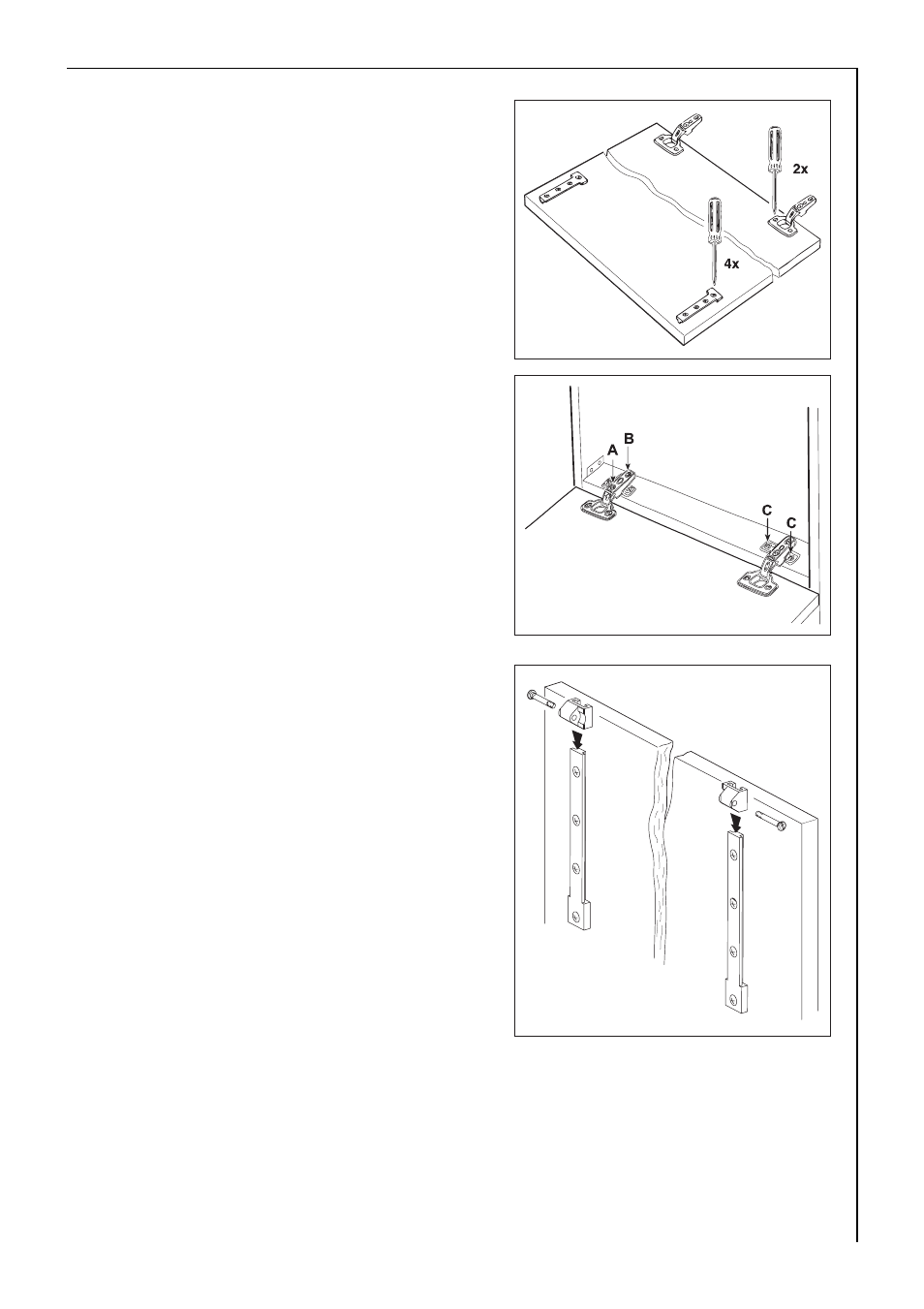

8. Screw the hinges (using 4 counter-
sunk head wood screws, not supplied)
and the guides (using 8 Spax screws
4.0x20, pozidrive) to the hinged door.
9. Snap the hinges on the hinged door
into the bottom units of the hinges.
Hold the hinged door carefully, so
that the hinges are not bent.
10. Adjust the hinges using the screws A,
B and C to match the kitchen unit
(width of gap, etc.)
11. Insert the guiders into the guides.
