25

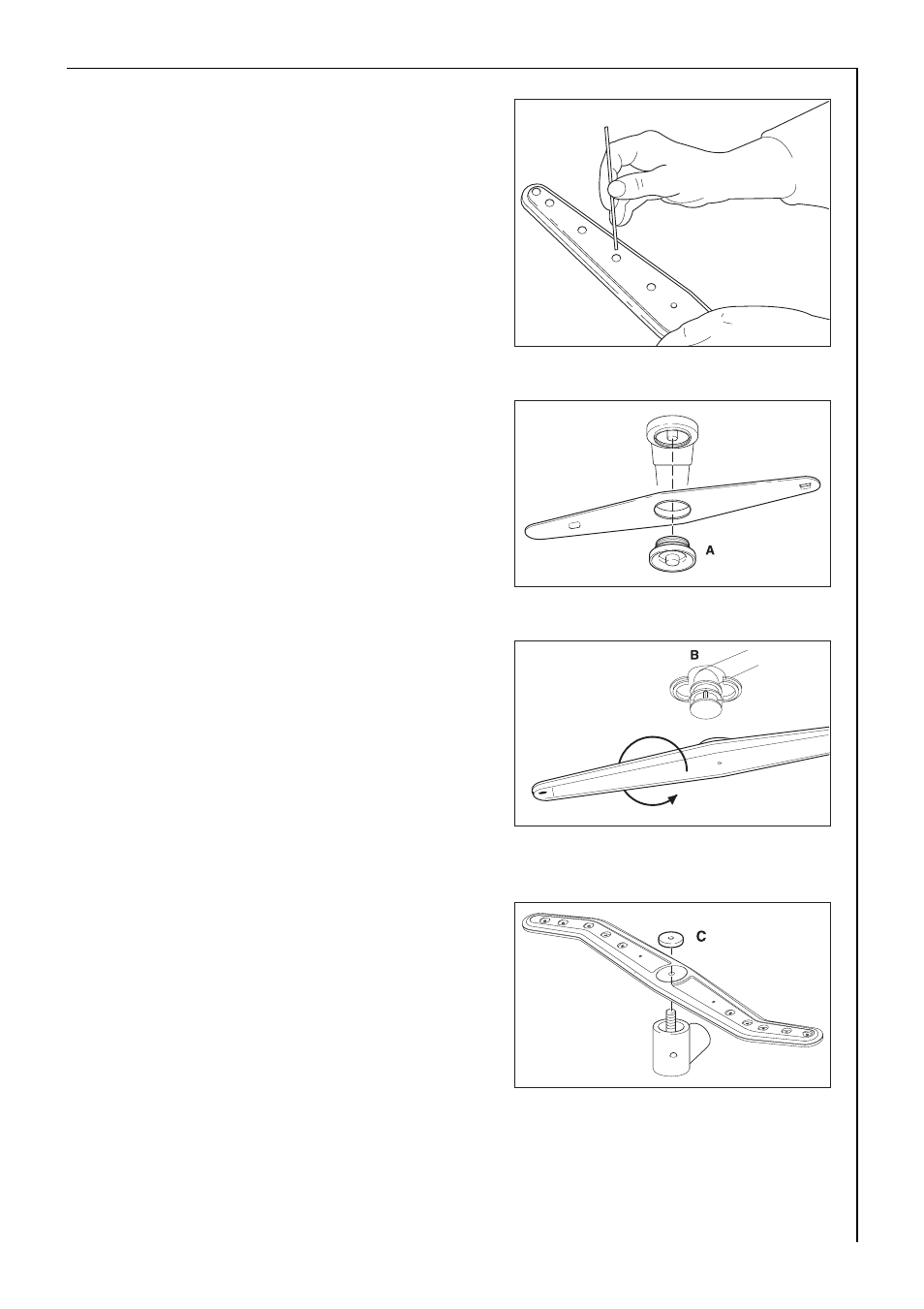

Cleaning the spray arms
Regularly check the nozzles in the
three spray arms for blockages. If
necessary, clean the nozzles with a
piece of fine wire or a fine needle
and a strong water jet.
1
Do not damage the nozzle openings.
Top spray arm
1. Undo the fixing screw (A) by turning
anti-clockwise.
2. Pull the spray arm off the shaft.
3. Clean the spray arm and the fixing
screw.
4. Fasten the spray arm with the fixing
screw (A) turning clockwise.
Middle spray arm
1. Remove the middle spray arm by
turning it laterally.
The two-part spray arm bearing is
held together by a tension spring (B)
2. Clean spray arm nozzles.
3. To re-fit, press the middle spray arm
upwards until you feel it snap into
place.
Lower spray arm
1. Undo the fixing screw (C) by turning
anti-clockwise.
2. Pull the spray arm off the shaft.
3. Clean the spray arm and the fixing
screw.
4. Fasten the spray arm with the fixing
screw (C) turning clockwise.
