35

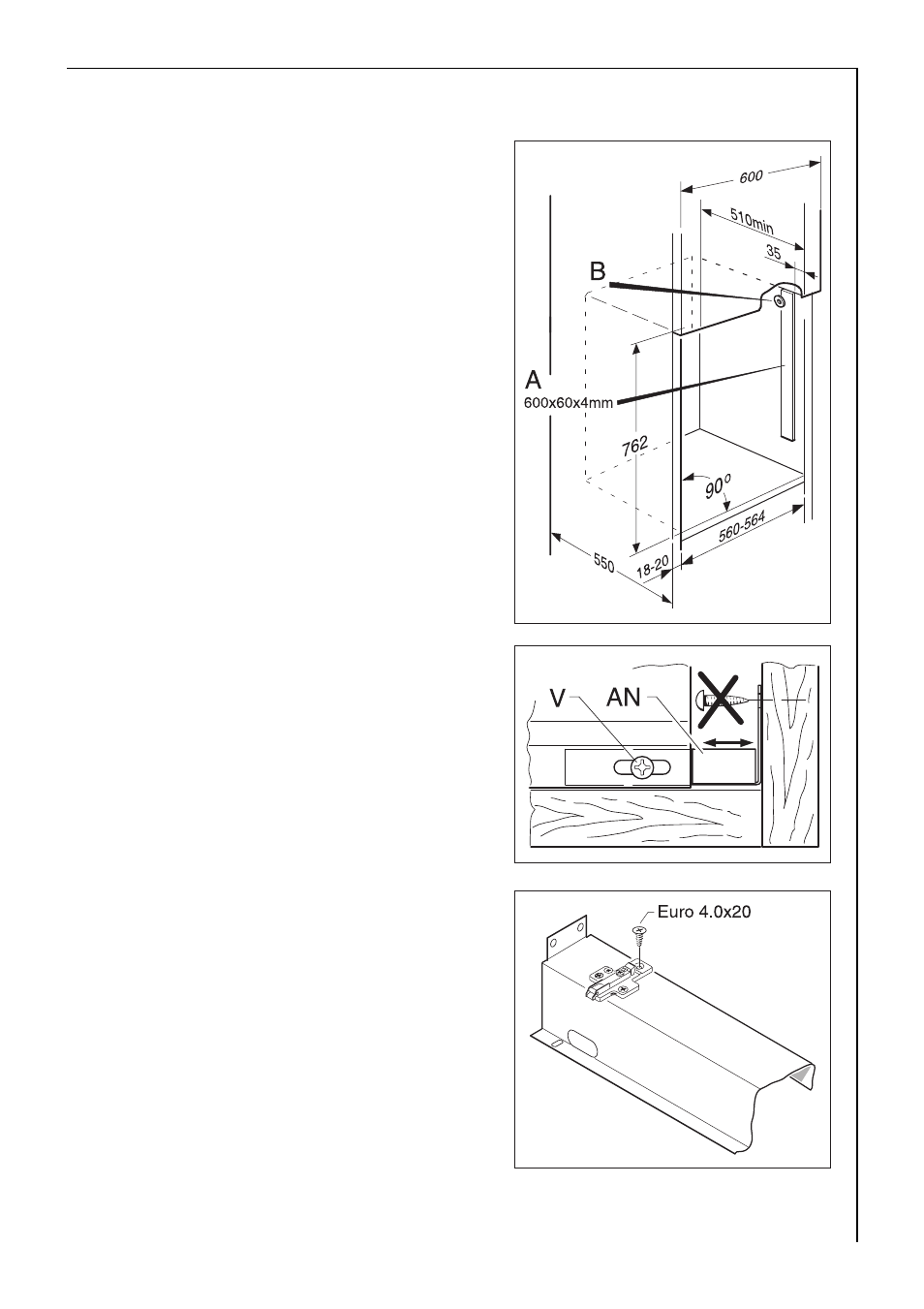

Fitting the hinged door
1. Fit the two lateral bars A as in the
figure opposite. Use aligning disks B.
2. Stand the machine in front of the
kitchen unit into which it is to be in-
stalled. Place cable and hoses into the
neighbouring unit.
As you push the machine in, keep on
pulling the cable and hoses through
and ensure that they do not become
kinked.
3. Align the machine laterally in the
plinth area with the angle AN, tight-
en the screw V slightly.
4. Screw the bottom unit of the hinge
onto the hinge support (use Euro
screws 4.0x20.).
