36

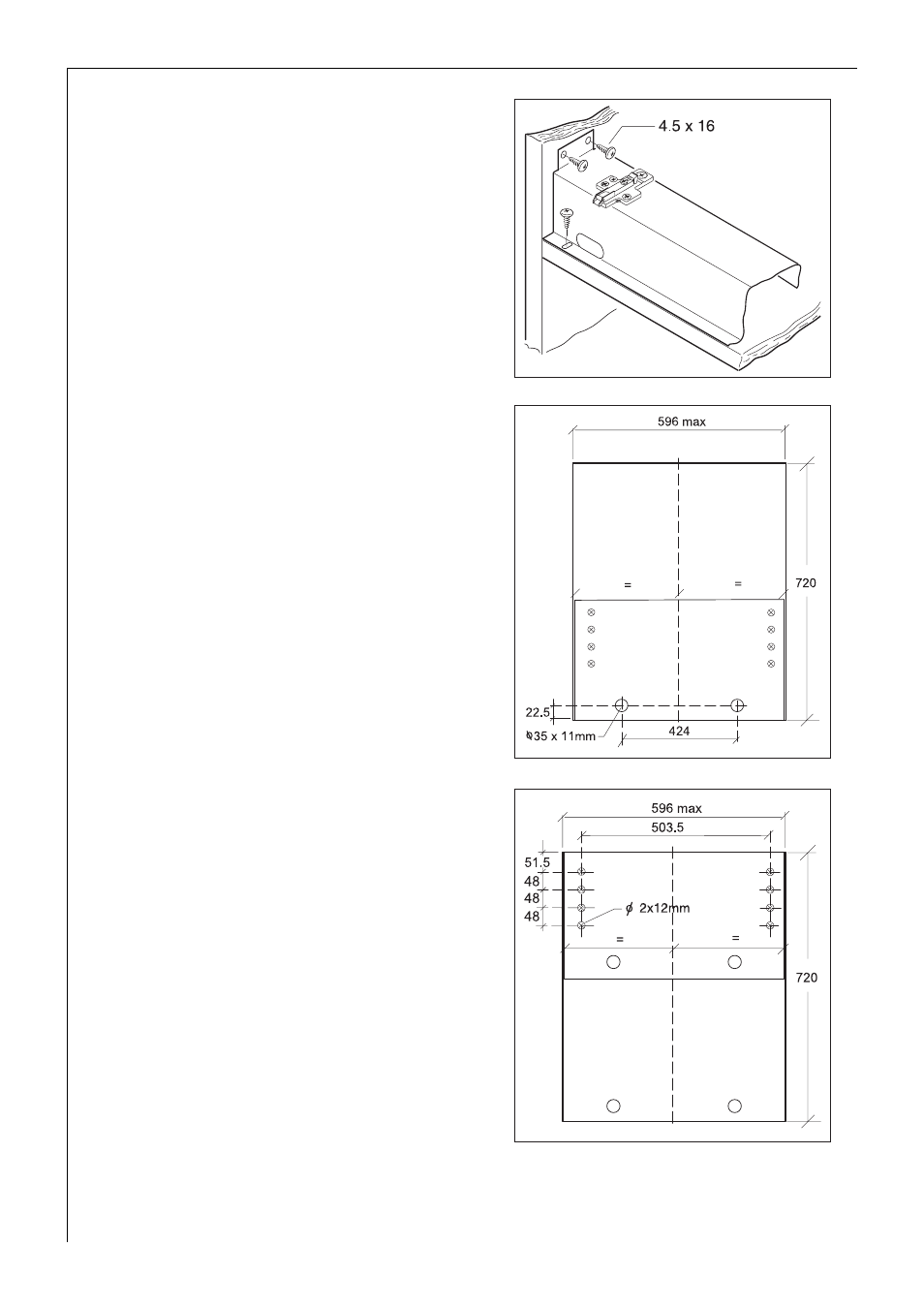

5. Place the hinge supports on the floor
of the recess and align, and screw on
using 6 wood screws (flat head
4.5x16).
6. Using the drilling template supplied,
mark out and drill two holes a
(ø35 mm, 11 mm deep) for the hinges
at the bottom of the hinged door. To
do this, align the drilling template
with the bottom edge of the hinged
door.
7. Using the drilling template supplied,
mark out and drill 8 holes b for the
two guides (ø2 mm, 12 mm deep) at
the top of the hinged door. To do this,
align the drilling template with the
top edge of the hinged door.
a
b
