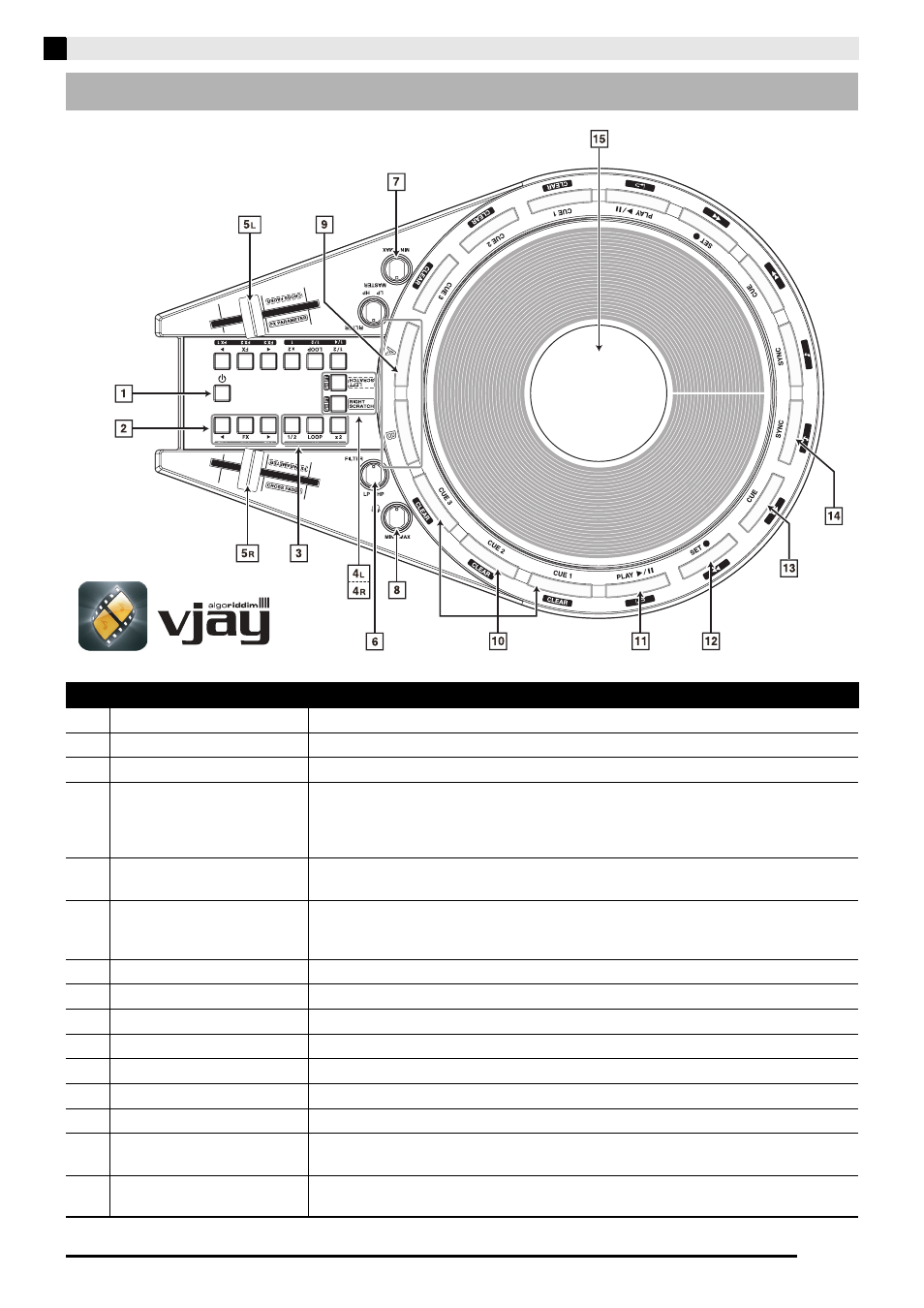

Part Names and Functions
No. Controller: Description:
1 P (Power) button Turns power on or off.
2 EFFECT area Controls the Visual Effect function.
3 AUTO LOOP area Controls the AUTO LOOP function.
4R
4L
SCRATCH direction buttons
(SHIFT button) Pressing the RIGHT SCRATCH button (4R) enables right-hand operation of the JOG
platter and left-hand operation of the CROSSFADER. Pressing the LEFT SCRATCH
button (4L) enables left-hand operation of the JOG platter and right-hand operation of
the CROSSFADER.
5R
5L
CROSSFADER
(FX PARAMETER) Operating the JOG platter fades in the image and audio of the deck assigned by the vjay
software. (Changes Visual Effect Parameter settings.)
6
FILTER knob For images, adjusts the Visual Effect white balance. For audio, rotating to the right of
center adjusts the high pass filter (treble only output), while rotating to the left adjusts
the low pass filter (bass only output).
7 MASTER OUT LEVEL knob Adjusts the output level from MASTER OUT and speaker OUT.
8 HEADPHONE LEVEL knob Adjusts the headphone output level.
9 DECK select buttons Uses to select the deck to be manipulated by the JOB platter.
10 CUE POINT area Controls the CUE POINT function.
11 PLAY/PAUSE button Starts or pauses playback.
12 SET CUE button Sets a CUE POINT (START POINT).
13 CUE PLAY button Jumps to a preset CUE POINT (START POINT) and starts playback.
14
SYNC button Syncs with the speed (BPM) of the opposite side deck. Pressing this button during
playback syncs with BPM and timing.
15
JOG platter Enables image and audio scratch and backspin operations with all the feel of a 7-inch
record.
