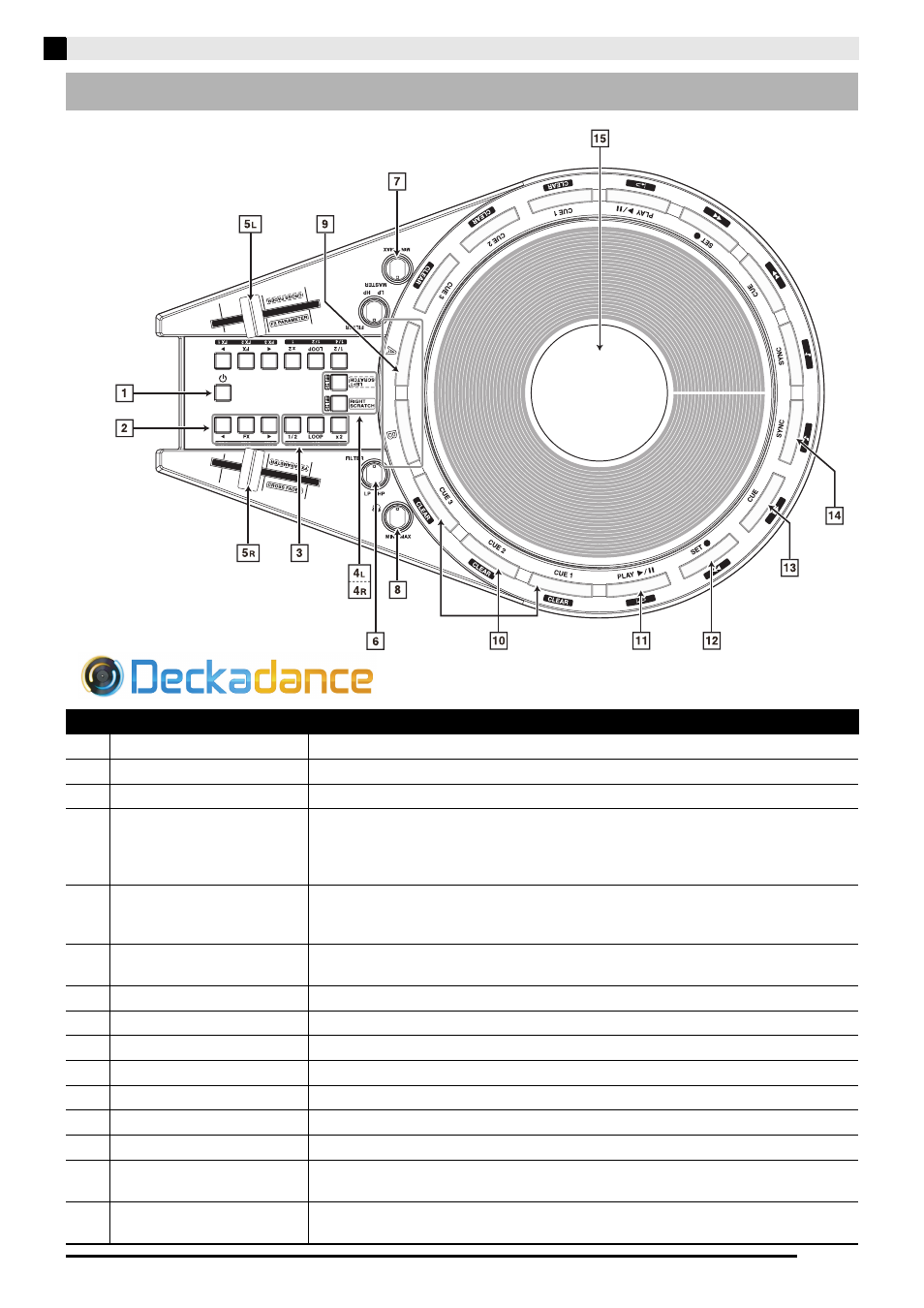

Part Names and Functions
No. Controller: Description:
1 P (Power) button Turns power on or off.
2 EFFECT area Toggle the FX groups (FX1, FX2, FX3) of each deck between ON and OFF.
3 AUTO LOOP area Controls the LOOP operations (LOOP ON/OFF, LOOP length setting) of each deck.
4R
4L
SCRATCH direction buttons
(SHIFT button) Pressing the RIGHT SCRATCH button (4R) enables right-hand operation of the JOG
platter and left-hand operation of the CROSSFADER. Pressing the LEFT SCRATCH
button (4L) enables left-hand operation of the JOG platter and right-hand operation of
the CROSSFADER.
5R
5L
CROSSFADER
(FX PARAMETER) Moving the JOG platter fades in the audio of the deck assigned by the DJ software.
When operating as an FX PARAMETER slider, adjust the effect parameters (FX1, FX2,
FX3) of the FX group.
6
FILTER knob Rotating to the right of center adjusts the high pass filter (treble only output), while
rotating to the left adjusts the low pass filter (bass only output).
7 MASTER OUT LEVEL knob Adjusts the output level from MASTER OUT and speaker OUT.
8 HEADPHONE LEVEL knob Adjusts the headphone output level.
9 DECK select buttons Used to select the deck to be manipulated by the JOB platter.
10 CUE POINT area Controls the CUE POINT function.
11 PLAY/PAUSE button Starts or pauses song playback.
12 SET button (CUP button) Returns to the last set CUE point. Song is played back when the CUP button is released.
13 CUE button Returns to the last set CUE point. Song is played back when the CUE button is pressed.
14
SYNC button Syncs with the speed (BPM) of the opposite side deck. Pressing this button during
playback syncs with BPM and timing.
15
JOG platter Enables image and audio scratch and backspin operations with all the feel of a 7-inch
record.
