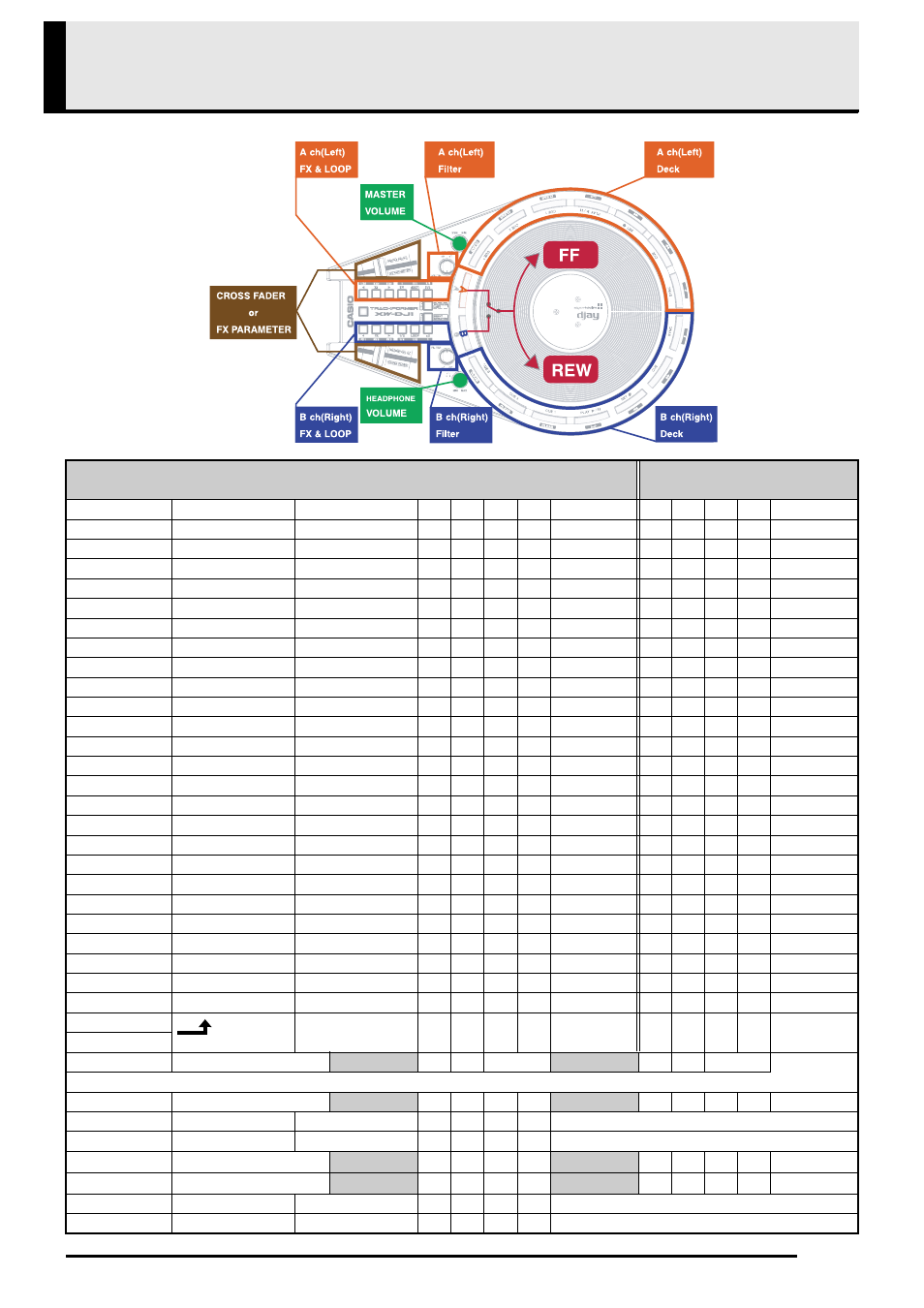

XW-DJ1 MIDI Implementation Chart
Marking + [SHIFT] button Group Name
MIDI Message (XW-DJ1
→
Computer) MIDI Message [LED] (Computer
→
XW-DJ1)
MSB MIDI LSB MSB MIDI LSB
CUE3 : DELETE CUE3 B ch(Right) Deck 0x09 0x91 0x27 D#2 OFF=00,ON=7F 0x09 0x91 0x27 D#2 OFF=00,ON=7F
CUE2 : DELETE CUE2 B ch(Right) Deck 0x09 0x91 0x28 E2 OFF=00,ON=7F 0x09 0x91 0x28 E2 OFF=00,ON=7F
CUE1 : DELETE CUE1 B ch(Right) Deck 0x09 0x91 0x29 F2 OFF=00,ON=7F 0x09 0x91 0x29 F2 OFF=00,ON=7F
PLAY/PAUSE : BACK TO START B ch(Right) Deck 0x09 0x91 0x2A F#2 OFF=00,ON=7F 0x09 0x91 0x2A F#2 OFF=00,ON=7F
SET : REW B ch(Right) Deck 0x09 0x91 0x2B G2 OFF=00,ON=7F 0x09 0x91 0x2B G2 OFF=00,ON=7F
CUE : FF B ch(Right) Deck 0x09 0x91 0x2C G#2 OFF=00,ON=7F 0x09 0x91 0x2C G#2 OFF=00,ON=7F
SYNC : MATCH KEY B ch(Right) Deck 0x09 0x91 0x2D A2 OFF=00,ON=7F 0x09 0x91 0x2D A2 OFF=00,ON=7F
FX [W] : FX1 B ch(Right) FX&LOOP 0x09 0x91 0x20 G#1 OFF=00,ON=7F 0x09 0x91 0x20 G#1 OFF=00,ON=7F
FX [FX] : FX2 B ch(Right) FX&LOOP 0x09 0x91 0x21 A1 OFF=00,ON=7F 0x09 0x91 0x21 A1 OFF=00,ON=7F
FX [X] : FX3 B ch(Right) FX&LOOP 0x09 0x91 0x22 Bb1 OFF=00,ON=7F 0x09 0x91 0x22 Bb1 OFF=00,ON=7F
LOOP [x1/2] : LOOP [1/4] B ch(Right) FX&LOOP 0x09 0x91 0x23 B1 OFF=00,ON=7F 0x09 0x91 0x23 B1 OFF=00,ON=7F
LOOP [ON/OFF] : LOOP [1/2] B ch(Right) FX&LOOP 0x09 0x91 0x24 C2 OFF=00,ON=7F 0x09 0x91 0x24 C2 OFF=00,ON=7F
LOOP [x2] : LOOP [1] B ch(Right) FX&LOOP 0x09 0x91 0x25 C#2 OFF=00,ON=7F 0x09 0x91 0x25 C#2 OFF=00,ON=7F
CUE3 : DELETE CUE3 A ch(Left) Deck 0x09 0x90 0x27 D#2 OFF=00,ON=7F 0x09 0x90 0x27 D#2 OFF=00,ON=7F
CUE2 : DELETE CUE2 A ch(Left) Deck 0x09 0x90 0x28 E2 OFF=00,ON=7F 0x09 0x90 0x28 E2 OFF=00,ON=7F
CUE1 : DELETE CUE1 A ch(Left) Deck 0x09 0x90 0x29 F2 OFF=00,ON=7F 0x09 0x90 0x29 F2 OFF=00,ON=7F
PLAY/PAUSE : BACK TO START A ch(Left) Deck 0x09 0x90 0x2A F#2 OFF=00,ON=7F 0x09 0x90 0x2A F#2 OFF=00,ON=7F
SET : REW A ch(Left) Deck 0x09 0x90 0x2B G2 OFF=00,ON=7F 0x09 0x90 0x2B G2 OFF=00,ON=7F
CUE : FF A ch(Left) Deck 0x09 0x90 0x2C G#2 OFF=00,ON=7F 0x09 0x90 0x2C G#2 OFF=00,ON=7F
SYNC : MATCH KEY A ch(Left) Deck 0x09 0x90 0x2D A2 OFF=00,ON=7F 0x09 0x90 0x2D A2 OFF=00,ON=7F
FX [W] : FX1 A ch(Left) FX&LOOP 0x09 0x90 0x20 G#1 OFF=00,ON=7F 0x09 0x90 0x20 G#1 OFF=00,ON=7F
FX [FX] : FX2 A ch(Left) FX&LOOP 0x09 0x90 0x21 A1 OFF=00,ON=7F 0x09 0x90 0x21 A1 OFF=00,ON=7F
FX [X] : FX3 A ch(Left) FX&LOOP 0x09 0x90 0x22 Bb1 OFF=00,ON=7F 0x09 0x90 0x22 Bb1 OFF=00,ON=7F
LOOP [x1/2] : LOOP [1/4] A ch(Left) FX&LOOP 0x09 0x90 0x23 B1 OFF=00,ON=7F 0x09 0x90 0x23 B1 OFF=00,ON=7F
LOOP [ON/OFF] : LOOP [1/2] A ch(Left) FX&LOOP 0x09 0x90 0x24 C2 OFF=00,ON=7F 0x09 0x90 0x24 C2 OFF=00,ON=7F
LOOP [x2] : LOOP [1] A ch(Left) FX&LOOP 0x09 0x90 0x25 C#2 OFF=00,ON=7F 0x09 0x90 0x25 C#2 OFF=00,ON=7F
RIGHT SCRATCH
0x09 0x90 0x2E A#2 OFF=00,ON=7F 0x09 0x90 0x2E A#2 OFF=00,ON=7F
LEFT SCRATCH
JOG PLATTER : [A] =ON or [B] =ON [A] = ON 0x0B 0xB2 0x10 [B] = ON 0x0B 0xB2 0x11
* Clockwise : 41(slow rotate 1/300 round), 42(rotate 2/300 round), 43(3/300),,,(fast) / Counter Clockwise:3F(slow rotate 1/300 round), 3E(rotate 2/300 round), 3D(3/300),,,(fast)
JOG TOUCH : [A] =ON or [B] =ON [A] = ON 0x09 0x90 0x3B B3 [B] = ON 0x09 0x91 0x3B B3 OFF=00,ON=7F
FILTER (B ch) B ch(Right) Deck 0x0B 0xB1 0x13 CC19 00(min)...40(center)...7F(max)
FILETR (A ch) A ch(Left) Deck 0x0B 0xB0 0x13 CC19 00(min)...40(center)...7F(max)
CROSS FADER CROSS F. or FX PARAM. [RIGHT SCRATCH]
= ON
0x0B 0xB1 0x10 CC16 [LEFT SCRATCH]
= ON
0x0B 0xB0 0x10 CC16 00 (min)...7F (max)
FX PARAMETER CROSS F. or FX PARAM.
[RIGHT SCRATCH]
= ON
0x0B 0xB1 0x14 CC20
[LEFT SCRATCH]
= ON
0x0B 0xB0 0x14 CC20 00 (min)...7F (max)
MASTER MASTER VOLUME 0x0B 0xB1 0x11 CC17 00(min)...40(center)...7F(max)
HEADPHONE HEADPHONE VOLUME 0x0B 0xB0 0x12 CC18 00(min)...40(center)...7F(max)
: [SHIFT] Button
