FOX HD-SDI • Installation and Operation
Installation and Operation, cont’d
2-8 FOX HD-SDI • Installation and Operation 2-9
3 . Use the two included tie wraps to strap the power supply
to one of the brackets.
N The PMK 300 has a hole in the bottom plate that allows the
projector pole to be inserted through the center of the plate
(figure 2-6), rather than outside of the plate (figure 2-5).
To install the PMK 300 in this configuration, slide the
bracket up from the bottom of the pole before the projector
is installed on the pole.
U-Bolt Extron
PMK 300
Multi-product Projector
Mount Kit
Bracket
Brace

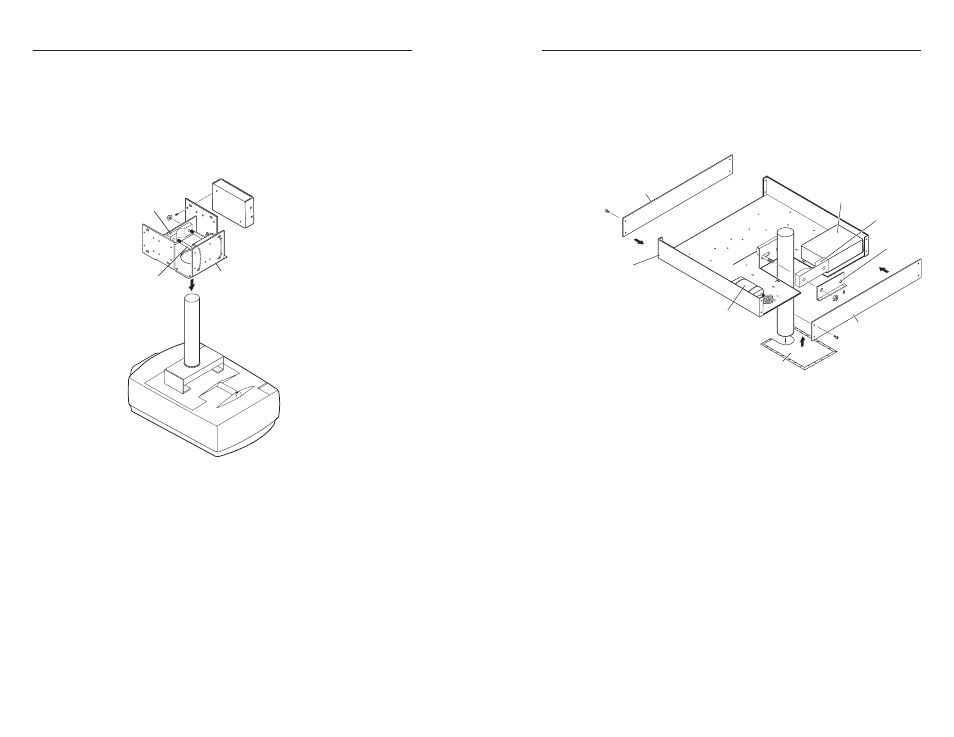

Figure 2-6 — Projector pole on the inside
4 . Place the contoured bracket brace against the pole and
opposite the back plate. The pole should fit snugly into the
depression in the center of the bracket brace.
5 . Place the U-bolt around the ceiling pole and insert the
two legs of the U-bolt through the round holes on the
contoured bracket brace and then through the slotted holes
on the bracket’s mounting plate.
N The supplied U-bolt fits a typical (1.5" to 2.0" diameter)
ceiling pole.
6 . Secure the bracket to the U-bolt with the included hex
nuts, washers, and lock washers. Tighten the hex nuts just
enough that they can be loosened by hand.
PMK 350 mounting
Mount the transceiver to a PMK 350 bracket as follows:
1
. Remove the front and back plates from the PMK 350
(figure 2-7), using an Extron Tweeker or
a #2 Philips
screwdriver . Retain the screws to reattach the plates when
you are finished.
Extron
PMK 350
Multi-product Projector
Mounting Kit
Cover Sheet
Front Plate
Rear Plate
U-bolt
L-shaped
Bracket
Contoured
Base
Extron
Power Supply
Extron
Quarter-rack
Sized Product
Figure 2-7 — PMK 350 projector mounting a
transceiver
2 . If necessary, remove the feet from the bottom of the
receiver.
3 . Secure the transceiver to one side of the mounting tray,
using two of the supplied 4-40 x 3/16" screws in opposite
(diagonal) corners.
4 . Use the two included tie wraps to strap the power supply
to the bracket.
5 . Place the PMK 350 around the projector ceiling mounting
pole (figure 2-7, above).
