FOX HD-SDI • Installation and Operation
Installation and Operation, cont’d
2-4 FOX HD-SDI • Installation and Operation 2-5
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf
1/4 Rack Width
Front False
Faceplate
1/2 Rack Width
Front False
Faceplate
Both front false faceplates
use 2 screws.

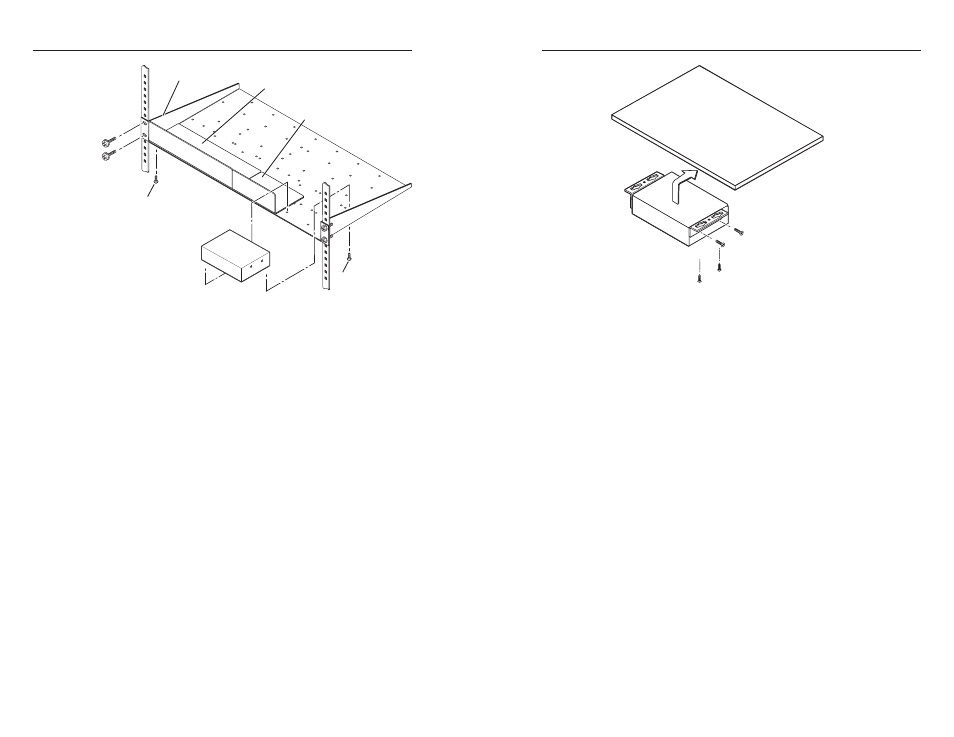

Figure 2-2 — Mounting the transceiver on a standard
rack shelf
5 . Secure the shelf to the rack using the supplied machine
screws.
Furniture mounting
The transceiver can be mounted under a horizontal surface using an
optional MBU 125 under-desk mounting kit (part #70-077-01).
Mount the unit under a desk or table as follows:
1
. If rubber feet were previously installed on the bottom of
the unit, remove them.
2 . Secure the under-desk mounting brackets to the
transceiver with the four machine screws provided in the
mounting kit (figure 2-3).
3 . Hold the transceiver with attached brackets against the
underside of the desk or other furniture. Mark the location
of holes for screws on the desk.
4 . Drill 1/4" (6.4 mm) deep, 3/32" (2 mm) diameter pilot
holes in the table or desk at the marked screw locations
from the underside or inside (the concealed side) of the
furniture, where the transceiver will be located.
5 . Insert the four wood screws into the pilot holes. Fasten
each screw into the installation surface until just less than
1/4" of the screw head protrudes.
Figure 2-3 — Under-desk mounting
6 . Align the installed screws with the slots in the mounting
brackets, and place the transceiver against the surface,
with the screws through the bracket slots.
7 . Slide the transceiver slightly forward or back, then tighten
all four screws to fasten it in place.
