Configuring the Print Server and Installing Software for Ad Hoc Mode 15
Configuring the Print Server and
Installing Software for Ad Hoc Mode
Follow the instructions in this section to set up the CX9475Fax for Ad Hoc mode.
1. Plug the included USB cable into the print server and your all-in-one.
2. Plug one end of the included Ethernet cable into your computer. Then plug
the other end into the Ethernet port on the print server.
3. Plug the print server power adapter into the print server and an electrical
outlet.
4. Make sure your all-in-one is plugged in and turned on.
5. Configure your computer with a static IP address of 192.168.2.xxx (where xxx
is any number between 3 and 254).
6. Open a web browser and type 192.168.2.2 into the address bar.
7. Log into the print server using admin as the User name and 1234 as the
Password.

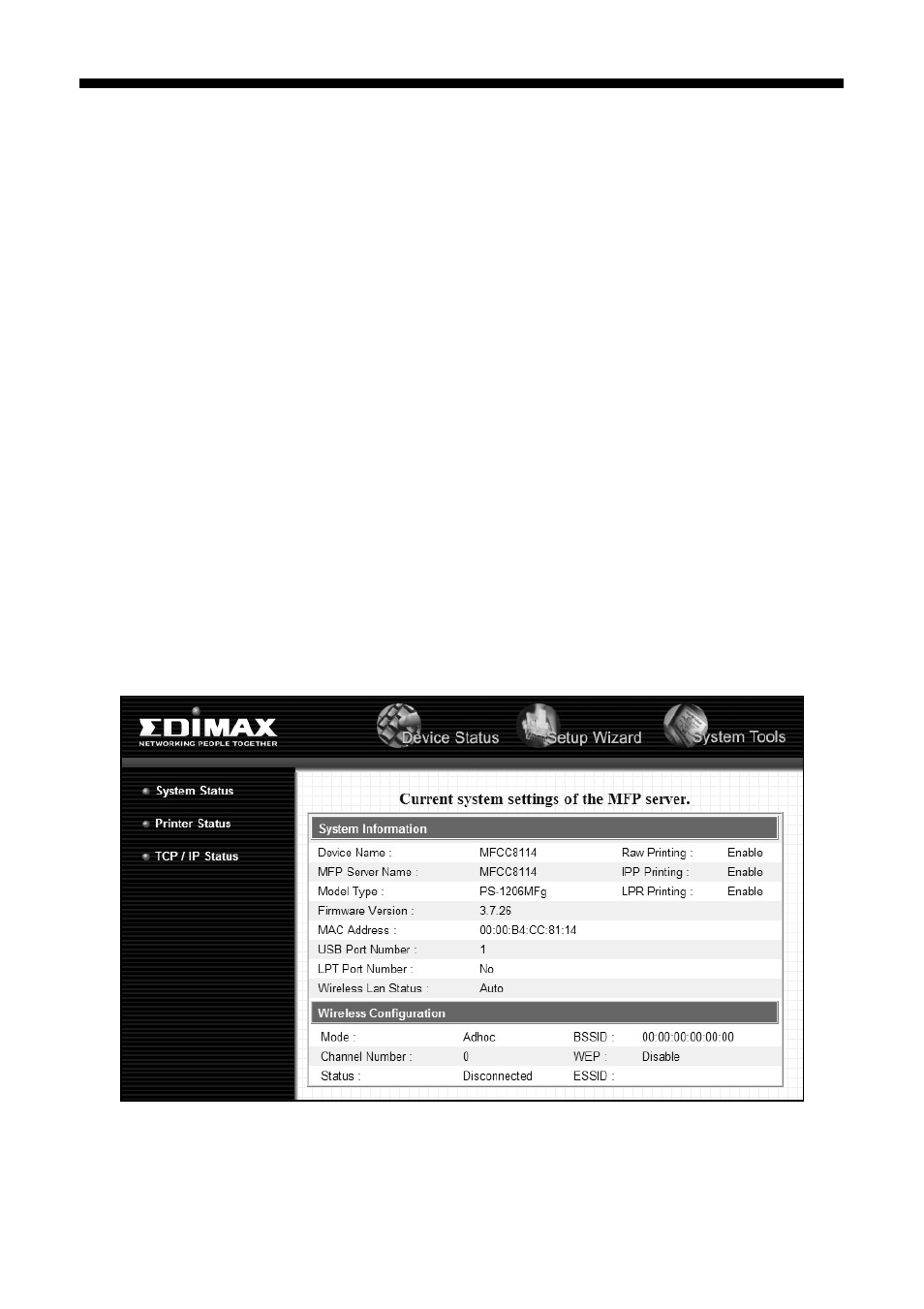

You see a screen like this one:
8. Select Setup Wizard from the navigation bar at the top.
