Antenna Installation 3-3
Verify Component Connector Polarity

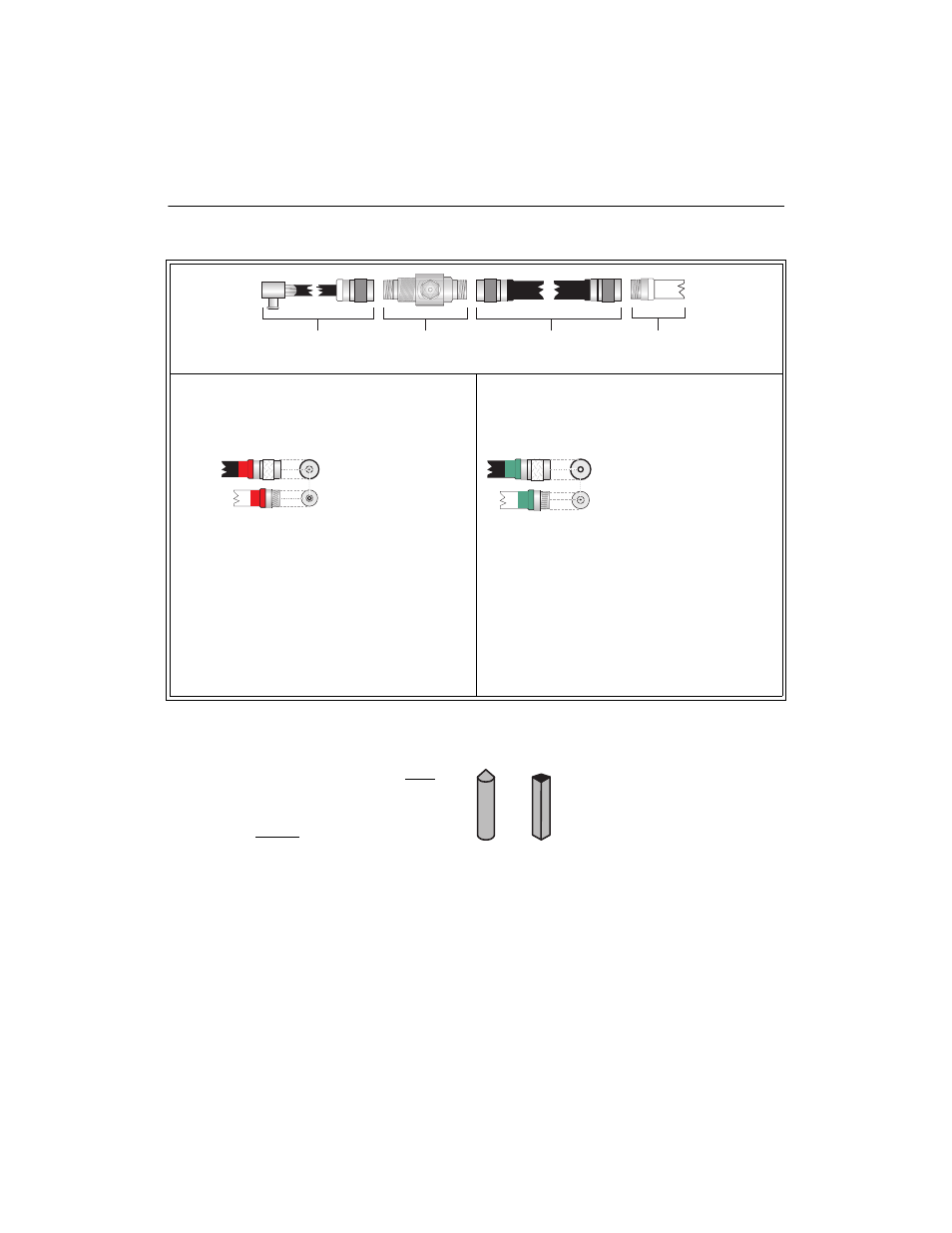

Figure 3-1: Selecting the Correct N-Type Connector
The term Male or Female does not refer to the connector thread, but to its center pin.
If you purchase individual components, make sure you specify the correct N-Type
connectors to match the configuration that applies to your country.
ETSI Countries: France, Spain, and
Japan.
Asia Pacific FCC and ETSI. FCC Countries.
A 1 - PC Card connector 1 - PC Card connector
2 - Standard-N Male 2 - Reverse Polarity-N Female
B Standard-N Female on both ends Reverse Polarity-N Male on both ends
C Standard-N Male on both ends Reverse Polarity-N Female on both ends
D Standard-N Female Reverse Polarity-N Male
• Male connectors have a solid
center pin
• Female connectors have a
hollow center pin
Lightning
Protector
(B)
Low-Loss
Cable
(C)
2 1
Pigtail
Connection
(A)
Antenna
Cable
(D)
Standard-N Male
Standard-N Female
Reverse Polarity-N Female
Reverse Polarity-N Male
Male Female
