OPERATION
EATON Powerware ® 5130 Rack/Tower UPS (1250–3000 VA) User’s Guide S 164201730 Rev 2
www.powerware.com
37
Operating Modes
The Powerware 5130 front panel indicates the UPS status through the
UPS indicators. Figure 17 shows the UPS front panel indicators and
controls.
Battery Charge Level
Indicators
1
2
On/Off Button
Load Not Protected
Indicator
Downgraded Operation Indicator
Normal Mode Indicator
Lit
Flashing
Unlit
Indicator Legend
Load Level Indicators

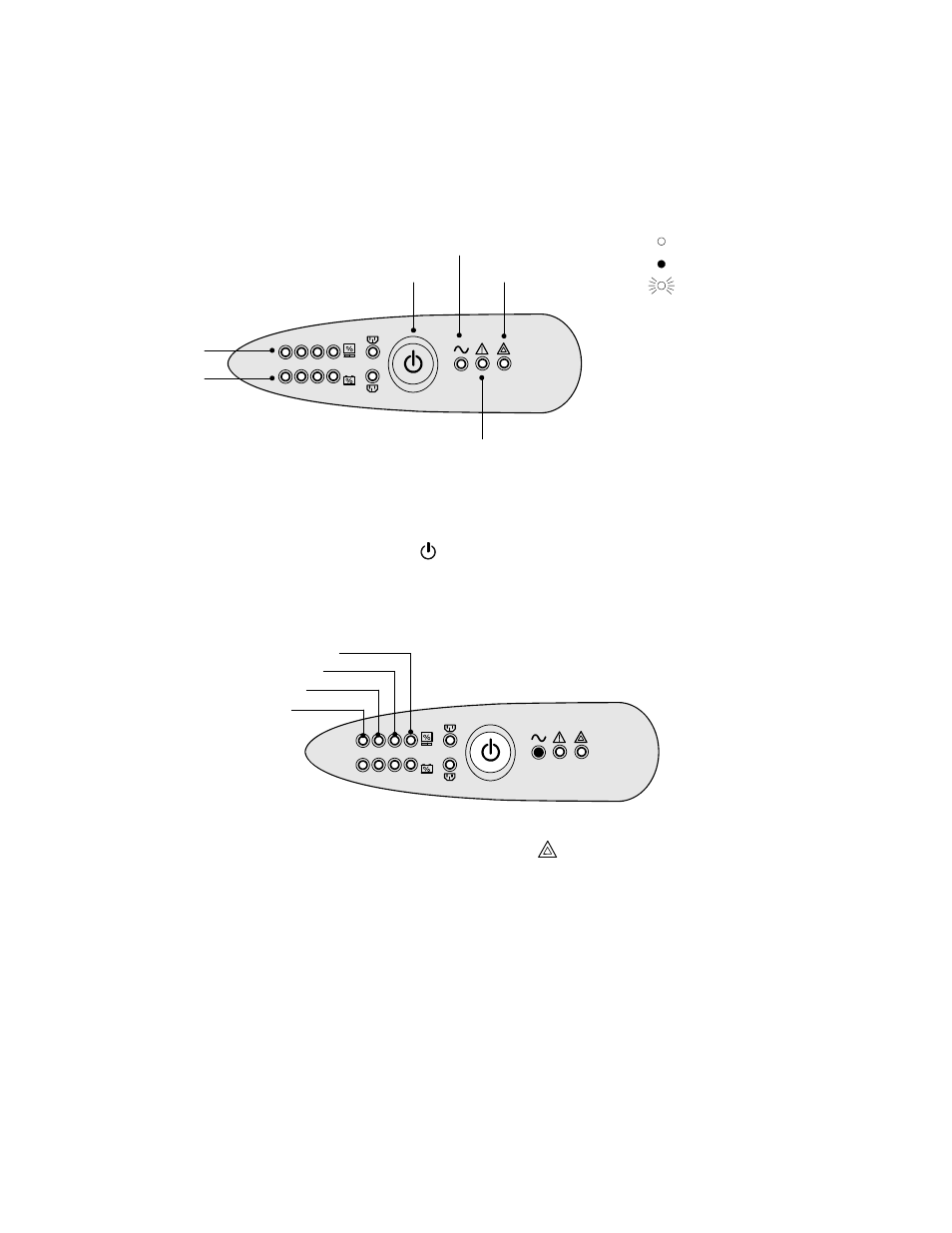

Figure 17. UPS Front Panel
Normal Mode
During Normal mode, the button and the
μ
indicator illuminate and
the front panel displays the percentage of UPS load capacity being used
by the protected equipment (see Figure 18). The UPS monitors and
charges the batteries as needed and provides power protection to your
equipment.
1
2
0-25%
26-50%
51-75%
76-100%
Figure 18. Load Level Indicators
When all of the bar graph indicators and the indicator are illuminated,
power requirements exceed UPS capacity; see page 58 for more
information.
