INSTALLATION
EATON Powerware ® 5130 Rack/Tower UPS (1250–3000 VA) User’s Guide S 164201730 Rev 2
www.powerware.com
31
RPO and ROO Installation
The Powerware 5130 includes a two-position terminal (see Figure 11)
that can be either left closed or configured one of two ways:
S RPO: Allows a remote contact to be used to disconnect all equipment
connected to the UPS. Restarting the UPS requires manual
intervention.
S ROO: Allows remote action of the button to shut down the UPS.
RPO
ROO

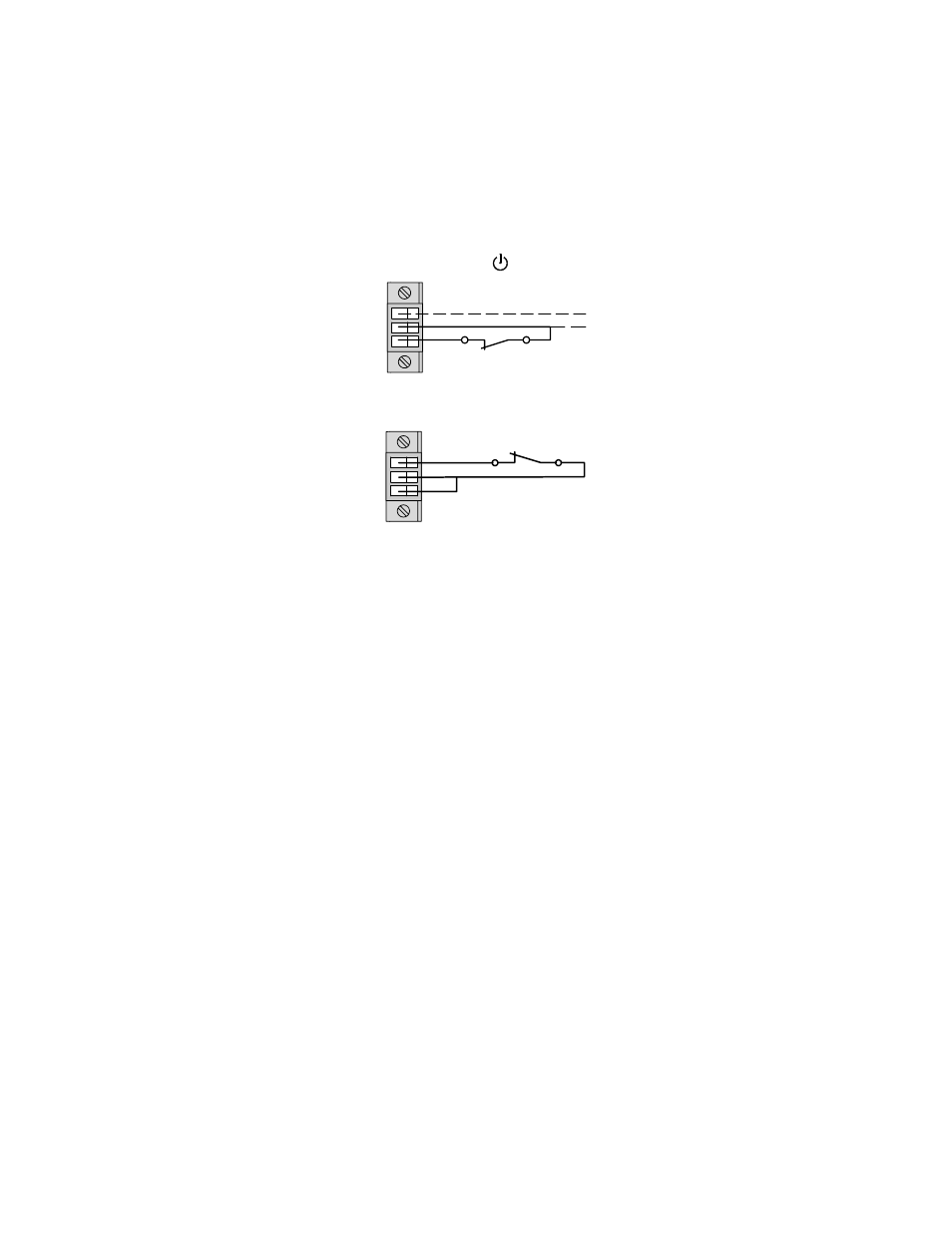

Figure 11. RPO/ROO Connection
