Gpio, Db-15 connector 1 (top), Db-15 connector 2 (upper middle) – Logitek Electronic Systems JetStream Audio Networking Platform User Manual

Page 48: Db-15 connector 3 (lower middle), Db-15 connector 4 (bottom)

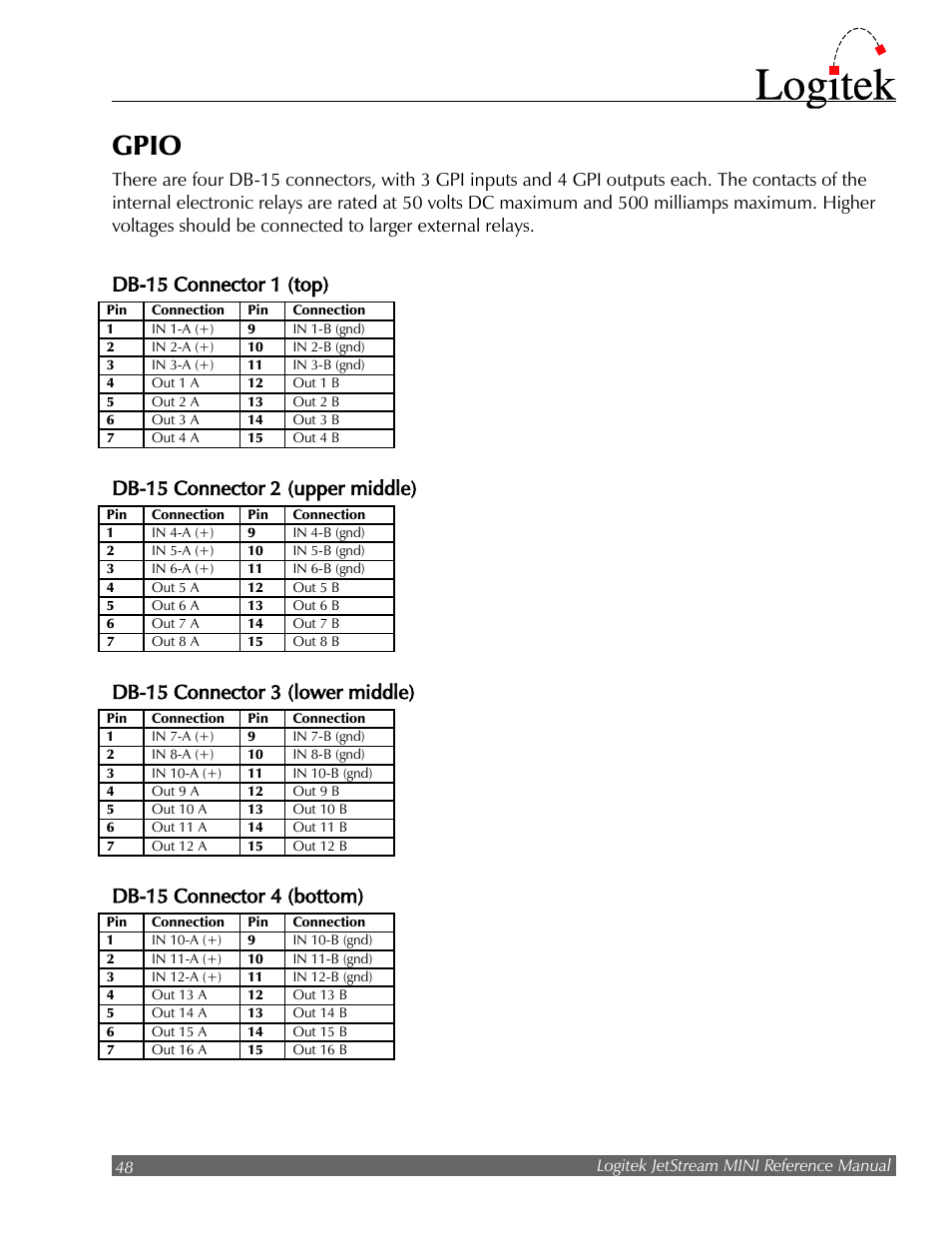

Gpio, Db-15 connector 1 (top), Db-15 connector 2 (upper middle) | Db-15 connector 3 (lower middle), Db-15 connector 4 (bottom) | Logitek Electronic Systems JetStream Audio Networking Platform User Manual | Page 48 / 55 Gpio, Db-15 connector 1 (top), Db-15 connector 2 (upper middle) | Db-15 connector 3 (lower middle), Db-15 connector 4 (bottom) | Logitek Electronic Systems JetStream Audio Networking Platform User Manual | Page 48 / 55
