Using the boards as a design reference, In closing, Usb host interface board schematic – Linx Technologies MDEV-xxx-ES User Manual

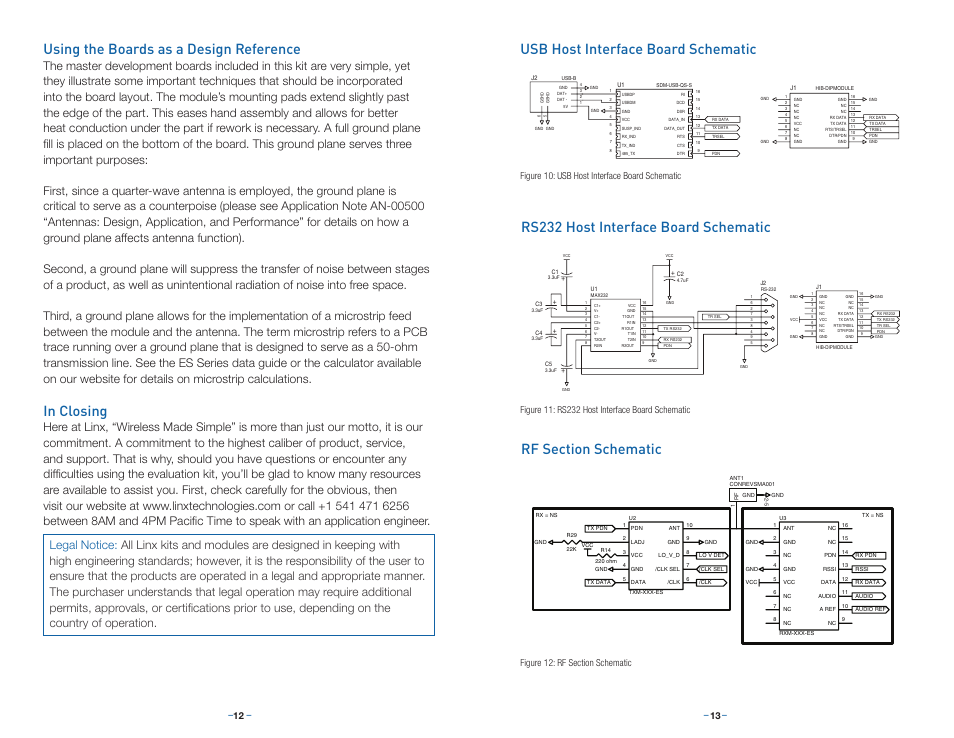

Page 9: Rs232 host interface board schematic, Rf section schematic, Figure 10: usb host interface board schematic
