C o n f i g u r a t i o n a n d O p e r a t i o n
Operator Instructions blueplanet XP10U H4 / H6 and XP10U H4 / H6 PSD Page 11
Saving changed settings
 Press the OK key.
3.2 Initial start-up
When started for the fi rst time, the inverter displays the confi guration assistant. It takes you through the settings neces-
sary for the initial start-up.
NOTICE
After successful completion of the confi guration, the confi guration assistant does not appear again when
the inverter is restarted. You can then change the country setting only in the password-protected param-
eter menu. The other settings can still be changed in the confi guration menu.
NOTICE
The sequence of the settings required for initial start-up is preset in the confi guration assistant.
Initial confi guration
 In order to select a setting, press the up and down keys.
 To select the next menu item, press the OK key.
 To return to the most recently selected menu item, press the ESC key.
 Carry out the required settings.
Press the OK key in the last menu item.
» You have completed the initial confi guration. The inverter begins to operate.
3.3 Menu structure
3.3.1 Display on the LCD
1
3
4
2

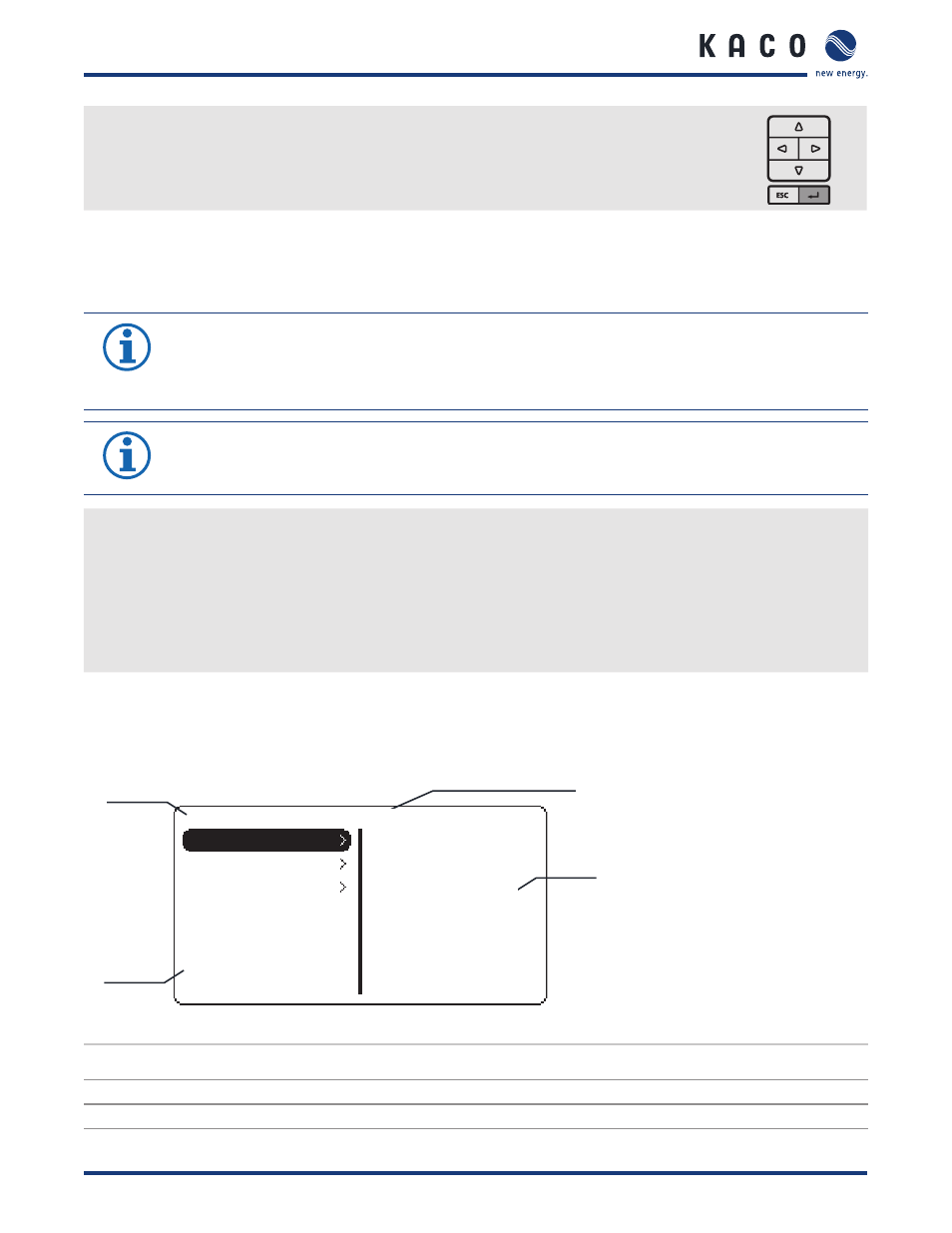

Figure 20: Main menu
Key
1 Display of the menu level (0, 1, 2, 3) 3 Active menu (example: main menu)
2 Designation of the active menu 4 Menu items of the next lower menu level
Settings
Information
Vendor
Main menu
Measurements Generator
Grid
Unit temperature
Yield counter
Yield today
Total yield
CO2 savings
