Page 10
-10-

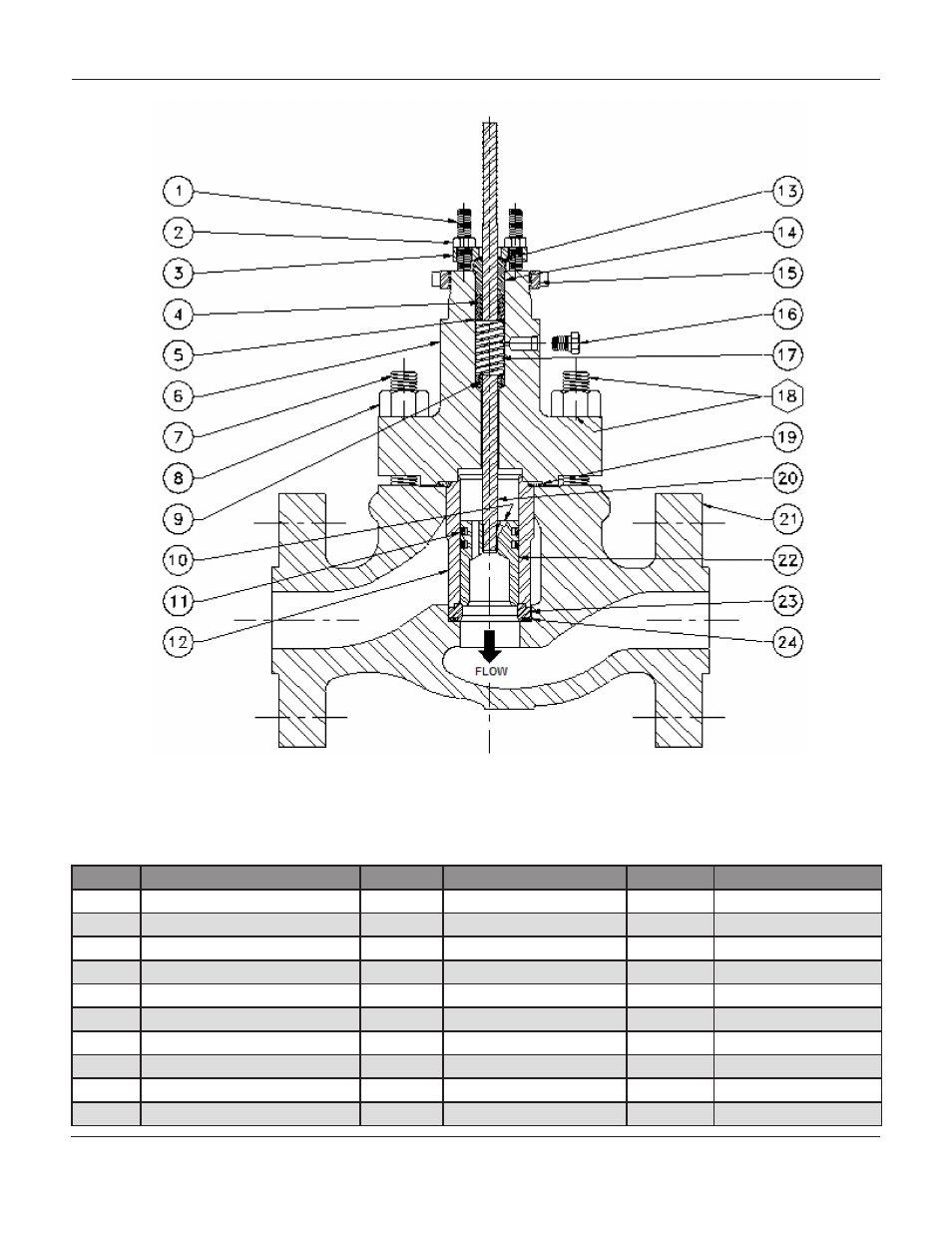

Figure 5- 2" Mark HPX2 Valve
Key
Description
Key
Description
Key
Description
1
Packing Flange Stud
11
Piston Ring
21
Body
2
Packing Flange Nut
12
Cage
22
Valve Plug
3
Packing Flange
13
Upper Wiper Felt
23
Seat Ring
4
Packing Set (TFE or Graphoil)
14
Packing Follower
24
Seat Ring Gasket
5
Packing Washer
15
Yoke Lock Nut
25
Drive Screw
6
Bonnet
16
Pipe Plug
26
Flow Arrow
7
Bonnet Stud
17
Spring/Lantern Ring
27
Retaining Ring
8
Bonnet Hex Nut
18
Lubricant
28
Back Up Ring
9
Lower Wiper
19
Bonnet Gasket
29
Seal Ring
10
Groove Pin
29
Valve Stem
Parts Reference
M
ark
HPX
and
HPaX S
erieS
G
lobe
and
a
nGle
S
tyle
C
ontrol
V
alVeS
